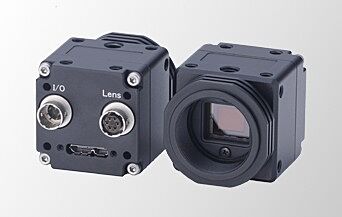

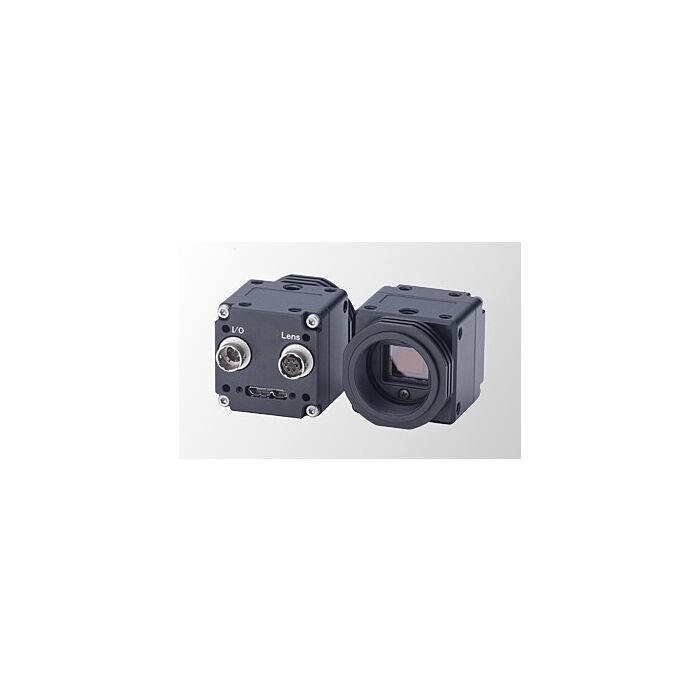

Omron STC-SCS122BU3V-LCNT – 12MP Sony IMX304 Color Global Shutter USB3 Vision Camera (LensConnect Compatible)
The Omron STC-SCS122BU3V-LCNT (STCSCS122BU3VLCNT) is a high-resolution 12MP color area scan camera built around the Sony IMX304 global shutter CMOS sensor. Delivering 4096 x 3000 resolution at up to 23.5 fps, this camera is designed for applications requiring accurate color imaging and distortion-free capture.
With USB3 Vision 1.0.1 interface support and compatibility with CBC’s LensConnect system, this model integrates easily into machine vision, inspection, and automation environments.
Its compact housing and C-mount configuration make it suitable for space-constrained industrial systems.
Key Features:
- 12MP resolution (4096 × 3000)
- Sony IMX304 color global shutter CMOS sensor
- 23.5 fps frame rate
- USB3 Vision 1.0.1 interface
- Compatible with CBC LensConnect lenses
- BayerRG color output formats
- IR cut filter for accurate color imaging
- 1.1" optical sensor format
- ROI and full scanning modes
- Wide exposure range (1.5 µs to 16,777 sec)
Industrial Applications:
- Machine Vision
- Color Inspection
- Metrology
- Robotics
- Semiconductor Inspection
- Automation Systems
Why Engineers Choose This Model
The STC-SCS122BU3V-LCNT delivers high-resolution color imaging with global shutter performance, making it ideal for applications that require both fine detail and accurate color reproduction.
The Sony IMX304 sensor provides excellent pixel density and imaging stability, while LensConnect compatibility simplifies lens integration in industrial environments. USB3 Vision support ensures flexible deployment across PC-based and embedded vision systems.
This camera is particularly effective for high-resolution color inspection and measurement tasks.
FAQ
What sensor does the STC-SCS122BU3V-LCNT use?
Sony IMX304 CMOS sensor.
Is this a color camera?
Yes, it outputs BayerRG color formats.
Is it global shutter?
Yes, it supports global shutter imaging.
What is the resolution?
12MP (4096 x 3000).
Is it compatible with LensConnect lenses?
Yes, it is compatible with CBC LensConnect lenses.
| Product Model | STC-SCS122BU3V-LCNT |
|---|---|
| Camera Type | Area Camera |
| Resolutions | 12MP |
| Color / Monochrome | Color |
| Effective Pixels | 4,096 (H) x 3,000 (V) |
| Frame Rate | 23.5 fps |
| Interface | USB3.0 |
| Protocol | USB3 Vision 1.0.1 |
| Power Supply | External power (+8.0 to +24 Vdc) |
| Power Consumptions | Less than 7.6 W (with LensConnect lens) |
| Operational Temperature | Lower limit: 0 deg. C (Environmental temperature) / Upper limit: +71 deg. C (Temperature sensor on camera) |
| Storage Temperature | Lower limit: -30 deg. C (Environmental temperature) / Upper limit: +70 deg. C (Environmental temperature) |
| Image Sensor | |
| Image Sensor | SONY IMX304 |
| Shutter Type | Global Shutter |
| Optical Size | 1.1" |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Mechanical | |
| Dimensions | 35 (W) x 35 (H) x 41.5 (D) mm |
| Weight | Approximately 80 g |
| Lens Mount | C Mount |
| Optical Filter | IR cut filter on it |
| Interface | |
| Connector | USB3.0 micro B x 1 |
| Power / Signal Connector | Power/IO: HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Lens | HR10A-7R-6S (Hirose) or equivalent x 1 |
| Functions | |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Pulse width trigger / Start stop trigger/ Free-run |
| Image Pixel Format | BayerRG8 / BayerRG10 / BayerRG12 / BayerRG10Packed / BayerRG12Packed |
| Exposure Time | 1.5 µseconds to 16,777 seconds |
| Analog Gain | 0 to 19.2 dB |
| Digital Gain | x1 to x2 |
| Gamma | 0.1 to 4.0 |
| Binning | N/A |
| Decimation | x2 horizontal and vertical individually / Off |
| Image Flip | Vertical flip / Horizontal flip / Vertical and horizontal flip / Off |
| Defective Pixel Correction | Up to 1,080 pixels |
| Save User Settings | Support (Eight settings) |
| White Balance | Auto exposure / Auto gain |
| FFC (Flat Filed Correction) Function | N/A |
| Auto Control Function | Auto / Manual / Push to set white balance |
| Chunk Function | Support |
| Event Function | Support |
| PTP Function (IEEE1588) | N/A |
