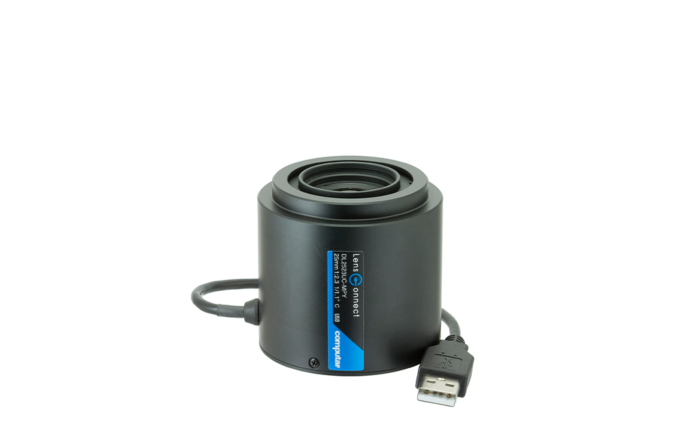

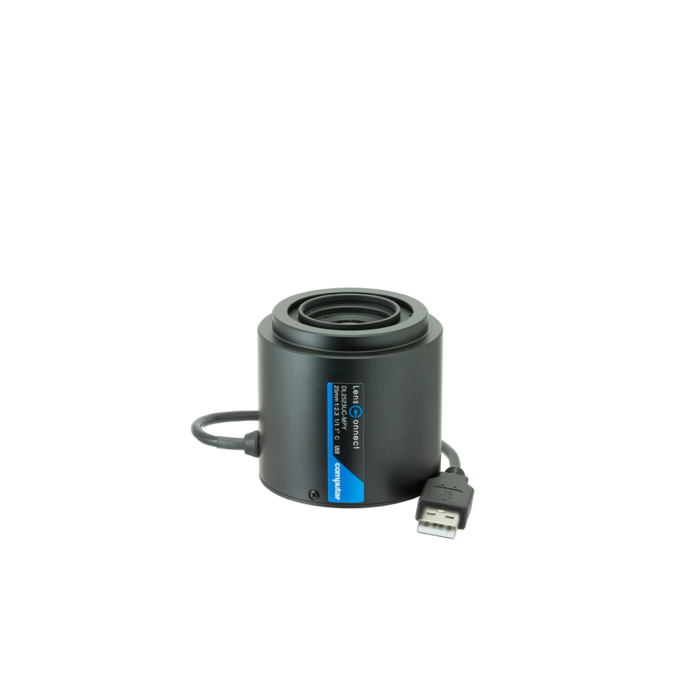

Computar DL2523UC-MPY 1/1.1”, 25mm, f2.3, 12MP, LensConnect (C-Mount) Lens

The Computar DL2523UC-MPY is a high-performance 12MP C-mount machine vision lens designed for precision imaging with large-format 1/1.1" sensors, including popular sensors like the Sony IMX183. Built for advanced industrial inspection and automation systems, this lens combines LensConnect USB control, P-Iris automation, and a floating focus optical design to deliver consistent, high-resolution image quality from near to far distances.

With its 25mm focal length and f/2.3 aperture, the DL2523UCMPY provides an ideal balance between field of view and light sensitivity, making it well-suited for applications requiring accurate detail capture, stable brightness control, and repeatable performance. The integrated stepper motor system enables precise, programmable control of focus and iris, eliminating manual adjustments and improving system consistency across deployments.

The LensConnect interface allows power and control over a single USB connection, simplifying integration into machine vision systems and reducing cabling complexity. Combined with Computar’s free control software, users can easily configure, adjust, and replicate lens settings for scalable, automated environments.

Key Features:

• 12 Megapixel Resolution
  Optimized for high-resolution sensors such as Sony IMX183 for detailed image capture in demanding inspection tasks.
• 1/1.1" Large Format Coverage
  Ensures full sensor utilization with minimal vignetting on modern high-resolution cameras.
• 25mm Focal Length, f/2.3 Aperture
  Balanced working distance and light intake for a wide range of industrial imaging applications.
• LensConnect USB Control
  Power, iris, and focus control through a single USB connection for simplified system design and integration.
• Remote P-Iris Adjustment
  Enables precise, automated exposure control for consistent brightness and depth of field across varying conditions.
• Floating Focus Optical Design
  Maintains sharpness and resolution from close-up to long working distances.
• Stepper Motor-Driven Control
  Provides high repeatability and fine control for focus and iris adjustments—ideal for automated systems.
• Software-Based Setup & Control
  Easy configuration using Computar’s free software for quick deployment and repeatable system calibration.

Applications:

• Machine vision inspection systems
• Semiconductor and electronics inspection
• Robotics and automation guidance
• Metrology and measurement systems
• High-resolution barcode and label inspection
• Pharmaceutical and medical device inspection
