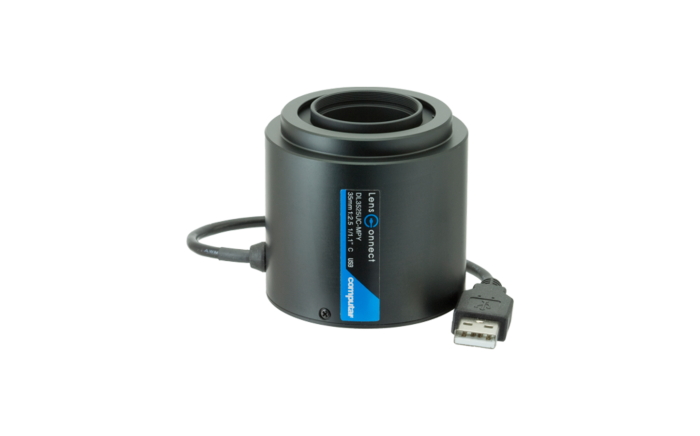

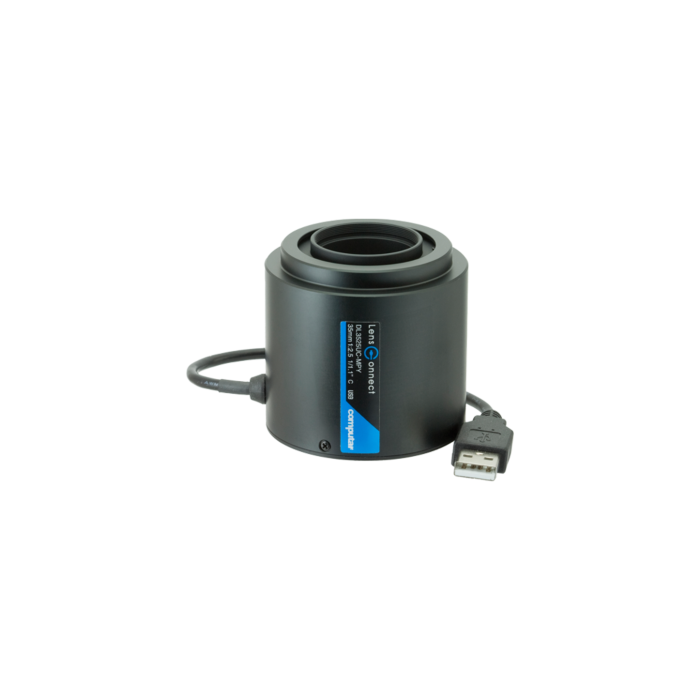

Computar DL3525UC-MPY 1/1.1”, 35mm, f2.5, 12MP, LensConnect (C-Mount) Lens

The Computar DL3525UC-MPY is a high-resolution 12MP LensConnect C-mount lens engineered for precision imaging in demanding machine vision and industrial inspection environments. Designed for 1/1.1” sensors, including compatibility with popular sensors like the Sony IMX183, this 35mm focal length lens delivers exceptional clarity, contrast, and edge-to-edge resolution across the entire image field.

Built with LensConnect technology, the DL3525UCMPY enables remote lens control via USB, allowing integrators to precisely adjust focus and iris settings without manual intervention. This makes it ideal for automated systems, hard-to-reach installations, and applications requiring repeatable, programmable optical adjustments.

The lens features a floating focus design, maintaining ultra-high resolution from close-up to long working distances. Combined with integrated stepper motors, it provides highly accurate positioning, consistent repeatability, and stable performance in dynamic or vibration-prone environments. The P-Iris (precision iris) ensures optimal exposure control, improving image quality in varying lighting conditions while minimizing distortion and maintaining sharpness.

With included free control software, setup and integration are straightforward, enabling fast deployment into machine vision systems, robotics, and inspection platforms.

Key Features:

• 12 Megapixel resolution optimized for high-detail imaging
• Supports 1/1.1” large-format sensors (IMX183 compatible)
• 35mm focal length with f/2.5 aperture for balanced working distance and light sensitivity
• LensConnect USB interface for remote focus and iris control
• P-Iris with precise electronic adjustment for consistent exposure
• Floating focus optical design ensures sharp imaging from near to infinity
• Stepper motor-driven control for high repeatability and accuracy
• Software-based setup and control for easy system integration

Typical Applications:

• Machine vision inspection systems
• Automated optical inspection (AOI)
• Robotics and guidance systems
• Metrology and measurement
• Industrial automation and quality control
• Intelligent traffic systems (ITS)
• Surveillance and high-resolution monitoring
