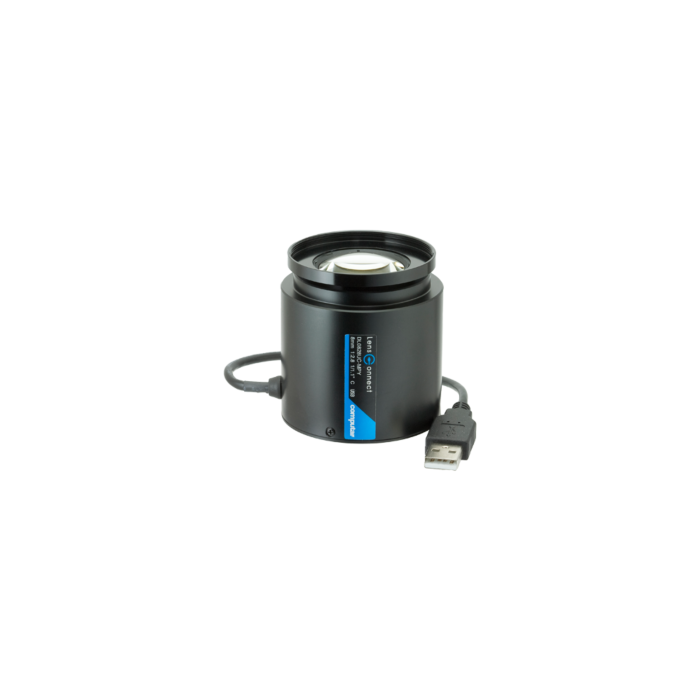

Computar DL0828UC-MPY 1/1.1”, 8mm, f2.8, 12MP, LensConnect (C-Mount) Lens
Computar DL0828UC-MPY 8mm F2.8 LensConnect motorized C-mount lens with USB 2.0 control for remote iris and focus adjustment. Designed for high-resolution machine vision imaging, this 1/1.1" format lens offers a wide field of view, low distortion, and precise motorized control for industrial inspection, automation, robotics, and vision system integration.
The Computar DL0828UC-MPY is a high-performance 8mm fixed focal length LensConnect lens designed for 12MP machine vision systems requiring precise, repeatable control and consistent image quality. Built for 1/1.1” sensors such as the Sony IMX183, this lens delivers excellent resolution, low distortion, and stable performance across a wide range of working distances.
Featuring LensConnect USB control, the DL0828UCMPY enables remote adjustment of focus and P-Iris, eliminating manual tuning and allowing seamless integration into automated inspection, robotics, and embedded vision systems. Its floating focus design maintains sharpness from near to far, while integrated stepper motors ensure highly repeatable positioning—ideal for applications requiring consistent setup across multiple units or production lines.
Key Features:
- 12 Megapixel Resolution
Optimized for high-resolution imaging with excellent contrast and edge clarity. - 1/1.1” Sensor Compatibility (IMX183 Support)
Designed for large-format sensors to maximize field of view and pixel utilization. - 8mm Fixed Focal Length, f/2.8 Aperture
Wide-angle coverage with balanced light sensitivity for industrial environments. - LensConnect USB Control Interface
Enables remote control of focus and iris via software—ideal for automated systems. - P-Iris with Remote Adjustment
Precise exposure control improves depth of field and image consistency. - Floating Focus Optical Design
Maintains high resolution across varying object distances. - Integrated Stepper Motors
Delivers accurate, repeatable focus positioning for multi-camera deployments. - USB-Powered Operation
Simplifies installation by combining power and control into a single connection. - Free Control Software Included
Easy setup, configuration, and tuning without specialized hardware.
Typical Applications:
- Machine vision inspection systems
- Robotics and automation guidance
- Semiconductor and electronics inspection
- Industrial metrology and measurement
- Logistics and barcode reading systems
- Embedded vision and AI imaging platforms
| Model No. | DL0828UC-MPY |
|---|---|
| Focal Length | 8mm |
| Iris Operation Range | F2.8 - F16.0 |
| Focus Operation Range | 0.1m - Infinity |
| Effective Lens Aperture | Front: φ31.2mm / Rear: φ12.9mm |
| Back Focal Length | 13.0mm (In Air) |
| Flange Back Length | 17.526mm (In Air) |
| Maximum Image Circle | φ14.4mm |
Object Dimension at M.O.D.
| Sensor Format | Object Dimension |
|---|---|
| 1/1.1 Type | 155.6mm x 113.0mm |
| 2/3 Type | 121.2mm x 90.2mm |
| 1/1.8 Type | 98.6mm x 73.5mm |
Distortion
| Sensor Format | Distortion |
|---|---|
| 1/1.1 Type | 0.0% |
| 2/3 Type | -1.6% |
| 1/1.8 Type | -1.7% |
Angle of View
| Sensor Format | Sensor Size | Diagonal | Horizontal | Vertical |
|---|---|---|---|---|
| 1/1.1 Type | 11.22mm x 8.22mm (φ13.9mm) | 80.4° | 69.4° | 53.8° |
| 2/3 Type | 8.8mm x 6.6mm (φ11.0mm) | 68.3° | 57.0° | 44.1° |
| 1/1.8 Type | 7.2mm x 5.4mm (φ9.0mm) | 58.1° | 47.8° | 36.6° |
DL0828UC-MPY Mechanical & Electrical Specifications
| Control Interface | USB2.0 |
|---|---|
| Power Mode | Bus powered (500mA) |
| Connector | USB Type A |
| Operating Temperature | -20°C to +60°C |
| Iris Control | Motorized |
| Focus Control | Motorized |
| Dimensions | As per the attached drawing |
| Mount | C-Mount |
| Weight | 178g |
| Tripod Screw | - |
| Filter Thread | M52 x P0.75mm |
| IRCF Switcher | - |
