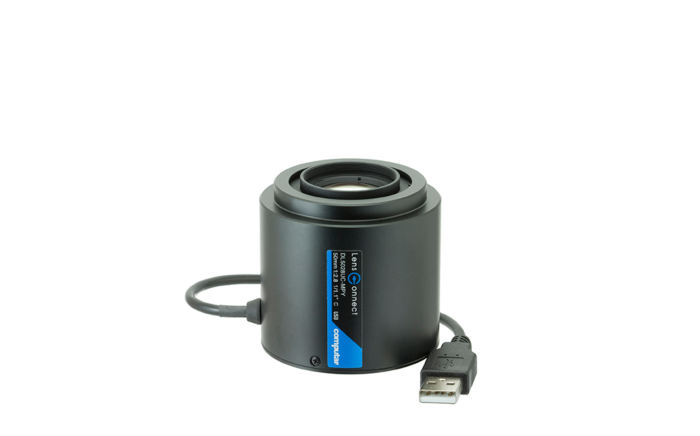

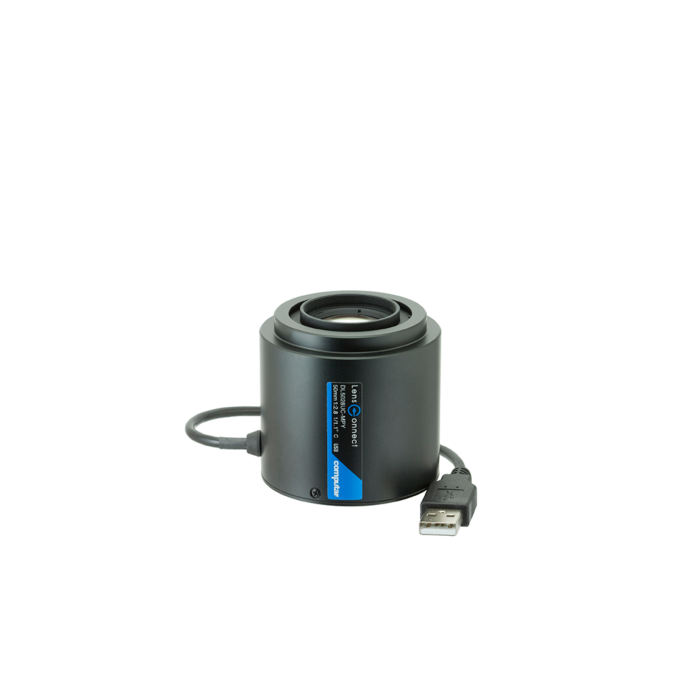

Computar DL5028UC-MPY 1/1.1”, 50mm, f2.8, 12MP, LensConnect (C-Mount) Lens
The Computar DL5028UC-MPY is a high-performance 50mm C-mount LensConnect lens engineered for precision machine vision and industrial imaging applications requiring long working distances and exceptional image clarity. Designed to support up to 12MP resolution and optimized for 1/1.1” sensor formats, this lens pairs effectively with modern high-resolution sensors such as the Sony IMX183, delivering sharp, low-distortion imaging across the entire field.
With a 50mm focal length, the DL5028UC-MPY is ideal for applications that demand narrow field-of-view imaging, detailed inspection, and accurate measurement at extended distances. The fast f/2.8 aperture enables strong light-gathering performance, supporting stable imaging in controlled or lower-light environments without sacrificing resolution.
This lens is part of Computar’s advanced LensConnect series, featuring USB-powered control and remote configuration, allowing users to precisely adjust focus and iris settings without manual intervention. The integrated P-Iris system ensures consistent exposure and optimal depth of field, making it well-suited for automated and repeatable inspection systems.
A floating focus optical design maintains high resolution from near to far distances, minimizing aberrations and preserving edge-to-edge sharpness. Combined with precision stepper motors, the lens delivers highly repeatable positioning, enabling consistent results in applications requiring fine adjustments and automated calibration.
The DL5028UCMPY is designed for easy system integration, with plug-and-play setup via dedicated control software, reducing installation time and simplifying deployment in complex imaging systems.
Key Features:
- Supports 12MP high-resolution imaging for detailed inspection
- Optimized for 1/1.1” sensors (compatible with Sony IMX183)
- 50mm focal length for long-distance, narrow field-of-view applications
- Fast f/2.8 aperture for improved light sensitivity
- LensConnect USB control for remote focus and iris adjustment
- P-Iris technology for precise exposure and depth control
- Floating focus design ensures sharp imaging from near to far
- Stepper motor control for high precision and repeatability
- Software-based setup for quick integration and configuration
Typical Applications:
- Long-range industrial inspection
- Precision measurement and metrology
- Robotics and automation vision systems
- Semiconductor and electronics inspection
- Intelligent transportation and ITS imaging
- Surveillance and high-detail monitoring systems
