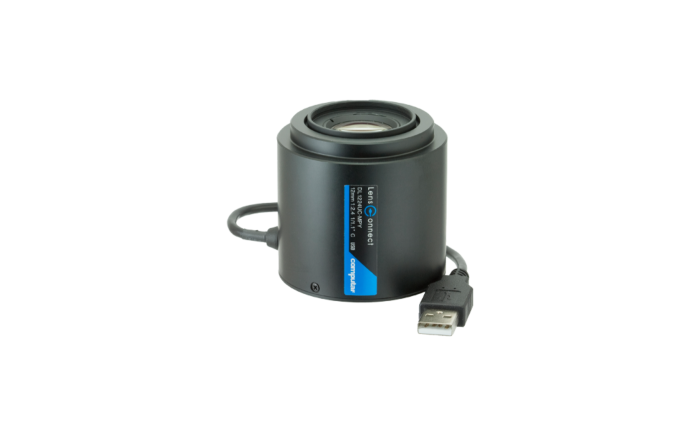

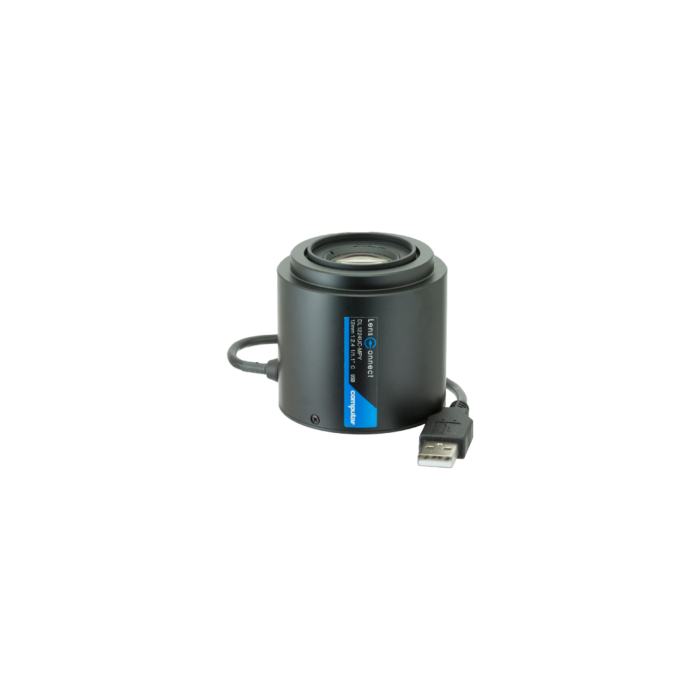

Computar DL1224UC-MPY 1/1.1”, 12mm, f2.4, 12MP, LensConnect (C-Mount) Lens
The Computar DL1224UC-MPY is a high-performance 12MP C-mount lens designed for precision machine vision and industrial imaging applications requiring consistent, repeatable focus and remote adjustability. Optimized for 1/1.1" sensors, including the Sony IMX183, this lens delivers sharp, high-contrast images across the entire field, making it ideal for inspection, measurement, and automation systems.
Featuring LensConnect technology, the DL1224UCMPY enables USB-powered control of focus and iris, eliminating manual adjustments and allowing seamless integration into automated or remote systems. The built-in P-Iris with remote adjustment ensures accurate exposure control in dynamic lighting conditions, improving image consistency across production environments.
A floating focus design maintains high resolution from close-range to infinity, minimizing optical aberrations and ensuring edge-to-edge clarity. Combined with precision stepper motors, the lens provides highly repeatable positioning—critical for applications such as robotic vision, metrology, and multi-camera synchronization.
Key Features:
- 12MP resolution optimized for high-detail imaging and inspection
- Designed for 1/1.1" sensors (compatible with Sony IMX183 and similar)
- 12mm focal length with f/2.4 aperture for balanced field of view and light sensitivity
- LensConnect (USB control) for remote focus and iris adjustment
- P-Iris control for precise, automated exposure management
- Floating focus optical design ensures consistent sharpness from near to far distances
- Stepper motor-driven adjustments for high repeatability and precision control
- Reduces manual calibration time in automated systems
- Easy integration via free control software
Applications:
- Machine vision inspection systems
- Factory automation & quality control
- Robotics and pick-and-place systems
- Metrology and measurement
- Intelligent transportation systems (ITS)
- Surveillance and high-resolution monitoring
| Model No. | DL1224UC-MPY |
| Series | LensConnect Series |
| Lens Type | Motorized Control Fixed-Focal Lens |
| Focal Length | 12mm |
| Maximum Aperture | F2.4 |
| Iris Range | F2.4 - F16.0 |
| Focus Range | 0.1m - Infinity |
| Maximum Sensor Format | 1/1.1" Type |
| Recommended Camera Resolution | 12 Megapixel |
| Mount | C-Mount |
| Maximum Image Circle | Φ14.4mm |
| Effective Lens Aperture | Front: Φ21.8mm / Rear: Φ14.2mm |
| Back Focal Length | 14.6mm in air |
| Flange Back Length | 17.526mm in air |
| Distortion | 1/1.1" Type: -0.1% / 2/3" Type: -1.0% / 1/1.8" Type: -1.0% |
| Object Dimension at M.O.D. | 1/1.1" Type: 100.6mm x 73.0mm / 2/3" Type: 78.3mm x 58.4mm / 1/1.8" Type: 63.8mm x 47.6mm |
| Angle of View - 1/1.1" Type | D: 60.2° / H: 50.5° / V: 38.1° |
| Angle of View - 2/3" Type | D: 49.7° / H: 40.6° / V: 31.0° |
| Angle of View - 1/1.8" Type | D: 41.5° / H: 33.6° / V: 25.5° |
| Control Interface | USB 2.0 |
| Power Mode | Bus powered, 500mA |
| Connector | USB Type-A |
| Lens Control | Motorized iris and motorized focus |
| Operating Temperature | -20°C to +60°C |
| Weight | 163g |
| Tripod Screw | - |
| Filter Thread | M35.5 x P0.5mm |
| IRCF Switcher | - |
