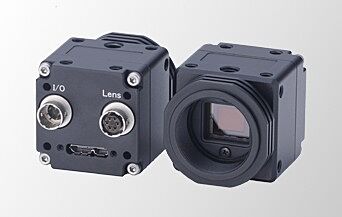

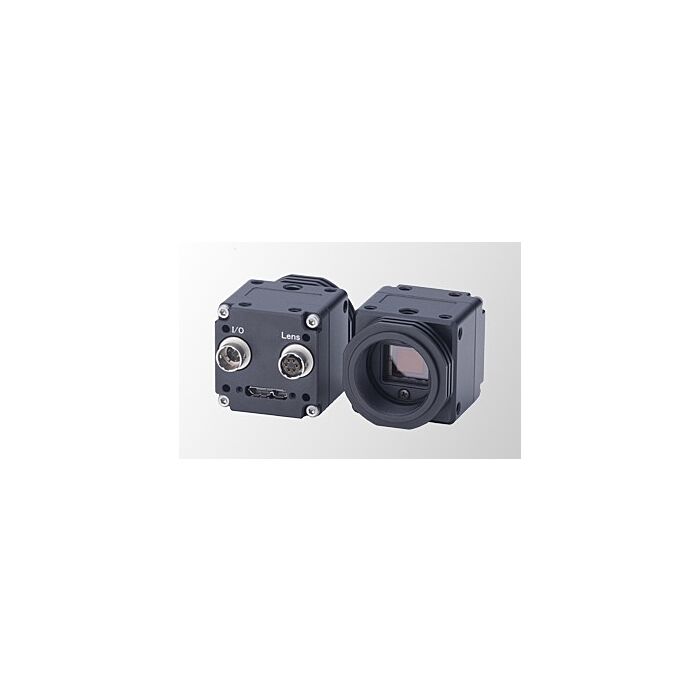

Omron STC-SBS122BU3V-LCNT – 12MP Sony IMX304 Global Shutter USB3 Vision Camera (LensConnect Compatible)
The Omron STC-SBS122BU3V-LCNT is a high-resolution 12MP area scan camera built around the Sony IMX304 global shutter CMOS sensor. Delivering 4096 x 3000 resolution at up to 23.5 fps, this camera is designed for applications requiring detailed image capture and distortion-free performance.
With USB3 Vision 1.0.1 interface support and compatibility with CBC’s LensConnect system, the STCSBS122BU3VLCNT is well suited for machine vision, inspection, metrology, and automation environments.
Its compact industrial housing and C-mount configuration allow seamless integration into existing vision systems.
Key Features:
- 12MP resolution (4096 × 3000)
- Sony IMX304 global shutter CMOS sensor
- 23.5 fps frame rate
- USB3 Vision 1.0.1 interface
- Compatible with CBC LensConnect lenses
- Monochrome output formats
- 1.1" optical sensor format
- ROI and full scanning modes
- Wide exposure range (1.5 µs to 16,777 sec)
- Compact 35 mm industrial design
Industrial Applications:
- Machine Vision
- High-Resolution Inspection
- Metrology
- Robotics
- Semiconductor Inspection
- Automation Systems
Why Engineers Choose This Model
The STC-SBS122BU3V-LCNT is built for applications where resolution and accuracy are critical. The Sony IMX304 sensor provides high pixel density with global shutter performance, ensuring precise capture of fine details without motion artifacts.
LensConnect compatibility simplifies lens integration and improves system reliability, while USB3 Vision support enables easy deployment in PC-based and embedded vision systems.
This camera is particularly well suited for inspection and measurement applications requiring high spatial resolution.
FAQ
What sensor does the STC-SBS122BU3V-LCNT use?
Sony IMX304 CMOS sensor.
What is the resolution of this camera?
12MP with 4096 x 3000 effective pixels.
Is this a global shutter camera?
Yes, it uses a global shutter for distortion-free imaging.
What interface does it use?
USB3.0 with USB3 Vision 1.0.1 protocol.
Is it compatible with LensConnect lenses?
Yes, it supports CBC LensConnect lenses.
| Product Model | STC-SBS122BU3V-LCNT |
|---|---|
| Camera Type | Area Camera |
| Resolutions | 12MP |
| Color / Monochrome | Monochrome |
| Effective Pixels | 4,096 (H) x 3,000 (V) |
| Frame Rate | 23.5 fps |
| Interface | USB3.0 |
| Protocol | USB3 Vision 1.0.1 |
| Power Supply | External power (+8.0 to +24 Vdc) |
| Power Consumptions | Less than 7.6 W (with LensConnect lens) |
| Operational Temperature | Lower limit: 0 deg. C (Environmental temperature) / Upper limit: +71 deg. C (Temperature sensor on camera) |
| Storage Temperature | Lower limit: -30 deg. C (Environmental temperature) / Upper limit: +70 deg. C (Environmental temperature) |
| Image Sensor | |
| Image Sensor | SONY IMX304 |
| Shutter Type | Global Shutter |
| Optical Size | 1.1" |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Mechanical | |
| Dimensions | 35 (W) x 35 (H) x 41.5 (D) mm |
| Weight | Approximately 80 g |
| Lens Mount | C Mount |
| Optical Filter | No optical filter |
| Interface | |
| Connector | USB3.0 micro B x 1 |
| Power / Signal Connector | Power/IO: HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Lens | HR10A-7R-6S (Hirose) or equivalent x 1 |
| Functions | |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Pulse width trigger / Start stop trigger/ Free-run |
| Image Pixel Format | Mono8 / Mono10 / Mono12 / Mono10Packed / Mono12Packed |
| Exposure Time | 1.5 µseconds to 16,777 seconds |
| Analog Gain | 0 to 19.2 dB |
| Digital Gain | x1 to x2 |
| Gamma | 0.1 to 4.0 |
| Binning | N/A |
| Decimation | x2 horizontal and vertical individually / Off |
| Image Flip | Vertical flip / Horizontal flip / Vertical and horizontal flip / Off |
| Defective Pixel Correction | Up to 1,080 pixels |
| Save User Settings | Support (Eight settings) |
| White Balance | N/A |
| FFC (Flat Filed Correction) Function | N/A |
| Auto Control Function | Auto exposure / Auto gain |
| Chunk Function | Support |
| Event Function | Support |
| PTP Function (IEEE1588) | N/A |
