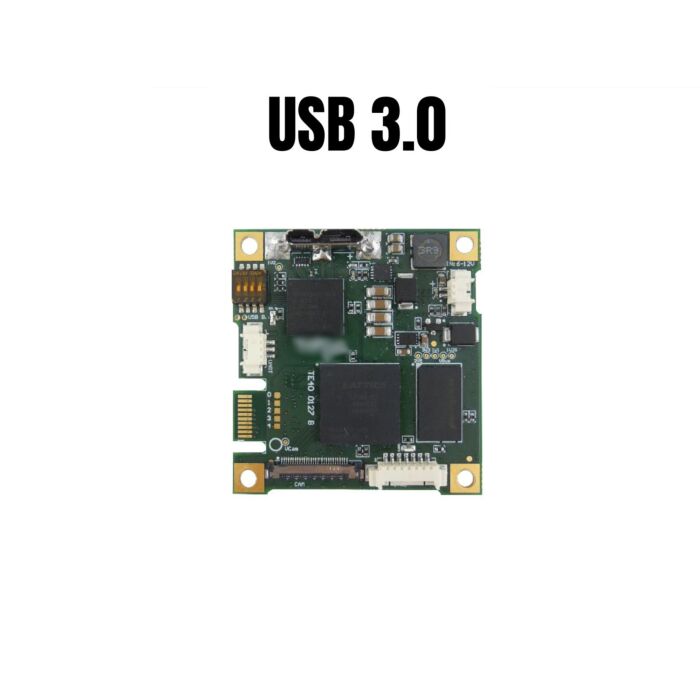

Aegis USB3-EV-60 USB 3.0 Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

The Aegis USB3-EV-60 is a compact video conversion device designed specifically for converting the native LVDS video signals from Sony FCB-EV9520L, FCB-EV9500L, and Tamron MP3010M-EV HD Block Cameras into a USB 3.0 format, enabling seamless integration with modern systems. Utilizing the high-speed USB 3.2 Gen 1 interface, it supports uncompressed HD video with resolutions up to 1080p60 for real-time streaming and high-quality image transfer. The device is UVC compliant for plug-and-play compatibility with both Windows and Linux operating systems and supports USB CDC for serial communication. Additionally, it features GPIO pins for keypad control and VISCA camera protocol support via UART or USB CDC for remote camera management.

Powering the device is flexible, with options for USB3 power or an external 6V-12VDC supply. Its digital video output is provided through a USB3 micro B-type connector, allowing easy connection to computers or industrial systems. Designed for a wide range of operating environments, the device supports an operating temperature range of 0°C to 60°C and is CE EMC compliant. With a compact form factor (48 x 45 x 11 mm) and weighing just 13 grams, the Aegis USB3-EV-60 is an ideal solution for high-demand applications in fields like security, medical imaging, and industrial automation.

Features:

• Super speed USB 3.2 Gen 1
• Uncompressed HD video
• Video resolution up to 1080p60
• USB Video Class (UVC) Compliant
• USB CDC (COM port / tty)
• GPIOs for keypad connection
• VISCA camera control via local UART
• Camera external power supply 6V-12VDC *
• Supports Windows and Linux OS

Applications:

• Surveillance and Security
• Medical Imaging
• Industrial Vision Systems
• Robotics and Automation
• Broadcast and Videography
• Quality Control and Inspection
