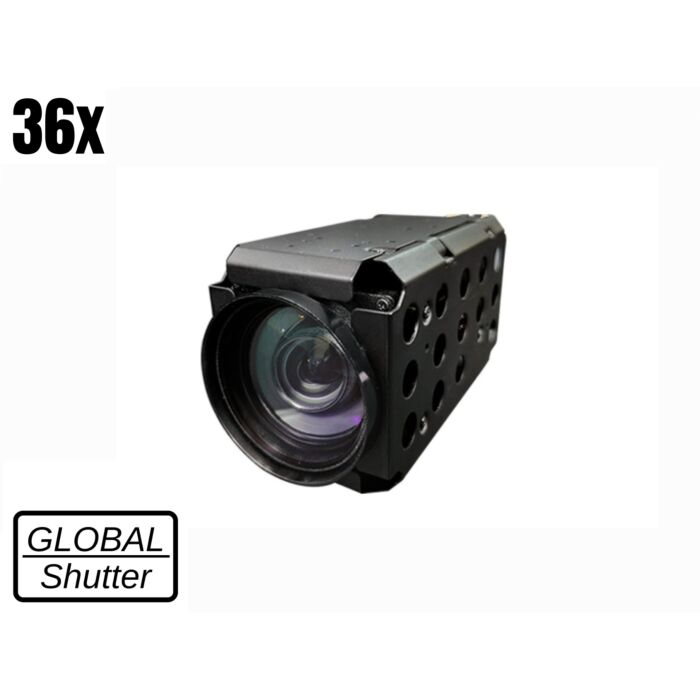

KT&C ATC-HZ5536W-LPN (ATCHZ5536WLPN) 3.19MP 36x Optical Zoom CCTV Camera with 1080P60 Video Output
The NDAA compliant KT&C ATC-HZ5536W-LPN is a high-performance surveillance camera featuring a 1/1.8" CMOS image sensor, delivering exceptional clarity with an effective pixel count of 3.19MP (2064 x 1544). It supports multiple video output modes, including LVDS, Parallel, and CVBS, achieving a maximum video resolution of 1080p at 60fps. This model is equipped with an AF optical zoom lens with a focal length of 6.0mm to 216mm and an impressive zoom ratio of 36x optical and 12x digital, ensuring detailed monitoring.
Designed for optimal performance in various lighting conditions, the camera has a minimum illumination of 0.1 Lux in day mode and 0.05 Lux in night mode. It incorporates advanced features such as Digital Image Stabilization, Wide Dynamic Range (WDR), and customizable privacy mask zones, all while maintaining a compact design (55.0mm x 64.0mm x 123mm) and lightweight structure (approx. 380g). Power consumption is efficient, with a maximum draw of 5.3W and an operating voltage of 12VDC (7V to 15VDC).
Features:
- 1/1.8" SONY Progressive Scan Global Shutter CMOS
- 3.19MP 2064(H) x 1544(V)
- 432x AF Zoom (36x Optical / 12x Digital)
- 1080P60
- Mechanical Day & Night
- True WDR
- 3D DNR, Defog
- UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
- Traffic
- Surveillance
- Military Applications
- Law Enforcement
- Border Patrol
- Monitoring
- Video Conferencing
- Low Vision Applications
| Image Sensor | 1/1.8" CMOS |
| Effective Pixels | 3.19MP 2064(H) x 1544(V) |
| Video Output Mode | LVDS / Parallel/ CVBS |
| Max. Video Resolution | LVDS/ Parallel : 1080p@60(50fps) |
| Synchronization System | Internal / External Option |
| Min. Illumination | Day Mode: 0.1Lux (F1.5) Night mode: 0.05Lux (F1.5/IR-cut filter on) DSS OFF, AGC45dB |
| S/N Rate | More than 52dB(AGC off, DSS off) |
| Lens | Type: AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length: f=6.0mm~216mm | |
| F-value: F1.5(W)~4.8(T) | |
| Angle of View: Horizontal 58.4°(W)~2.2°(T), Vertical 34.1°(W)~1.2°(T) | |
| Zoom Ratio | Optical 36x / Digital 12x |
| Focus Min.Working Distance | .1m(Wide) / 1.5m(Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Shot/Preset |
| AE mode | Auto/Shutter Priority/Iris Priority/Manual |
| Brightness | 0~14 |
| Manual Shutter | x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000 |
| Manual Iris | F1.6~F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable (Level: 0~29, Contrast: 0~5, Bright: 0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.48dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset |
| Language | English |
| UART | Remote: RS232 TTL +5.0V(+3.3V compatible) |
| Protocol: VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection | |
| Baud rate: 2400/4800/9600/19200/38400/57600/115200bps | |
| UTC | - |
| Supply Voltage | 12VDC(7V to 15VDC) |
| Power Consumption | Max.5.3W / Non-working zoom&focus 3.8W |
| Dimension(mm) | 55.0x64.0x123mm |
| Weight | Approx.380g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
