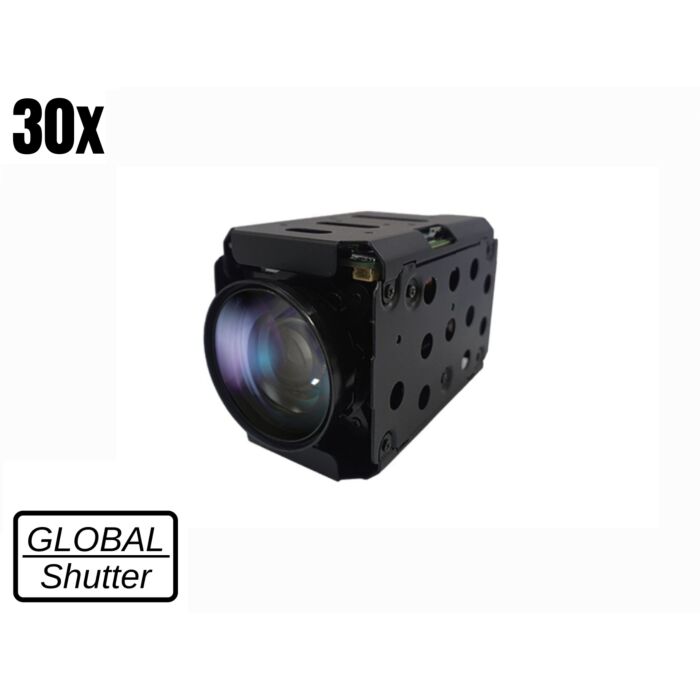

KT&C ATC-HZ5530T-LPN (ATCHZ5530TLPN) 1.58MP 1080P60 Global Shutter CMOS Camera with 30x Optical Zoom
The KT&C ATC-HZ5530T-LPN is an advanced surveillance camera featuring a 1/2.9” Progressive Scan Global Shutter CMOS sensor with an effective pixel count of 1.58MP (1456 x 1088). This camera supports multiple video output modes, including Common LVDS, Parallel, and CVBS, with a maximum video resolution of 1080P60, ensuring smooth and high-quality playback.
With a minimum illumination of 0.1Lux in day mode and 0.08Lux in night mode (with IR-cut filter), the ATC-HZ5530T-LPN excels in low-light conditions. It boasts an AF Optical Zoom Lens with DC Iris, providing a focal length range of 4.3mm to 129mm, achieving 30x optical zoom and 12x digital zoom. Focus control options include Auto, Manual, Interval, One Push, and Preset, allowing precise adjustments for varied scenarios.
This NDAA compliant camera features advanced AE modes such as Auto, Shutter Priority, Iris Priority, AGC Priority, and Manual. Image enhancement capabilities include Digital Image Stabilization, 3D-DNR, WDR, and BLC, ensuring optimal performance in challenging lighting. Compact at 50mm x 58.8mm x 90.5mm and lightweight at 244g, it operates effectively across a temperature range of -10℃ to +50℃ with humidity levels below 90%. Power is supplied via 12VDC with a maximum consumption of 7.3W.
Features:
- 1/2.9" Progressive Scan Global Shutter CMOS
- 300x Auto-Focus Zoom (25x optical, 12x digital)
- 720p video output at 60/50/30/25 fps
- True WDR, 3D DNR, Defog for enhanced image quality
- Mechanical Day/Night operation
- Global Shutter with Trigger In & Strobe Out
- UART RS232-TTL communication (VISCA, Pelco-D/P, Hitachi)
- Low-light sensitivity: 0.1 lux (day), 0.08 lux (night)
- Compact, lightweight, and durable design
Applications:
- Commercial and industrial surveillance
- Traffic monitoring and law enforcement
- Remote site monitoring
- Broadcasting and live production
- Research and wildlife observation
- Smart city and IoT integration
- Home and facility automation
| Image Sensor | 1/2.9" SONY Progressive Scan Global Shutter CMOS |
| Effective Pixels | 1.58MP 1456(H) x 1088(V) |
| Video Output Mode | LVDS/ Parallel |
| Max. Video Resolution | LVDS / Parallel: 720p@60 (50fps) |
| Synchronization System | Internal / External Option |
| Min. Illumination | Day mode: 0.1 lux (F1.6), Night mode: 0.08 lux (F1.6 / IR-cut filter on) |
| S/N Rate | More than 55dB(AGC off, DSS off) |
| Type | AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length | f = 5.0mm~150mm |
| F-value | F1.6(W)~4.3(T) |
| Angle of View | Horizontal 59.2°(W)~2.0°(T), Vertical 33.8°(W)~1.15°(T) |
| Zoom Ratio | Optical 30x / Digital 12x |
| Focus Min. Working Distance | 0.01m (Wide) / 1.0m (Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Push/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/Manual/Bright |
| Brightness | 0~14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000 |
| Manual Iris | F1.6~F32, Close |
| Sense Up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable(Level:0~29, Contrast:0~5, Bright:0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.48dB, d2X ~ d9X |
| Sharpness | Adjustable (0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Preset Position | 256 position Presets(Zoom,Focus), 16 Memory Presets, Custom Preset |
| Language | English |
| UART Remote | RS232 TTL +5.0V(+3.3V compatible) |
| UART Protocol | VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection |
| UART Baud Rate | 2400/4800/9600/19200/38400/57600/115200bps |
| Supply Voltage | 12VDC (9V to 15VDC) |
| Power Consumption | Max. 5.3W / Non-working zoom & focus 3.8W |
| Dimension (mm) | 50.0 x 58.8 x 96.1 mm |
| Weight | Approx. 240g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
