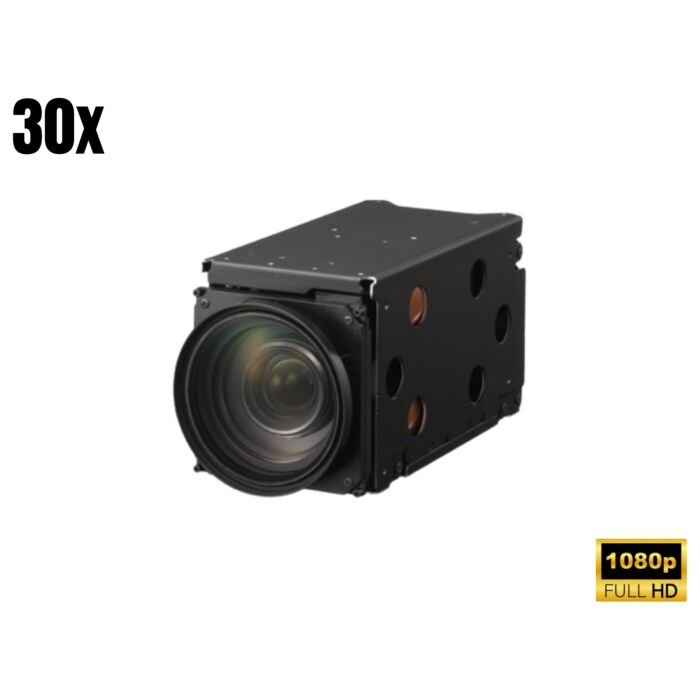

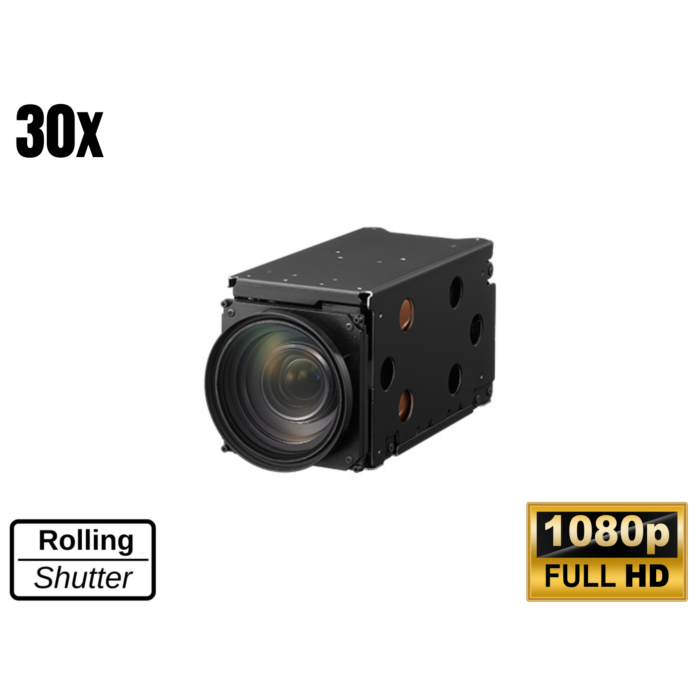

Sony FCB-EV9500L 2.1 MP Block Camera – 30x Zoom, 1080p/60, LVDS, USB, HD-SDI, Super Image Stabilizer
The Sony FCB-EV9500L is a Full HD block camera with a 1/1.8-type STARVIS CMOS sensor, 30x enhanced optical zoom, LVDS output, Super Image Stabilizer, Wide-D, and excellent low-light performance. Ideal for surveillance, robotics, UAV, traffic monitoring, and industrial imaging systems.
The Sony FCB-EV9500L block camera is a Full HD 1080p/60 camera module built for OEM integration in surveillance, transportation, robotics, UAV, and industrial vision systems. It combines a 1/1.8-type STARVIS CMOS sensor, 30x enhanced optical zoom, Super Image Stabilizer, Wide Dynamic Range, and strong low-light sensitivity in a compact Sony FCB form factor. Native LVDS output supports high-performance embedded designs, while compatible interface boards can extend the camera for HD-SDI, HDMI, USB 3.0, and streaming workflows.
With advanced image stabilization, wide dynamic range (WDR), and multiple digital output options via LVDS, the FCBEV9500L ensures reliable imaging in demanding environments. Enhanced privacy masking, motion detection, and flexible picture settings support deployment in government, critical infrastructure, industrial automation, and R&D applications where NDAA-compliant components are required.
Aegis Electronic Group is an authorized Sony FCB distributor in the USA, offering technical support, integration guidance, and fast shipping nationwide. Compare the FCB-EV9500L with previous Sony FCB models to benefit from improved low-light sensitivity, upgraded image stabilization, and refined controls for your next design.
Features:
- 1/1.8-type STARVIS CMOS sensor (2.1 MP, outstanding low-light capability)
- 30x enhanced optical zoom, 12x digital zoom, fast autofocus
- Electronic and optical image stabilization, WDR, 2D/3D Noise Reduction
- Multiple output formats: LVDS, USB, HD-SDI
- Advanced privacy and alarm functions, motion detection
- Wide operating temperature range (-5° to +60°C), robust design
Applications:
- Security & Surveillance
- Traffic & Intelligent Transportation Systems
- Industrial/R&D Inspection Robots
- Unmanned Aerial Vehicles (UAVs)
- Remote Monitoring & Video Conferencing
Why Buy the Sony FCB-EV9500L from Aegis Electronic Group
- Authorized Sony block camera distributor
- Technical support for camera integration and control
- Interface board options for HD-SDI, HDMI, USB 3.0, and IP workflows
- USA-based support for OEM, defense, industrial, and surveillance projects
- Assistance with compatible accessories and system design
| Image Sensor | 1/1.8-type STARVIS CMOS Sensor (4.17M pixels) |
| Output Image Size (H x V) | 1920 x 1080, 1280 x 720 |
| Signal System | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Minimum Illumination (50%, High Sensitivity Mode ON) | ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.00005 lx (1/4 s or 1/3 s, 30%) |
| Minimum Illumination (50%, High Sensitivity Mode OFF) | ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Recommended Illumination | 100 lx - 100,000 lx |
| Gain | Auto/Manual (0 dB - 50.0 dB), 0 - 28 steps |
| Shutter Speed | 1/1 - 1/10000 s, 22 steps |
| Sync System | Internal |
| Exposure Control | 0 dB - +- 10.5 dB, 15 steps |
| Backlight Compensation | Yes |
| Gamma | Standar/Straight Gamma |
| Aperture Control | 16 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB |
| AE (Auto Exposure Mode) | Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE |
| Zoom | 30x Enhanced Optical Zoom 36x Stable Zoom 12x Digital Zoom |
| Lens | f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 - 4.8 |
| Zoom Mode | Standard Mode / Variable Mode / Direct Mode |
| Zoom Movement Speed | Wide end - Tele end - 4.8 sec. (Focus Tracking ON), 2.9 sec (Focus tracking OFF) Wide end - Digital 12x tele - 6.1 sec. (29.97p/59.94p), 6.4 sec (25p/50p) Digital wide - Digital 12x tele - 1.4 sec. (29.97p/59.94p), 1.6 sec (25p/50p) |
| Focusing System | Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus |
| Focus Movement Time | ∞-Near: 1.4 sec. |
| Horizontal Viewing Angle | 58.1°-2.3° |
| Minimum Object Distance (wide end to tele end) | 100 mm - 1200 mm |
| Auto ICR | Yes |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility Enhancer | Yes |
| Defog | Yes (low/mid/high) |
| Noise Reduction | Yes (3D + 2D / Independent setting (3D, 2D) |
| Progressive Scan Mode | Yes |
| Image Stabilization | Yes |
| Spot Light Avoidance | Yes |
| Motion Detection | Yes |
| Privacy Zone Masking | Yes |
| Alarm | Yes |
| Slow AE Response | Yes |
| Picture Effects | Black White (Monochrome Image) |
| Picture Freeze | Yes |
| Electronic-Flip (E-FLIP) | Yes |
| Mirror Image | Yes |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | Yes (20 characters / line, max. 11 lines) |
| Camera Mode Display | Yes (English) |
| Video Output | Digital: Y/Pb/Pr 4:2:(HDMI) Y:8bit. C:8bit RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit |
| Camera Control Interface | VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Power Requirements | 7.0 V - 12.0 V DC |
| Power Consumption | 4.6 W (When motor operates: 6.3W) |
| Operating Temperature | -5 °C - +60 °C |
| Storage Temperature | -20 °C - +60 °C |
| Operating Humidity | 20% - 95% (Absolute humidity : 36 g/m3) |
| Storage Humidity | 20% - 95% (Absolute humidity : 36 g/m3) |
| Dimensions (W x H x D) | 56.0 x 64.0 x 125 mm |
| Mass | Approx. 439 g |
