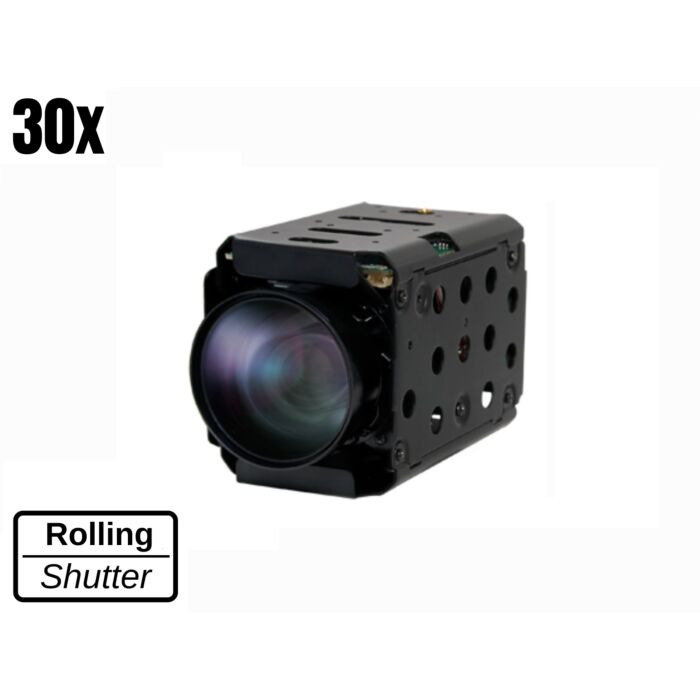

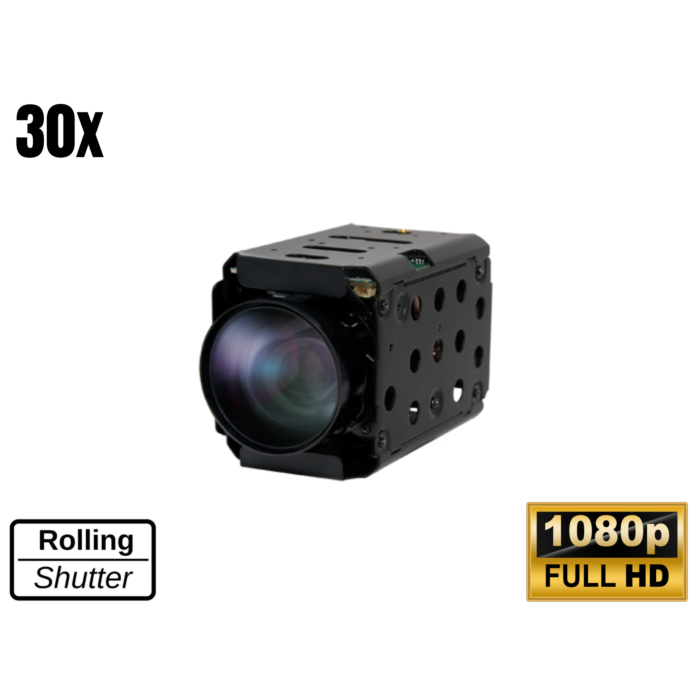

KT&C ATC-HZ7830T-LTN 1/2.8" Exmor CMOS Zoom Camera

Both HD & SD Signals!!!

ATC-HZ7830T-LTN 1/2.8 Sony Exmor Sensor Rolling Shutter 30X Optical Zoom 1080P camera with Sony Visca Control. This camera supports HD-SDI, Standard Def, LVDS and TVI Video.


Discover the capabilities of the KT&C ATC-HZ7830T-LTN 1/2.8" Exmor CMOS Zoom Camera, a powerhouse of innovation. Equipped with a Sony EXMOR R CMOS Starvis sensor, this camera offers an astonishing 360x AF Zoom capability, delivering exceptional precision.

The 1/2.8" Sony Sensor forms the heart of this camera, enabling stunning image quality. With 360x AF Zoom, the camera allows unmatched versatility – capturing intricate details or tracking subjects seamlessly.

Choose from multiple resolutions, including 1080P, 720P, and 1080I, to suit your surveillance needs. The camera seamlessly transitions between day and night modes, offering clarity even in challenging lighting conditions.

The array of features, including Digital WDR, 3D DNR, and Defog, ensure top-notch image quality. The camera supports various protocols like HD-SDI, EX-SDI, LVDS, CVBS, and HD-TVI, enhancing its compatibility.

This camera isn't limited to a single application – it excels in security, surveillance, ITS (Intelligent Transportation Systems), military, and UAVs (Unmanned Aerial Vehicles). Whether it's securing critical assets or enhancing surveillance, the ATC-HZ7830T-LTN proves its versatility.

With specifications like the 1/2.8" Sony EXMOR Sensor, 2.13 Million pixels, and exceptional low-light capabilities, this camera guarantees superior performance. Its ability to operate in various modes, along with customizable settings like zones and exposure, ensures optimal results in different scenarios.

The SONY VISCA protocol enables smooth control and integration. Its efficient power consumption of up to 5.0 W, powered by DC 12V (DC7V-15V), ensures reliability without overburdening power resources.

In essence, the KT&C ATC-HZ7830T-LTN 1/2.8" Exmor CMOS Zoom Camera delivers on its promise of power and precision. It's not just a camera – it's a versatile tool that transforms surveillance, security, and more, setting new standards for imaging excellence. Experience innovation at its finest with the ATC-HZ7830T-LTN.


  • 1/2.8" Sony Sensor
  • 360x AF Zoom
  • 1080P,720P, 1080I
  • Mechanical Day & Night
  • Digital WDR, 3D DNR, Defog
  • Multi Protocol (HD-SDI, EX-SDI, LVDS, CVBS, HD-TVI)


  • Security
  • Surveillance
  • ITS
  • Military
  • UAVs
Image Sensor 1/2.8" Sony EXMOR Sensor
Effective Pixels 2.13 Million
Resolution 1080P
Sensitivity Day Mode=0.5 [email protected]   Night Mode =0.1 Lux @ F1.6
S/N Rate More Than 52dB
Synch Internal
Backlight Comp OFF/BLC/HLC/WDR
White Balance Auto/ATW/Indoor/Outdoor/Push/Manual
Shutter Speed 1/25(30)/1/50(60)-1/30,000sec
OSD English
Motion Detection 4 zones
Privacy Masking 16 Zones
Picture Effects Freeze, Image Reverse, Nega
Camera Control Protocol SONY VISCA, Baud Rate: 9.6 Kpbs
Power Supply DC 12V (DC7V-15V)
Power Consumption Max 5.0 W
