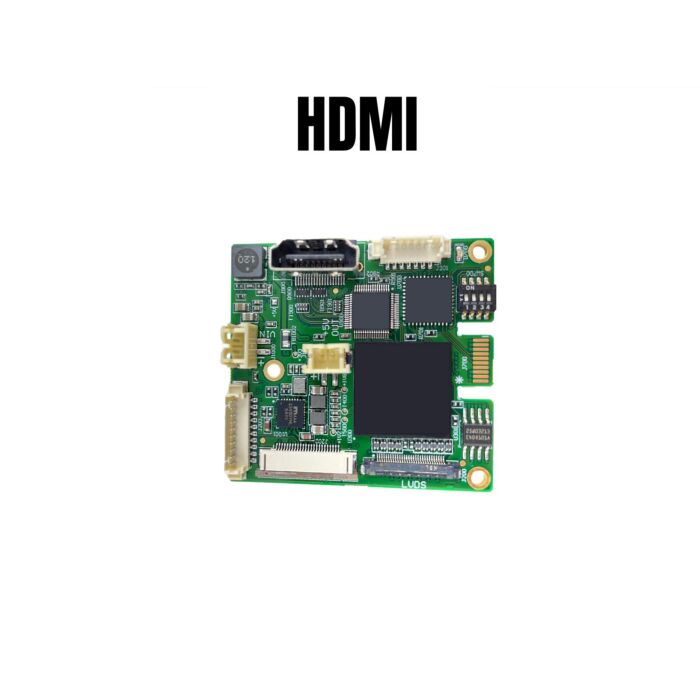

Aegis HDMI-EV HDMI Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The HDMI-EV is a compact interface board that converts the native LVDS format for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras.
The HDMI module provides an efficient and reliable solution for transmitting high-quality video streams over the internationally recognized HDMI standard. It is designed for use with the newest camera models, including the Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras, offering both digital and analog video output options. This versatility makes it suitable for a wide range of applications, from professional broadcasting to industrial automation. The module supports up to 1080p60 video resolution, ensuring smooth, high-definition video quality, and it automatically detects connected cameras, simplifying setup for the user. It is equipped with a standard HDMI Type A connector for digital video output, as well as an analog Y, Pb, Pr output with 75-ohm impedance for use with older systems. The module's power requirements are flexible, supporting supply voltages between 6V and 12V DC, with a 5V auxiliary output available for powering additional peripherals.
For ease of use, the module offers a VISCA control interface, with options for both RS232 and TTL-level serial control, allowing for remote camera operation. Video output configuration can be customized using DIP switches or the VISCA FCB control software, offering full flexibility in adapting to different systems. With its compact size (48mm x 45mm x 17mm) and a temperature operating range from 0°C to 60°C, the module can easily fit into tight spaces and function in a variety of environments. It also complies with EMC FCC Part 15 regulations and features a UL 94 V0-rated PCB for durability and safety. Whether for surveillance, live streaming, medical imaging, or industrial use, the HDMI module offers high-performance video transmission with easy integration into any system.
Features:
- Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
- HDMI digital and analogue video output*
- Up to 1080p60 video resolution output
- Automatic camera detection
- Video format selection by DIP switches
- TTL or RS232 VISCA level serial control interface
- Supply voltage 6V to 9VDC **
- Auxiliary power output 5VDC, 1 A
- Size 48mm x 45mm x 17mm
Applications:
- Broadcasting
- Surveillance
- Video Conferencing
- Industrial Automation
- Medical Imaging
- Education
| Digital video output | HDMI 1.3 |
| Analog video output | Y, Pb , Pr 75 ohms, 1V - VBS (not with SE 600) |
| Digital Video Connector | HDMI Type A |
| Video Output Standard Configuration | VISCA - Default: RS232 level – TTL level (Option) |
| Video Output Configuration | DIP switches or VISCA FCB control software |
| Auxiliary Power Output | 5V, 1A |
| Power Supply | 6 to 12 VDC, 6 W (including camera) 5V for SE600 |
| Environmental | 0°C to 60°C |
| Storage | -20°C to 60°C |
| Regulation | EMC FCC part 15, PCB : UL 94 V0 |
| Dimensions (mm) | 48 (H)x 45 (W)x 17 (D) |
