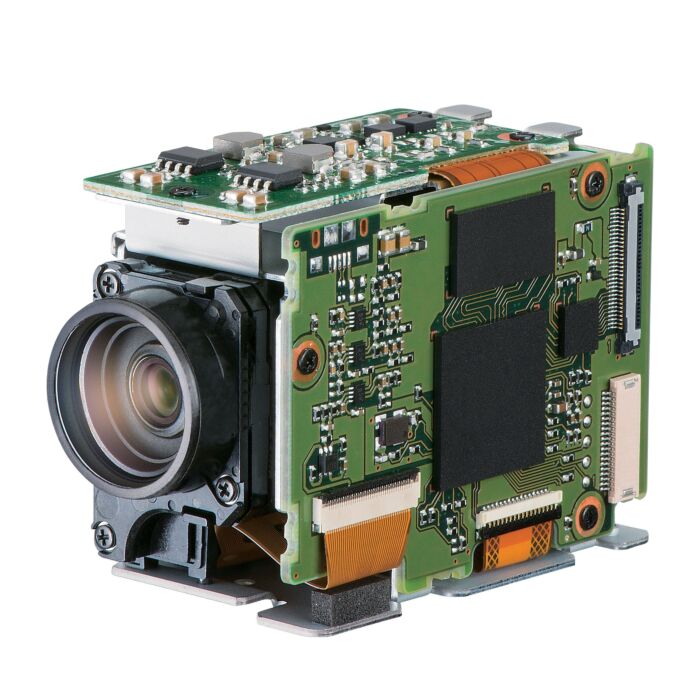

Tamron MP1010M-VC Full HD 1920×1080 10x Optical Zoom Camera Block with Vibration Compensation
*In Stock Now Only 1 Left, Replacement Option: MP3010M-EV
The Tamron MP1010M-VC Full HD camera block delivers stabilized 1920×1080 video with a 10x optical zoom lens and optical vibration compensation in an ultra-compact module weighing only 77g. Designed for robotics, UAV systems, inspection equipment, and security platforms, the MP1010M-VC provides high-contrast imaging, VISCA control compatibility, and reliable operation in vibration-prone environments.
The Tamron MP1010M-VC camera block module is a compact Full HD 1920×1080 progressive scan camera with integrated 10x optical zoom and Tamron’s proprietary optical vibration compensation (VC) technology. Designed for demanding imaging environments where motion or vibration can degrade image quality, this camera module maintains stable, high-contrast video output even at the telephoto end of the zoom range.
Featuring a 1/3" CMOS sensor with approximately 4.08 megapixels, the MP1010M-VC supports multiple HD output formats including 1080p60, 1080p50, 1080p30, 1080i, and 720p, making it compatible with a wide range of industrial, robotics, and surveillance systems. The integrated LVDS digital output and VISCA control protocol enable easy integration into custom embedded systems.
Tamron’s advanced optical design combined with low-reflection coating technology produces clear images with excellent contrast while minimizing color artifacts. The camera’s compact 58.4mm length and lightweight 77g design allow integration into UAV payloads, robotics platforms, inspection tools, and confined imaging environments.
With features such as Wide Dynamic Range, Defog processing, privacy masking, digital noise reduction, and electronic flip, the Tamron MP1010M-VC offers versatile imaging performance for professional video, inspection, and automation applications.
Features:
- A proprietary optical vibration-compensation function prevents image blurring in vibrating environments and at the telephoto end, ensuring clear and crisp images
- Miniature-size construction incorporating an optical vibration-compensation feature
- Compact size with a total length of 58.4mm and light of approx. 77g.
- Miniature-size and light-weight construction enables re-use of current housings and saves installation space
- Video output compatible with 1920 × 1080 Full HD
- High-resolution camera tuned for security/surveillance and a myriad of other applications
- Combination of Tamron’s proprietary optical design and advanced low-reaction coating technology ensures high image contrast without color blurs
Applications:
- Pipe Inspection
- Unmanned Aerial Vehicles
- Robotics
- Video Conferencing
- Underwater Applications
- Security/Surveillance
| Image Sensor | 1/3-type CMOS (Progressive Scan) |
| Effective number of pixels | Approx. 4,080,000 pixels |
| Signal System (HD) | 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 |
| Minimum Illumination | 0.5 lx (1/30sec, F1.8, 50%) |
| Recommended Illumination | 100 lx to 100,000 lx |
| S/N Ratio | More than 50dB |
| Gain | Auto/Manual |
| Shutter Speed | 1/1 to 1/10,000 sec |
| Sync System | Internal |
| Exposure Compensation | -12dB to +12dB (Total 13 steps) |
| Backlight Compensation | ON/OFF |
| Gamma | Standard |
| Aperture Control | 16 steps |
| White Balance | ATW1 (Narrow), ATW2 (Wide), One Push, Manual (B, R) |
| AE (Auto exposure mode) | Auto, Manual, Priority mode (shutter/iris) |
| Lens | 10x optical zoom, f=3.2mm (wide) to 33.6 mm (tele) F1.8 to F3.4 |
| Zoom Mode | Standard/Variable/Direct |
| Zoom Movement Speed | 1.5 sec |
| Focusing System | Auto, Manual, One Push, AF Sensitivity |
| Horizontal Viewing Angle (Wide) to (Tele) | 62 degrees to 6.5 degrees |
| Minimum Object Distance (Wide) to (Tele) | 10mm to 800mm |
| Horizontal Resolution | 800 TV Lines |
| Features | VC (Vibration Compensation), Wide-D, Defog, Noise Reduction (3D + 2D), Digital Output, Privacy Zone Masking, Slow Shutter, Picture Effects (Black White), Picture Freeze, Electronic-Flip (E-Flip), Mirror Image, Temperature Readout, Title Display, Camera Mode Display |
| Video Output | Digital: Y/PB/Pr 4:2:2 (LVDS) |
| Camera Control Interface | VISCA protocol *VISCA is a trademark of Sony Corporation |
| Power Requirement | 8V to 12V DC |
| Power Consumption | Approx. 3W |
| Operating Temperature | -5 °C to +°60C |
| Storage Temperature | -40 °C to +°60C |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 90% (no condensation) |
| Dimensions (W x H x D) | 31.9 x 41.5 x 58.4 mm |
| Weight | Approx. 77g |
