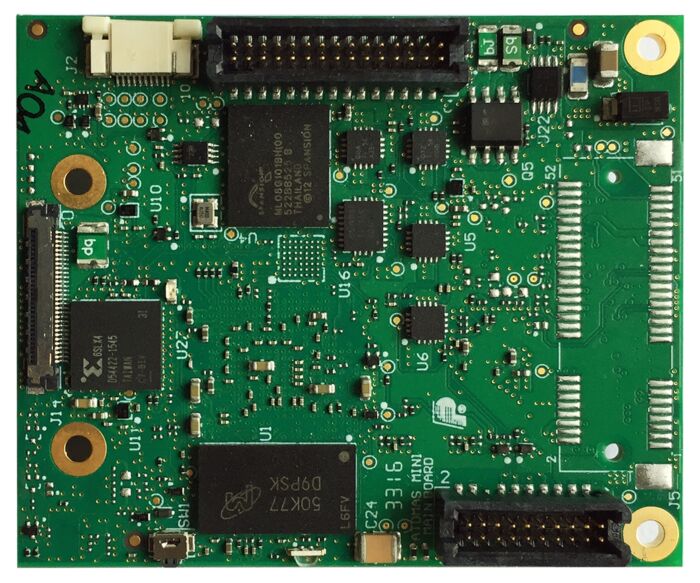

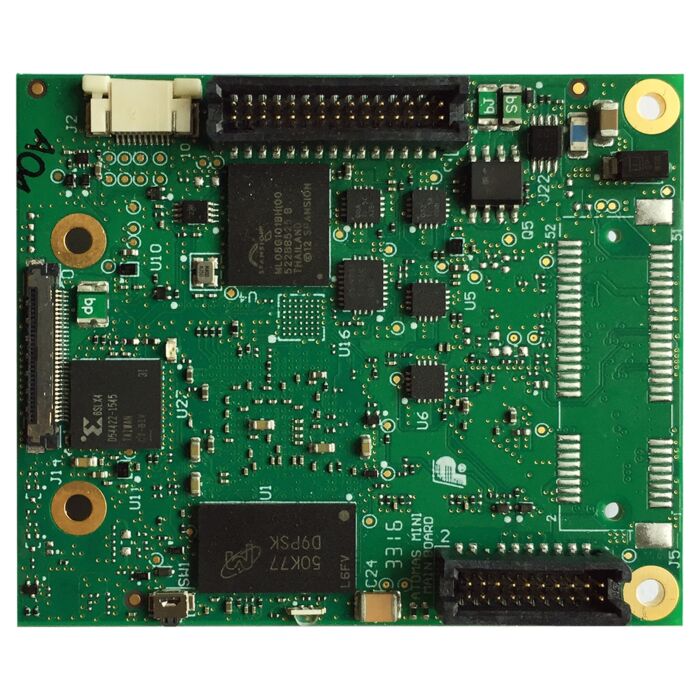

IONODES Atomas-Mini LVDS Full HD 1080p60 H.264 IP Encoder Module

The ATOMAS Mini encoder module is a feature-rich IP video encoder designed for a wide range of OEM camera designs. The unique compact form factor of the ATOMAS Mini LVDS makes it especially well suited for integration to standard LVDS zoom camera blocks.
SKU
ATOMAS-MINI-LVDS-Ionodes

The ATOMAS Mini LVDS is designed for direct connection to SONY's line of FCB zoom camera blocks, such as the FCB-EV7500, with a form factor allowing for easy integration on the back or the side of the camera block. The video interface via LVDS provides for the highest level of digital video quality while maintaining ease of integration to your mechanical designs.

Features:

  • Glueless connection to SONY FCB Zoom blocks
  • High profile H.264 video copression
  • IP video streaming at up to 1080p60
  • Local recording to SD card
  • Onvif Profile S compliant
  • Web-based administrative user interface
  • 7VDC to 12VDC power input range

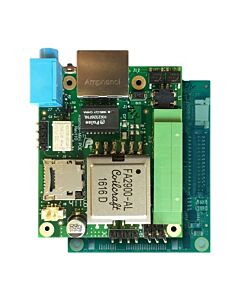

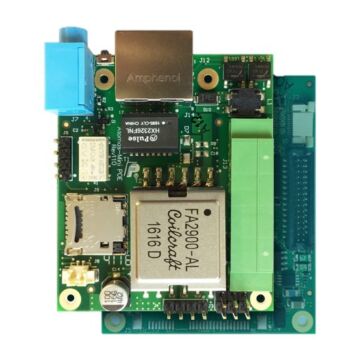

  • Optional microSD break-out module
  • Low latency IP video streaming
  • On-board RTC and hardware watchdog
  • Network 1 x 10/100 Base-T Ethernet Optional WIFI support
    Video Interface 30-pin LVDS interface (KEL USL00-30L) *Matches SONY FCB Specifications
    Serial Port 1 x UART, RS-485/422
    *Software accessible
    *Interface possible to PTZ controller
    I/O & Audio 2 x Dry Input I/O, 1 x Dry Output I/O
    Video Resolution Supports sensor inputs at up to 12 megapixels
    Video Compression H.264/MPEG-4 AVC (up to high profile)
    MPEG4 Part 2
    JPEG
    Still Images Still image capture at up to 12 megapixels
    H.264 Performance Total D1@390 fps or Full HD 1080p@65 fps
    Examples:
    1 x 1080p60 fps + 1 x D1 @ 30 fps
    2 x 1080p30 fps + 1 x D1 @ 30 fps
    Video Latency Can  reach less than 120ms latency
    Image Processing Lens distortion correction
    Motion adaptive deinterlacing
    Arbitrary image resizing and scaling ratio
    2D/3D noise reduction
    Edge Enhancement
    Frame difference motion detection
    Privacy masks
    ROI based video compression
    Operating System Linux
    HW Watchdog Auto-boot, OS supervision, temperature monitoring, software monitoring
    Other  Realtime Clock (RTC) - Temperature Sensor - Optional gyroscope/accelerometer/compass
    Internal Storage 1GB NAND Flash
    External Storage External Storage via SD/MMC
    Networking  IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP
    Streaming RTSP, RTP, HTTP, Web Sockets
    Management HTTP, HTTPS, Bonjour, ONVIF, PSIA, ION, API, SNMP, SMTP
    Security Basic / Digest Authentication, SSL
    Web GUI System configuration and maintenance
    Live video and PTZ control
    Cross-browser support
    Smartphone and tablet support
    Progamming Interface ION API, ONVIF Profile S
    System Monitoring Video signal, storage medium, temperature, memory, CPU, network
    Media Recording Recorded ASF audio/video to SD/MMC
    Software Update Fault-tolerant, remote accessible
    Alarm Triggers I/O input, motion detection, system monitor
    PTZ Control Full Pelco D implementation
    Can interface to PTZ controller (UART)
    Programmable preset tours
    User-defined custom commands
    Other Features Email notifications (on event or schedule)
    Text overlay
    OEM rebranding / customization
    Dimensions 50mm x 60mm
    Power Input 7VDC to 12VDC
    Operating Temperature -40°C to 85°C (case temperature)
    Warranty 2 Years Standard
