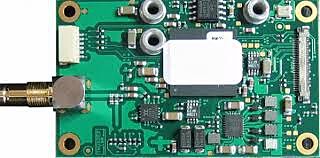

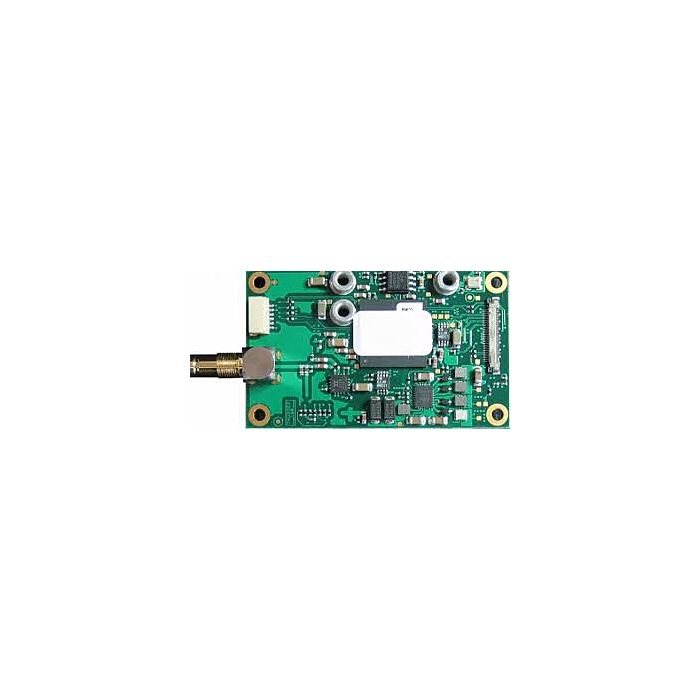

Aegis 3G-HDSDI interface for Tamron MP1010M camera module

Name: Aegis 3G-HDSDI interface for Tamron MP1010M camera module
Brand: Aegis
SKU: Aegis 3G-HDSDI interface

SKU

Aegis 3G-HDSDI interface

Please call for pricing

Quick Overview

These are a family of small form factor modules for formatting and converting generic digital video streams to standard compliant formats. Different interface standards are supported from the transmitter side including DVI/HDMI, 3G-SDI and HD-SDI. Supported physical media are copper and fibre cables.

Overview

These modules connect to the digital video interface of Tamron block cameras and support several progressive and interlace HDTV formats. SDI-MP1010-GM-60P-M-RA outputs serial digital video (SDI) up to 1080p60.

Features:

Supports Tamron MP1010M-VC ultra compact camera module

Digital 4channel LVDS video input from camera

1080p output at 60Hz, 50Hz, 30Hz and 25Hz

720p output at 60Hz and 50Hz

1080i output at 60Hz and 50Hz

Full automatic video input standard detection

3G/HD-SDI output

SDI output compliant to SMPTE ST424M Level A and ST292M

Native digital signal processing chain for best image quality

RS232 and TTL level serial control interface

Supply voltage 12V DC regulated

Board Side Mount

Downloads

Aegis 3G-HDSDI Interface Spec Sheet
