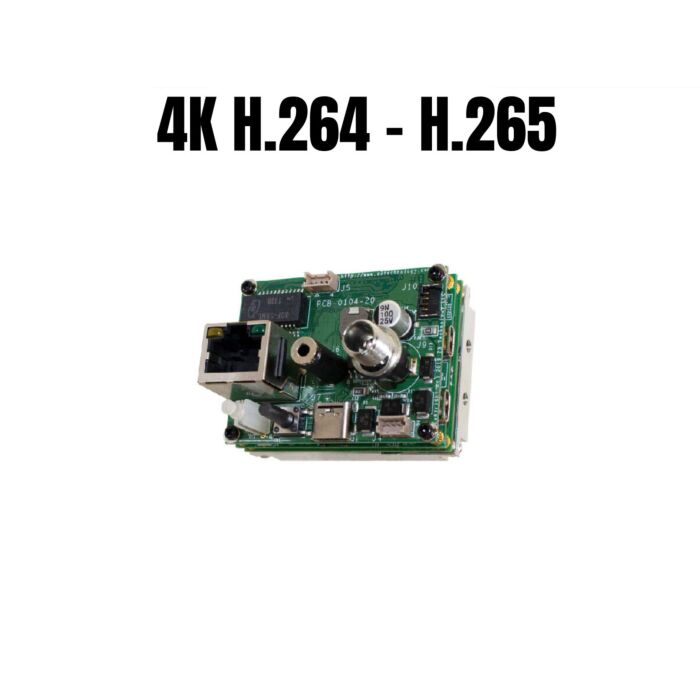

Z3 Technology Z3-Q603-RPS H.265 Video Encoder Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
The Z3 Technology Z3-Q603-RPS H.265 Video Encoder Board for Sony FCB-ER9500 & FCB-ER8530 4K block cameras delivers compact HEVC/H.264 encoding up to 4K. On-board GigE, RS-485, KEL connections, Micro-HDMI 1.4 I/O, and Composite input enable seamless industrial imaging integration.
Perfect for edge AI, machine vision, UAVs, and surveillance, this 60x30x15mm encoder from Aegis offers low-latency 4K@30fps streaming, <5W power, and rugged -20°C to 70°C durability.
Made in the USA and NDAA compliant, the Z3-Q603-RPS provides a compact, high-performance HEVC 4K and HD video encoding solution for industrial imaging, machine vision, and edge AI systems. Featuring on-board GigE for fast data transfer, RS-485 serial control, and KEL connections optimized for Sony FCB-ER9500 and FCB-ER8530 4K block cameras (plus LVDS HD models), it includes Micro-HDMI 1.4 input/output and Composite video input for seamless integration. This rugged encoder supports HEVC (H.265) compression at 4K@30fps, cutting bandwidth by up to 50% over H.264 while delivering pristine quality in space-constrained setups like drones and automation tools.
Ideal for AI edge computing, factory inspection, UAV capture, medical endoscopy, and security applications, the Z3-Q603-RPS from Aegis Electronic Group offers low-latency streaming via GigE to NVRs or cloud platforms, PTZ control, low power (<5W, 5-12V DC), and industrial durability (-20°C to 70°C). At just 60x30x15mm with American-made reliability, it powers real-time analytics and multi-camera systems—ensuring top performance for your vision projects.
Features:
- Low Latency
- ONVIF® Profile S & T Compliant
- Easy-to-Use HTTP-Based Control Interface
- Fully controllable parameters; resolution, max bitrate, GOP and on the fly bitrate control
- WiFi 802.11ac dual band 4.33 Mbps
- Bluetooth 5.0
- Zixi Feeder Enabled
Applications:
- UAV and Drones
- Inspection
- Remote Monitoring
- Security and Surveillance
- Video Conferencing
- Customized Applications
Processor | Qualcomm QCS603 system on chip processor, Quad core Arm v8, two cores at 1.6 GHz, two at 1.7 GHz, Snapdragon neural processing engine, Adreno 615 graphics at 780 MHZ |
Video Inputs | HDMI 1.4 from Micro-HDMI jack at up to 4Kp30 |
Video Output | HDMI 1.4 on Micro-HDMI |
Video Codecs | H.265, H.264, MJPEG encode |
Audio Intefaces | Embedded from HDMI |
Audio Codecs | HE-AAC, HEv2-AAC, AAC-LC |
Interfaces | Sony 4K Camera KEL Input Aux Power In/Out LVDS HD Camera KEL Input Gigabit Ethernet HDMI 1.4 Input UART HDMI 1.4 Output Serial RS-232 Composite Video In RS-485 Bluetooth 5.0 WiFi 802.11am dual band 433 Mbps |
Operating System | Embedded Linux (root file-system, NAND boot, tool chain and flash programming tool) u-boot |
Encoding Resolutions | H.265 video encode at up to 4K, 30fps with multi-stream support |
Output Formats | RTP, RTSP, MPEG-2 TS over UDP, RTMP, TSRTP, MPTS and TS file |
Features | • Low Latency |
Encoder Size | 50 x 40 x 38 mm |
Encoder Weight | 43g (heat pipe and heat sink is an additional 58g) |
Power Supply Options | 1-cell Li battery (on board charger) USB Type-C bus power 12V DC |
Power Consumption | 5W typical |
