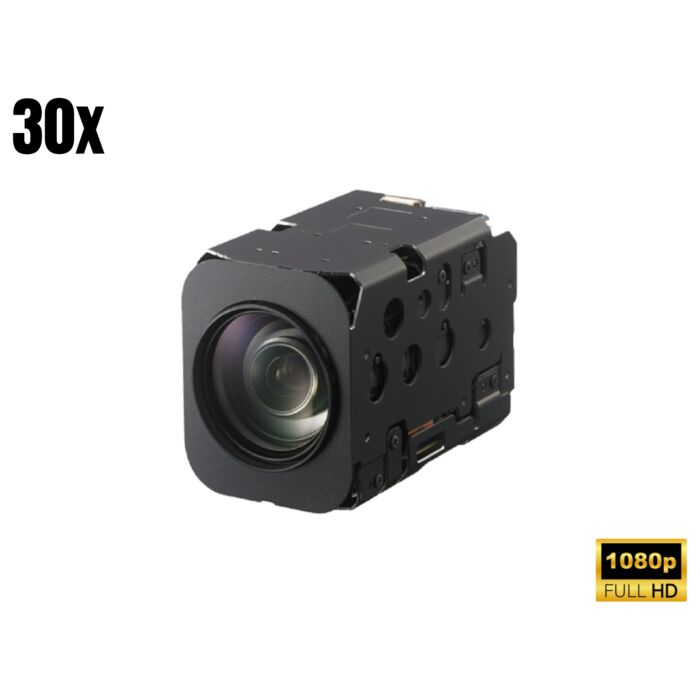

Sony FCB-EV7520A (FCBEV7520A) 2.13MP 30x Zoom HD Block Camera

*Discontinued please contact your Aegis Sales Rep for last time buys and suitable replacements*

The built-in 30x optical zoom and back-illuminated CMOS sensor with 0.01 lx minimum illumination allow capturing of high-fidelity images even at night or in low-light environments, which is very useful for security applications.


The new FCB-EV7520A (FCBEV7520A) series camera offers 30x optical zoom plus a multitude of Sony’s core FCB technology features including Auto ICR, Spherical Privacy Zone Masking (PZM) and settable defog.


  • 1/2.8-type Exmor R CMOS
  • Digital Output (Y/Cb/Cr 4:2:2)
  • Image Stabilizer
  • Color Enhancement
  • Wide-D Mode
  • Privacy Zone Masking
  • Defog Mode
  • Auto ICR Function
  • Digital 2D/3D Noise Reduction
  • Spherical Zone Masking
  • Motion Detection Alarm
  • Camera mode display feature
  • Picture Effects: E-Flip, Black & White, Mirror Image, Color Enhancement
  • Electronic shutter/slow shutter
  • TTL signal-level control (VISCA protocol)


  • Security Surveillance
  • Intelligent Traffic
  • Remote Monitoring
  • Video Conferencing
Image Device 1/2.8-type CMOS
Effective Pixels Approx. 2.13 Megapixels
Digital Zoom 12x (360x with optical zoom)
Horizontal Viewing 63.7°(wide end) to 2.3°(tele end)
Minimum Object  10 mm (wide end) to 1200 mm (tele end) (Default: 300 mm)
Sync System Internal
Electronic Shutter 1/1 s to 1/10,000 s, 22 steps
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Gain Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps)
Wide Dynamic Range No
Backlight Compensation Yes
Privacy Zone Masking Yes
Character Generator 20 characters/line, max. 11 lines
Focus System Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Picture Effect E-Flip, Nega Art, Black & White, Mirror image, Color enhancement
Exposure Control Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Lens Value 30x optical zoom; f=4.3mm (wide) to 129.0mm (tele); F1.6 to F4.7
S/N Ratio More than 50 dB
Minimum Illumination Color: 1.4 lx (F1.6, AGC on, 1/30 s); High Sensitivity Mode Color: 0.35 lx (F1.6, AGC on, 1/30 s)
Video Output Digital: Y/CB/CR 4:2:2 via LVDS (Signal format conforms to SMPTE 274/SMPTE 296.) SD VBS
Control Interface VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit
(W x H x D)
50.0 x 60.0 x 89.7 mm
 Weight  Approx. 260 g
