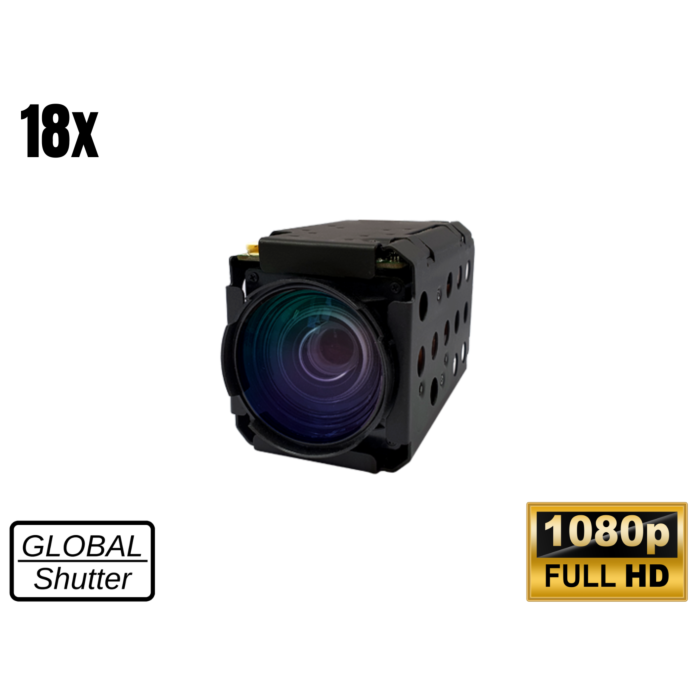

KT&C ATC-HZ5518W-LPN (ATCHZ5518WLPN) Block Camera with 1080P60 Output, 18x Optical Zoom, 1/1.8” Global Shutter CMOS
The KT&C ATC-HZ5518W-LPN is a high-performance surveillance camera featuring a 1/1.8” Progressive Scan Global Shutter CMOS sensor, delivering an effective resolution of 3.19MP (2064 x 1544). It supports video output modes including Parallel, LVDS, and CVBS, with a maximum resolution of 1080p at 60fps, ensuring clear images in various conditions.
Equipped with a 216x AF Zoom (18x optical zoom and 12x digital zoom), the camera achieves exceptional close-up views with a minimum working distance of 0.1m in wide mode and 2.0m in telephoto mode. Its mechanical Day&Night feature offers excellent low-light performance, with a minimum illumination of 0.1 Lux (day) and 0.05 Lux (night).
Advanced image enhancement technologies, including True WDR, 3D DNR, and Defog capabilities, ensure optimal visibility in challenging lighting environments. Connectivity is seamless through UART RS232 with VISCA, Pelco-D, Pelco-P, and Hitachi protocol compatibility. NDAA compliant, compact and efficient, the camera operates on a 12V DC supply with a maximum power consumption of 7.4W, making it ideal for various security applications.
Features:
- 1/1.8 Progressive Scan Global Shutter CMOS
- 216x AF Zoom (18x optical zoom, 12x digital zoom)
- 1080p 60/50/30/25 fps
- Mechanical Day&Night
- True WDR
- 3D DNR, Defog
- Global Shutter, Trigger In&Strobe Out
- UART RS232 to TTL (Pleco-D, Pelco C, VISCA, Hitachi)
Applications:
- Traffic
- Surveillance
- Military Applications
- Law Enforcement
- Border Patrol
- Monitoring
- Video Conferencing
- Low Vision Applications
| Image Sensor | 1/1.8" Progressive Scan Global Shutter CMOS |
| Effective Pixels | 3.19MP 2064(H) x 1544(V) |
| Video Output Mode | Parallel/LVDS/CVBS |
| Max. Video Resolution | LVDS / Parallel :1080p@60(50fps) |
| Synchronization System | Internal/External Options |
| Min. Illumination | Day mode: 0.1 Lux (F1.61) Night mode: 0.05Lux(F1.61/ IR-cut filter on) Sens-Up off, AGC45dB |
| S/N Rate | More than 55dB (AGC off, Sense-up off) |
| Lens | AF Optical zoom lens (DC Iris), IR Corrective f=6.8mm to 120mm F1.61 (W) to 4.13 (T) Horizontal 51.6°(W)~3.1°(T), Vertical 30.4°(W)~1.9°(T) |
| Zoom Ratio | Optical 18x / Digital 12x |
| Focus Min. Working Distance | 0.1m(Wide)/2.0m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Push/Manual/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0-14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50) to 1/10000 |
| Manual Iris | F1.6 to F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/One Push/Indoor/Outdoor/ATW/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V (180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable (Level:0~29, Contrast:0~5, Bright:0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.48dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Language | English |
| UART | RS232 TTL +5.0V (+3.3V compatible) VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection) 2400/4800/9600/19200/38400/57600/115200 bps |
| Supply Voltage | 12VDC (9V to 15VDC |
| Power Consumption | Max. 7.4W / Non-working zoom & focus 4.9W |
| Dimension (mm) | 51 X 59 X 97.6mm |
| Weight | Approx. 277g |
| Operating Temperature | -10℃~+50℃, Humidity(Less than 90%) |
| Storage Temperature | -20℃~+60℃, Humidity(Less than 90%) |
