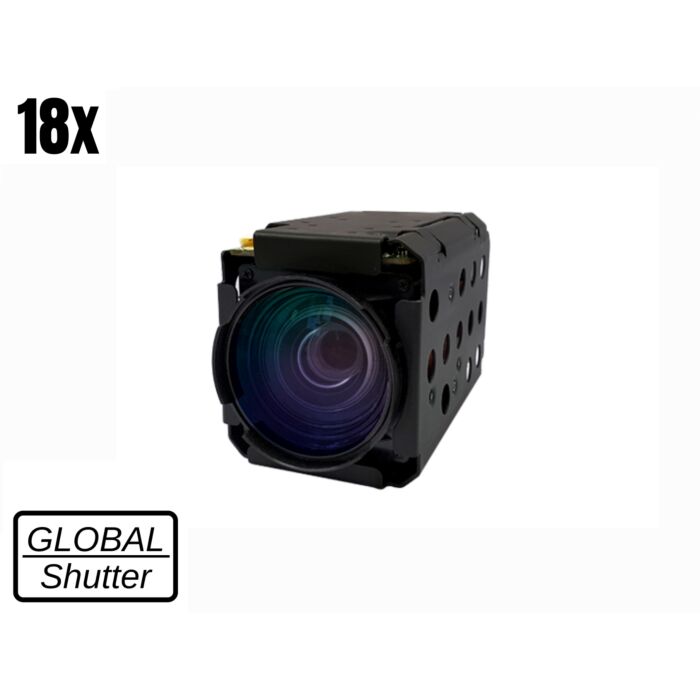

KT&C ATC-HZ5518W-LPN HD Auto Focus 18X Optical Zoom Block Camera

1/1.8” Progressive Scan Global Shutter CMOS
SKU
ATC-HZ5518W-LPN

Introducing the KT&C ATC-HZ5518W-LPN HD Auto Focus 18X Optical Zoom Block Camera, a breakthrough in surveillance technology. This camera is engineered to deliver exceptional precision, clarity, and versatility, making it an essential asset for various applications.

At its core lies the advanced 1/1.8” Progressive Scan Global Shutter CMOS sensor. This technology eliminates motion artifacts, ensuring images remain sharp and distortion-free even in high-speed scenarios.

Boasting an impressive 18X optical zoom and 12X digital zoom, the ATC-HZ5518W-LPN allows you to capture intricate details from a distance without compromising image quality. With a 1080p resolution at smooth frame rates of 60/50/30/25 fps, this camera ensures every frame is rich in detail, making it a reliable tool for surveillance.

The Mechanical Day & Night function seamlessly adapts to changing lighting conditions, guaranteeing clear images 24/7. The True WDR technology further enhances image quality, preserving details in both bright and dark areas for comprehensive coverage.

The 3D Digital Noise Reduction (3D DNR) and Defog features work together to eliminate visual noise and enhance clarity, even in adverse weather conditions. The Global Shutter and Trigger In&Strobe Out features add to the camera's versatility and control, making it suitable for various scenarios.

Equipped with UART RS232 to TTL protocols including Pleco-D, Pelco C, VISCA, and Hitachi, this camera offers comprehensive compatibility with various systems, facilitating seamless integration into your existing setup.

The ATC-HZ5518W-LPN not only excels in its technical capabilities but also finds applications in diverse environments. Whether it's traffic monitoring, surveillance, military operations, law enforcement, border patrol, monitoring, video conferencing, or low vision applications, this camera is a powerful solution.

In conclusion, the KT&C ATC-HZ5518W-LPN HD Auto Focus 18X Optical Zoom Block Camera redefines surveillance standards. With its advanced sensor technology, powerful zoom capabilities, and comprehensive features, it stands as a versatile and dependable tool for precision monitoring. Elevate your surveillance capabilities with the ATC-HZ5518W-LPN and experience a new era of clarity and precision.


Features:

  • 1/1.8 Progressive Scan Global Shutter CMOS
  • 216x AF Zoom (18x optical zoom, 12x digital zoom)
  • 1080p 60/50/30/25 fps
  • Mechanical Day&Night
  • True WDR
  • 3D DNR, Defog
  • Global Shutter, Trigger In&Strobe Out
  • UART RS232 to TTL (Pleco-D, Pelco C, VISCA, Hitachi)

Applications:

  • Traffic
  • Surveillance
  • Military Applications
  • Law Enforcement
  • Border Patrol
  • Monitoring
  • Video Conferencing
  • Low Vision Applications
Image Sensor 1/1.8" Progressive Scan Global Shutter CMOS
Effective Pixels 3.19MP 2064(H) x 1544(V)
Video Output Mode Parallel/LVDS/CVBS
Max. Video Resolution LVDS / Parallel :1080p@60(50fps)
Synchronization System Internal/External Options
Min. Illumination

Day mode: 0.1 Lux (F1.61)
Night mode: 0.05Lux(F1.61/ IR-cut filter on) Sens-Up off, AGC45dB

S/N Rate More than 55dB (AGC off, Sense-up off)
Lens

AF Optical zoom lens (DC Iris), IR Corrective f=6.8mm to 120mm
F1.61 (W) to 4.13 (T)
Horizontal 51.6°(W)~3.1°(T), Vertical 30.4°(W)~1.9°(T)

Zoom Ratio Optical 18x / Digital 12x
Focus Min. Working Distance 0.1m(Wide)/2.0m(Tele)~Infinite
Focus Control Auto/Interval/One Push/Manual/Preset
AE Mode Auto/Shutter Priority/Iris Priority/AGC Priority/Manual
Brightness 0-14
Manual Shutter 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50) to 1/10000
Manual Iris F1.6 to F32, Close
Sense-up Off~32fields
ETC Spot AE, Slow AE
D&N Mode Auto/Day(Color)/Night(BW)/External-H or L
White Balance AUTO/One Push/Indoor/Outdoor/ATW/Manual
Image Freeze Off/On
Image Flip Off/Horizontal/Vertical/H+V (180° Flip)
Privacy Mask Zone 8 Zones/14 mask color selectable
Digital Image Stabilization Yes
Motion Detection 4 Zones
D-WDR Off/Low/Middle/High
WDR Off/On, Adjustable (Level:0~29, Contrast:0~5, Bright:0~19)
BLC Off/On, Area selectable
HLC Off/On, Area selectable
AGC Max.48dB
Sharpness Adjustable(0~15)
3D-DNR Off/Auto/Low/Middle/High
2D-DNR Off/Auto/Low/Middle/High
Defog Off/On/Auto
Language English
UART

RS232 TTL +5.0V (+3.3V compatible)
VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection)
2400/4800/9600/19200/38400/57600/115200 bps

Supply Voltage 12VDC (9V to 15VDC
Power Consumption Max. 7.4W / Non-working zoom & focus 4.9W
Dimension (mm) 51 X 59 X 97.6mm
Weight Approx. 277g
Operating Temperature -10℃~+50℃, Humidity(Less than 90%)
Storage Temperature -20℃~+60℃, Humidity(Less than 90%)
