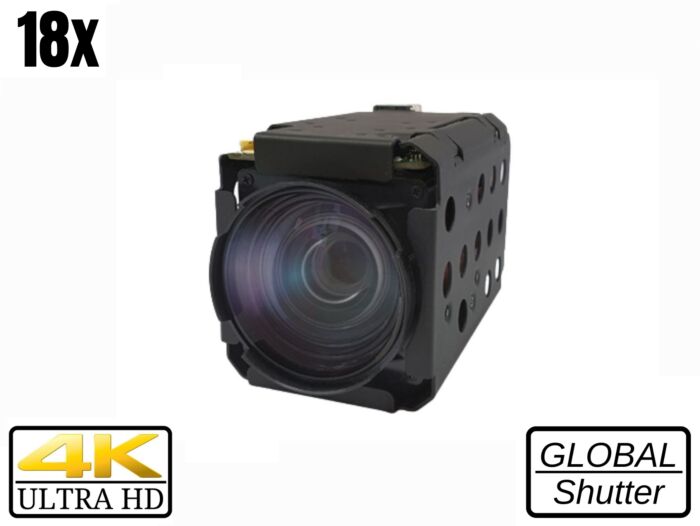

KT&C ATC-UZ5818M-H 4K Auto Focus 2160P30 18X Optical Zoom Block Camera (Discontinued)

SKU
ATC-UZ5818M-H
Quick Overview

*Product is Discontinued, Call For Replacement Options

The KT&C ATC-UZ5818M-H is a cutting-edge 4K IP camera featuring a 1/1.8" Progressive Scan CMOS sensor with 8.42MP resolution. With a remarkable 216x AF zoom (18x optical and 12x digital), True WDR, and 3D DNR, it provides superior image quality.

Introducing the KT&C ATC-UZ5818M-H: Redefining surveillance precision. This 4K Auto Focus 18X Optical Zoom Block Camera is engineered to deliver unparalleled clarity, zoom capabilities, and ease of use.

Powered by a 1/1.8" Progressive Scan CMOS sensor, the ATC-UZ5818M-H captures intricate details with exceptional clarity. Its advanced 18X optical zoom and 12X digital zoom provide a staggering 216X AF Zoom range, enabling you to focus on even the minutest details from a distance.

With a remarkable 4K resolution (3840x2160) at 30/25fps, this camera ensures that every frame is rich in detail and clarity, making it ideal for critical surveillance scenarios where detail matters most.

Equipped with a Mechanical Day & Night function, the camera effortlessly adapts to changing lighting conditions, ensuring clear and detailed images round the clock. The True WDR (Wide Dynamic Range) technology further enhances image quality, preserving details in both bright and dark areas for comprehensive coverage.

The 3D Digital Noise Reduction (3D DNR) and Defog features work in harmony to eliminate visual noise and enhance clarity, even in challenging weather conditions. This camera's ability to maintain image quality in adverse environments is a testament to its reliability and performance.

With UART RS232-TTL protocols including Pleco-D, Pelco C, VISCA, and Hitachi, the ATC-UZ5818M-H seamlessly integrates into a variety of systems, allowing for effortless control and management. This compatibility ensures that you can incorporate the camera into your existing setup without hassle.

The ATC-UZ5818M-H not only excels in its technical capabilities but also offers a user-friendly experience. The advanced auto-focus system guarantees extremely precise focusing, while the camera's intuitive design makes setup and operation straightforward.

Whether you're monitoring critical infrastructure, securing commercial spaces, or maintaining vigilance in public areas, the KT&C ATC-UZ5818M-H stands as an exceptional solution. Its 4K resolution, extensive zoom range, and advanced features set it apart as a powerful tool for precision surveillance.

In summary, the KT&C ATC-UZ5818M-H combines cutting-edge technology with user-centric design to deliver unmatched surveillance capabilities. Its 4K resolution, 18X optical zoom, true WDR, and intelligent noise reduction make it a top choice for those who demand the highest level of detail and clarity from their surveillance equipment. Elevate your surveillance capabilities with the KT&C ATC-UZ5818M-H and experience a new era of precision monitoring.

Features:

  • 1/1.8 Progressive Scan CMOS
  • 216x AF Zoom(18x optical zoom, 12x digital zoom)
  • 4K(3840x2160) 30/25fps
  • Mechanical Day&Night
  • True WDR
  • 3D DNR, Defog
  • UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
Image Sensor1/1.8" Progressive Scan CMOS
Effective Pixels8.42MP 3864(H) x 2180(V)
Video Output ModeHDMI(1.4a)/CVBS
Max. Video ResolutionHDMI(1.4a) : 4K(3840x2160)@30(25fps)
Synchronization SystemInternal
Min.IlluminationDay mode: 0.1Lux(F1.61)
Night mode: 0.07Lux(F1.61/ IR-cut filter on)
S/N RateMore than 55dB(AGC off, Sense-up off)
LensAF Optical zoom lens(DC Iris), IR Corrective
f=6.8mm~120mm
F1.61(W)~4.13(T)
Horizontal 58.5°(W)~3.7°(T), Vertical 35.0°(W)~2.1°(T)
Zoom RatioOptical 18x / Digital 12x
Focus Min.Working Distance0.1m(Wide)/2.0m(Tele)~Infinite
Focus ControlAuto/Interval/One Push/Manual/Preset
AE modeAuto/Shutter Priority/Iris Priority/AGC Priority/Manual
Brightness0~14
Manual Shutter1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000
Manual IrisF1.6~F32, Close
Sense-upOff~32fields
ETCSpot AE, Slow AE
D&N ModeAuto/Day(Color)/Night(BW)/External-H or L
White BalanceAUTO/One Push/Indoor/Outdoor/ATW/Manual
Image FreezeOff/On
Image FlipOff/Horizontal/Vertical/H+V(180° Flip)
Privacy Mask Zone4 Zones, Color: Black/White
Network ProtocolIPv4, TCP/IP, UDP, DHCP, DNS, RTP/RTSP, HTTP, HTTPS, ICMP
Network Port10/100/1000M Ethernet
Network SecurityIP Filtering, HTTPs, Password Protection
Web BrowserInternet Explorer 11.0, Safari, Google Chrome, Firefox
Streaming ProtocolRTSP/RTP/UDP
Control ProtocolPelco-D, Pelco-P
BackupMicro SD/SDHC/SDXC Memory Card(Up to 128GB)
Operation Temperature-10°C ~ +50°C
Power SupplyAC 24V/1A or PoE(IEEE 802.3af)
Power Consumption24V: 8W
PoE: 12W
Weight1.7kg
Dimension247.5(W) x 138(H) x 115.5(D) mm
ConstructionDie-cast Aluminum
ColorWhite
Ingress ProtectionIP66
