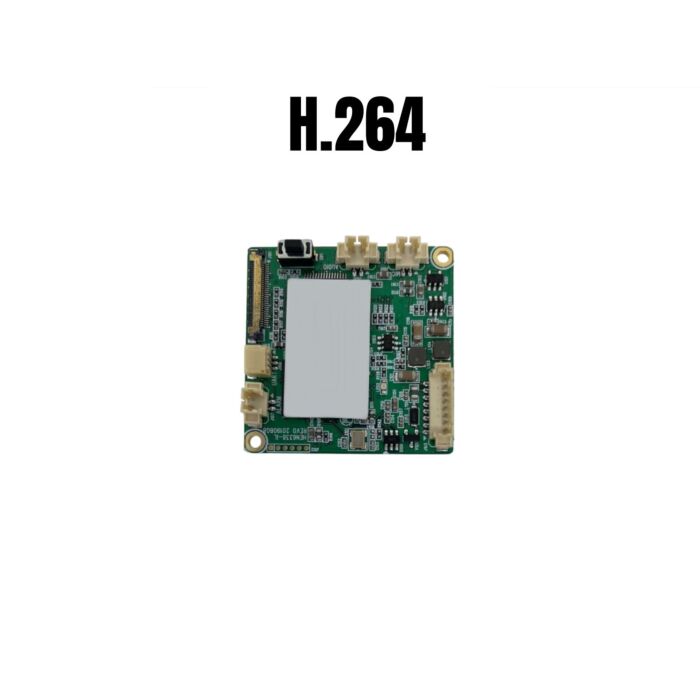

KT&C ACE-HEN6338-iL H.264 LVDS to IP Encoder Module for HD Block Cameras
The KT&C ACE-HEN6338-iL provides high-definition 1080p video quality at 30fps with H.264 compression, ensuring both superior clarity and efficient bandwidth usage. It supports all IP/network-enabled HD block cameras, offering seamless integration into any surveillance setup. Features like motion detection with up to 4 zones, 16 privacy masking zones, and multiple streaming profiles provide customizable surveillance solutions. With both 12VDC and PoE power options, it’s easy to install in a variety of settings. Additionally, its compact design and wide temperature range make it versatile and reliable for diverse environments.
Built for robust network integration, KT&C devices support protocols like HTTP, HTTPS, and Onvif for easy compatibility with existing systems. The equipment allows up to 5 simultaneous users, features two-way audio with G.711 compression, and provides customizable alarm triggers based on motion detection. With a durable and compact build, it operates reliably in environments ranging from -10°C to +50°C, making it an ideal solution for business or personal security needs.
Features:
- Low Voltage LVDS Input
- 1080p (1920x1080) @30(25)fps
- H.264 Main/Baseline Profiles
- 12VDC/PoE
Applications:
- Remote monitoring
- Traffic and public space monitoring
- School and campus security
- Retail store security
- Access control and monitoring
- Smart building integration
- Healthcare facility monitoring
- Parking lot surveillance
| Video Output | Network | ||
| Motion Detection | 60x34 Motion Block, up to 4 zones | ||
| Privacy Masking Zone | 16 Zones | ||
| Alarm In/Out | 1Ch Out | ||
| Alarm Triggers | Motion | ||
| Alarm Events | Network | ||
| Ethernet | 10/100 Base-T Ethernet | ||
| Video Compression Format | H.264 Baseline, Main Profile, MJPEG | ||
| Video Resolution | 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240 | ||
| Max. Frame Rate | First: 1080p 30(25)fps (H.264) Second: 640x360 30 (25)fps (H.264) Third: 1080p 30 (25)fps (MJPEG) | ||
| Streaming Capability | Multiple Streaming (Up to 3 Profiles) | ||
| Streaming Method | Unicast | ||
| Bitrate Control | H.264 : CBR, VBR, CVBR | ||
| Max. User Access | 5 | ||
| Audio In/Out | Mic In (Conn.), Additional Audio In/Out (selectable) | ||
| Compression Format | G.711 | ||
| IP | IPv4 | ||
| Protocol | HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP) | ||
| Web Browser | Internet Explorer, Edge, Safari, Firefox, Chrome | ||
| Language | English | ||
| SW Integration API | Onvif | ||
| Dimension(mm) | 38x38mm | ||
| Weight | Approx. 7.65g | ||
| Operating Temperature | -10°C~+50°C | ||
| Storage Temperature | -20°C~+60°C | ||
| Supply Voltage | 12VDC(±10%) | ||
| Power Consumption | N/A (under 170mA estimated) | ||
