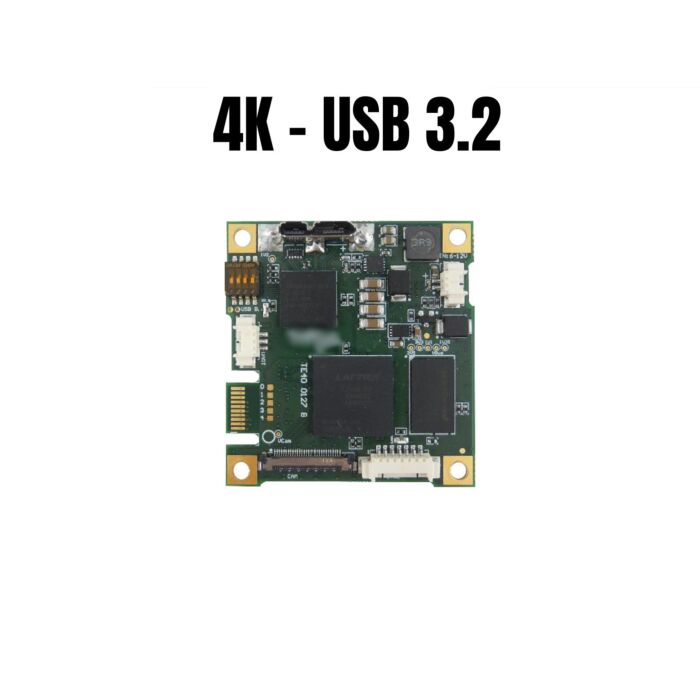

Aegis USB3.2-HDMI-4K Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
The Aegis USB3.2-HDMI-4K Interface Board for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras is a compact, high-performance USB3 SuperSpeed video capture module designed to capture uncompressed 4K video streams and transmit them over a single USB3.2 cable. Featuring simultaneous HDMI 2.0 output, it supports video resolutions up to 3840×2160p at 30fps. This interface board is UVC compliant, integrates VISCA camera control, and is compatible with Windows and Linux operating systems, making it an ideal solution for live video production, machine vision, and other professional applications.
The Aegis USB3.2-HDMI-4K Interface Board provides an efficient and reliable way to capture uncompressed 4K video from Sony FCB-ER Series cameras, including the Sony FCB-ER9500 and FCB-ER8530, and transmit it seamlessly over a single USB3.2 cable. In addition to the USB3.2 interface, the board offers a simultaneous HDMI 2.0 output for live display of the 4K video on external monitors or broadcast equipment. This versatile 4K-to-USB3.2 converter supports video resolutions up to 3840×2160p at 30fps, ensuring ultra-high-definition video capture with crystal-clear quality.
With support for USB Video Class (UVC), it integrates easily with various platforms and applications, eliminating the need for additional drivers or software. The device is also equipped with VISCA camera control via local UART, allowing for seamless remote camera control. It features GPIO pins for keypad connection, enabling user-defined control functions and added flexibility for industrial and professional use cases.
The Aegis USB3.2-HDMI-4K Converter Board is fully compatible with Windows and Linux operating systems, making it an ideal solution for diverse environments such as live video production, machine vision, and remote monitoring applications. Powered by an external 6V-12V DC power supply, it ensures stable and continuous operation, even in demanding use cases.
Features:
- Uncompressed 4K video stream
- Video resolution up to 2160p30
- USB Video Class (UVC) compliant
- USB CDC (COM port / tty)
- VISCA camera control via local UART
- GPIOs for keypad connection
- Supports Windows and Linux OS
- HDMI 2.0 output
- Camera external power supply 6V-12VDC *
- Compatible With 4K FCB-ER Series, FCB-ER9500 and FCB-ER8530
Applications:
- Live Video Streaming
- Machine Vision and Industrial Automation
- Remote Monitoring & Surveillance
- Video Capture for Broadcast and Post-Production
- Interactive Kiosk and Digital Signage
- Telemedicine and Remote Diagnostics
- Automated Robotics
- Professional AV Equipment and Conferencing Systems
| Digital Video Output | USB3.2 Gen 1 – UVC compliant |
| Camera Setting and Control | VISCA protocol via USB CDC or UART TTL |
| GPIO's | Camera commands |
| Digital Video Output Connector | USB3 micro B-type |
| Camera Power Supply | USB3 cable or external 6 to 12 VDC |
| HDMI Output | HDMI 2.0 type D |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -20°C to 60°C |
| Regulation | CE EMC compliant, PCB : UL 94 V0 |
| Dimensions | 48 (H) x 45 (W) x 18 (D) |
| Weight (g) | 24 |
