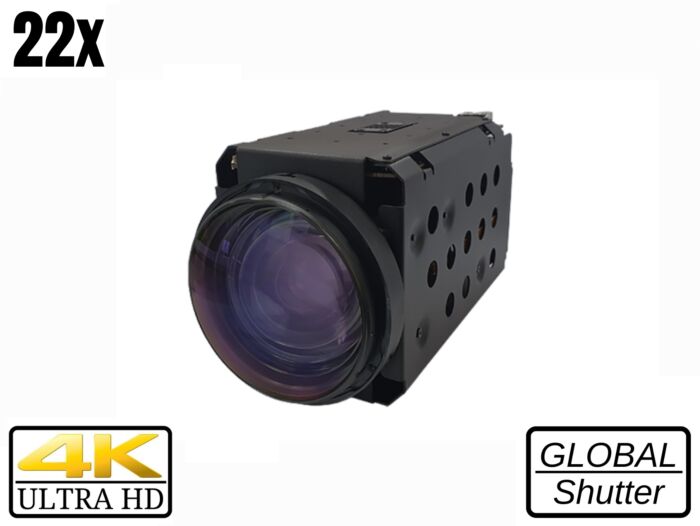

KT&C ATC-UZ5722U (ATCUZ5722U) 4K 8.95MP 2160P30 Global Shutter CMOS Camera with 22x Optical Zoom (Discontinued)
*Product is Discontinued, Call For Replacement Options
The KT&C ATC-UZ5722U features an 8.95MP Global Shutter CMOS sensor and 22x optical zoom, delivering 4K video resolution at 30fps. With effective low-light performance and advanced imaging features, it is perfect for surveillance applications.
The KT&C ATC-UZ5722U is a high-performance surveillance camera featuring a 1/1” Progressive Scan Global Shutter CMOS sensor that delivers 8.95 megapixels (4112(H) x 2176(V)). With HDMI (1.4b) and CVBS video outputs, it supports a maximum resolution of 3840x2160 at 30 frames per second. In day mode, the minimum illumination is 0.1 Lux (F1.6), dropping to 0.06 Lux (F1.6) in night mode, ensuring effective low-light performance.
This camera incorporates a powerful AF Optical Zoom lens with a focal length of 9.9mm to 217mm, offering a 22x optical zoom ratio and a digital zoom of 12x. The horizontal field of view ranges from 71.26° to 3.75°, providing flexibility for various surveillance scenarios. With features such as Digital Image Stabilization, 3D-DNR, and multiple exposure modes, the ATC-UZ5722U adapts to diverse lighting conditions. It operates on a 12V DC power supply, consuming a maximum of 8.7W and is designed for a temperature range of -10℃ to +50℃.
Features:
- 1/3.2” 1.3M SONY STARVIS CMOS
- Horzontal 850TV Lines
- CVBS(1.0Vp-p Composite 75Ω)
- Fixed lens 3.6mm (M9-Type)
- WDR, 2DNR
- Digital D&N
- Mini Square Camera
Applications:
- Surveillance Systems
- Traffic Monitoring
- Retail Security
- Campus Security
- Remote Monitoring
- Industrial Inspection
- Wildlife Observation
- Building Security
- Event Monitoring
- Public Safety Cameras
| Image Sensor | 1/1” Progressive Scan Global Shutter CMOS |
| Effective Pixels | 8.95MP 4112(H) x 2176(V) |
| Video Output Mode | HDMI(1.4b) / CVBS |
| Max. Video Resolution | HDMI(1.4b) : 3840x2160@30fps |
| Synchronization System | Internal |
| Min.Illumination | Day mode: 0.1(Lux(F1.6) Night mode: 0.06Lux(F1.6/ IR-cut filter on) Sens-Up off, AGC28dB |
| S/N Rate | More than 52dB(AGC off, Sens-Up off) |
| Lens | AF Optical zoom lens(P-Iris) |
| Focal Length | f=9.9mm~217mm |
| F-Value | F1.62(W)~5.4(T) |
| Angle Of View | Horizontal 71.26°(W)~3.75°(T), Vertical 41.54°(W)~1.98°(T) |
| Zoom Ratio | Optical 22x / Digital 12x |
| Focus Min.Working Distance | 0.5m(Wide)/10.0m(Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Shot/Preset |
| AE mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0~14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/10000 |
| Manual Iris | F1.6~F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/OnePush/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 16 Zones/14 mask color selectable, semi-transparency |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/Low/Middle/High |
| BLC | Off/On, Area selectable |
| HLC | Off/0~20, Color selectable |
| AGC | Max.48dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | On/Off(1~5) |
| 2D-DNR | Auto/Manual |
| Defog | Off/Low/Middle/High |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset |
| Language | English |
| Remote | RS232 TTL +5.0V(+3.3V compatible) |
| Protocol | VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection |
| Baud Rate | 2400/4800/9600/19200/38400/57600/115200bps |
| Supply Voltage | 12VDC(9V to 15VDC) |
| Power Consumption | Max.8.7W / Non-working zoom&focus 6.9W |
| Dimension (mm) | 79.5x86.2x175.4mm |
| Weight | Approx. 497g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
