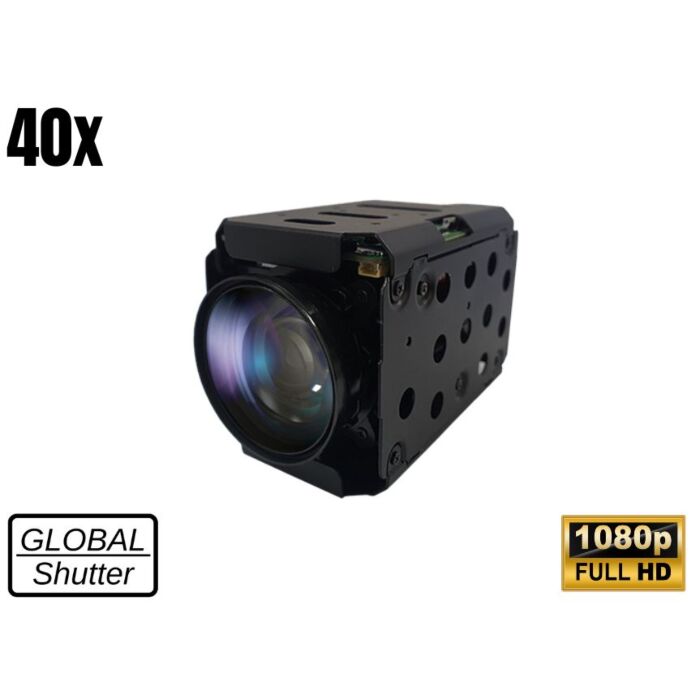

KT&C ATC-HZ8340T-LTA 2.3MP 1080P60 HD Camera with 40x Optical Zoom
The KT&C ATC-HZ8340T-LTA is a high-performance HD camera featuring a 1/2.6” Progressive Scan Global Shutter CMOS sensor, delivering superior image quality with a resolution of 1920x1200 pixels (2.3MP). This versatile camera supports multiple video output modes, including HD-SDI, EX-SDI (up to V3.0), CVBS, TVI, and AVI, with a maximum video resolution of 1080P at 60fps.
Incorporating advanced functionalities such as True Wide Dynamic Range (WDR) and 2D/3D Digital Noise Reduction (DNR), the ATC-HZ8340T-LTA enhances clarity and reduces distortion for diverse surveillance applications. It features mechanical Day/Night mode with a minimum illumination of 0.5 Lux (day) and 0.3 Lux (night). The camera also supports various exposure settings, including Auto and Manual modes, for precise control over brightness and shutter speed (up to 1/30000). Connectivity options include UART RS232-TTL compatibility (Pelco-D/P/C, VISCA), enabling seamless integration into existing systems. With a power consumption of 6.4W and operating temperatures between -10℃ to +50℃, the ATC-HZ8340T-LTA is engineered for robust performance in varied environments.
Features:
- NDAA compliant
- Image Sensor: 1/2.6” Progressive Scan Global Shutter CMOS
- Resolution: 1920x1200 pixels (2.3MP)
- Video Output Modes: HD-SDI, EX-SDI (up to V3.0), CVBS, TVI, AVI
- Max Video Resolution: 1080P at 60fps
- Optical Zoom: 40x (4.25mm to 170mm)
- Digital Zoom: 12x
- Wide Dynamic Range (WDR): True Wide Dynamic Range for improved image quality
- Noise Reduction: 2D/3D Digital Noise Reduction (DNR)
- Image Stabilization: Digital Image Stabilization (DIS)
- Illumination: Minimum 0.5 Lux (day), 0.3 Lux (night)
- Exposure Settings: Auto, Iris Priority, Manual (up to 1/30000 sec)
- Connectivity: UART RS232-TTL compatibility (Pelco-D/P/C, VISCA)
- Power Consumption: 6.4W
- Operating Temperature: -10℃ to +50℃
Applications:
- Surveillance
- Traffic Monitoring
- Retail Security
- Industrial Security
- Public Spaces
| Image Sensor | 1/2.6" Progressive Scan Global Shutter CMOS |
| Effective Pixels | 2.3MP 1920(H) x 1200(V) |
| Video Output Mode | HD-SDI/EX-SDI(V1.0)/EX-SDI(V2.0)/EX-SDI(V2.1)/EX-SDI(V3.0(TBD))/CVBS/TVI/AVI/LVDS |
| Max. Video Resolution | HD-SDI/LVDS/EX-SDI: 1080p@60(50fps) |
| Synchronization System | Internal |
| Min. Illumination | Day mode: 0.5Lux(F1.6) Night mode: 0.3Lux(F1.6/IR-cut filter on) |
| S/N Rate | More than 55dB(AGC off, Sense-up off) |
| Lens | AF Optical zoom lens(DC Iris), IR Corrective f=4.25mm~170mm F1.6(W)~4.95(T) Horizontal 67.4°(W)~2.0°(T), Vertical 40.6°(W)~1.2°(T) |
| Zoom Ratio | Optical 40x / Digital 12x |
| Focus Min. Working Distance | 0.01m(Wide)/3.0m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Shot/Manual/Preset |
| AE mode | Auto/Iris Priority/Shutter Priority/Manual |
| Brightness | 1~20 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50)~1/30000 |
| Manual Iris | F1.6~F19, Close |
| Sense-up | Off~32fields |
| ETC | Slow AE |
| D&N Mode | Auto/Color(Day)/B&W(Night)/EXT-H/EXT-L |
| White Balance | AUTO/Indoor/Outdoor/One Push/ATW/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Yes |
| Power Source | DC 12V ± 10% / PoE |
| Power Consumption | 6W |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Humidity | Less than 90% RH (non-condensing) |
| Dimension (WxHxD) | Ø126mm x 113mm (Ø4.96" x 4.45") |
| Weight | 1.05kg (2.31lbs) |
