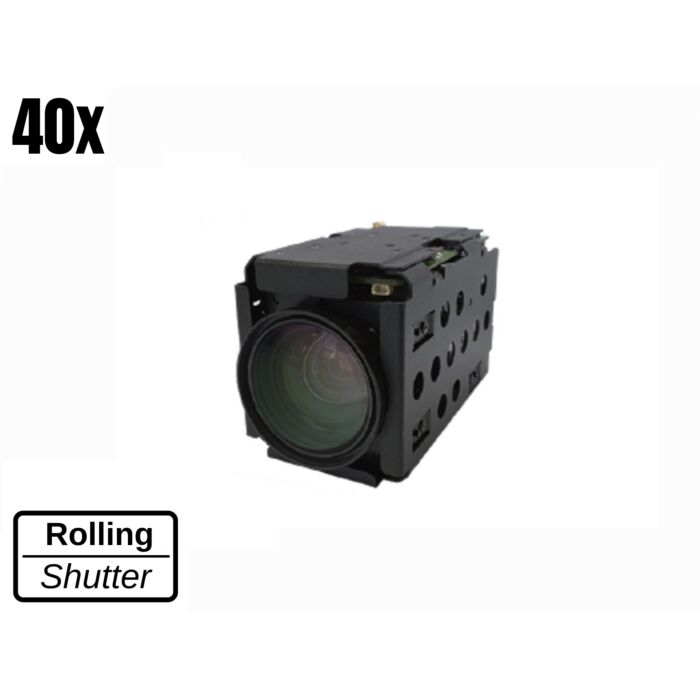

KT&C ATC-HZ8240T-LCN (ATCHZ8240TLCN) 2.13MP 1080P60 STARVIS CMOS Camera with 40x Optical Zoom and True WDR

The KT&C ATC-HZ8240T-LCN is a high-performance surveillance camera featuring a 1/2.8" SONY Progressive Scan STARVIS CMOS sensor for crisp 1080p video output at 60/50/30/25fps. It offers an impressive 480x zoom (40x optical, 12x digital) for detailed imaging over large distances. With mechanical day/night functionality, True Wide Dynamic Range (WDR), and 3D Digital Noise Reduction (DNR), it captures clear images in diverse lighting.

This NDAA compliant camera includes a DC Iris lens with a focal length of 4.25–170mm, achieving a horizontal view of 65.7° to 1.9° and vertical view of 39.4° to 1.1°. Minimum illumination is 0.1Lux in day mode and 0.07Lux at night (IR-cut filter on). Multiple video outputs (HD-SDI, EX-SDI V1.0–V3.0, CVBS) enhance integration flexibility. Additional features include 256 position presets, digital image stabilization, 8 privacy zones, motion detection, and multi-language support. The unit operates in temperatures from -10℃ to +50℃.

Features:

• 1/2.8" SONY Progressive Scan STARVIS CMOS sensor, 2.13MP
• 1080P60/50/30/25 fps high-definition video
• AF Optical Zoom Lens: f=4.25–170mm (40x optical, 12x digital)
• Mechanical Day/Night with IR-cut filter
• True WDR, D-WDR, BLC/HLC support
• 2D-DNR and 3D-DNR for low-light noise reduction
• Defog, digital image stabilization, and motion detection (4 zones)
• UART RS232-TTL control with VISCA, Pelco-D/C, Hitachi protocols
• Preset positions: 256 (zoom/focus) and 16 memory presets
• Operating temperature: -10℃ to +50℃, storage: -20℃ to +60℃

Applications:

• Traffic & Transportation
• City-Wide Surveillance
• Perimeter Security
• Critical Infrastructure
• Event Security
• Border & Coastal Surveillance
• Port Security
• Covert Operations
• Industrial Monitoring
• Marine Surveillance
