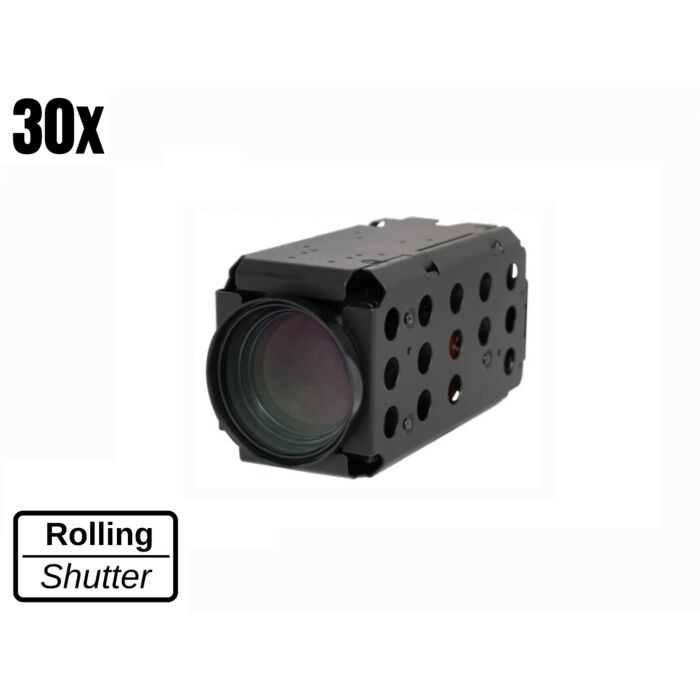

KT&C ATC-HZ7830Z-LTN (ATCHZ7830ZLTN) 2.13MP Block Camera with 30x Optical Zoom 1080P60 Output

The KT&C ATC-HZ7830Z-LTN is a high-performance block camera engineered for superior surveillance applications. Featuring a 1/2.8" Exmor R Progressive Scan CMOS image sensor, this camera delivers impressive effective pixels of 2.13MP, producing a resolution of 1945(H) x 1097(V). It supports multiple video output modes, including LVDS, SDI, and CVBS, achieving a maximum video resolution of 1080p at 60 fps in LVDS/SDI/CVBS mode and 30 fps in TVI mode.

Designed for optimal low-light performance, the ATC-HZ7830Z-LTN operates at a minimum illumination of just 0.5 Lux in day mode and 0.16 Lux in night mode with an IR-cut filter engaged. The integrated AF optical zoom lens, with a focal length of 4.3 to 129 mm, offers 30x optical zoom and 12x digital zoom for exceptional detail. Advanced features include a wide dynamic range (D-WDR), digital image stabilization, and 3D/2D noise reduction, ensuring reliable operation in diverse environments.

Features:

• NDAA compliant
• 1/2.8" Exmor R Progressive Scan CMOS, 2.13MP resolution
• LVDS, SDI, CVBS, and TVI video output formats
• 1080p at 60 fps (LVDS/SDI/CVBS) and 30 fps (TVI)
• Minimum illumination: 0.5 Lux (day mode), 0.16 Lux (night mode with IR-cut)
• 4.3 to 129 mm focal length, 30x optical zoom, 12x digital zoom
• Wide dynamic range (D-WDR)
• Digital image stabilization
• 3D and 2D noise reduction
• Up to 256 customizable preset positions
• 16 privacy mask zones with selectable colors
• Operating temperature: -10°C to +50°C, humidity: 20% to 80%
• RS232 TTL remote control compatibility with VISCA, Pelco-D, and Pelco-P protocols

Applications:

• Surveillance and Security
• Traffic Monitoring
• Public Transportation
• Industrial Monitoring
• Education Institutions
• Event Surveillance
• Home Automation
• Healthcare Facilities
