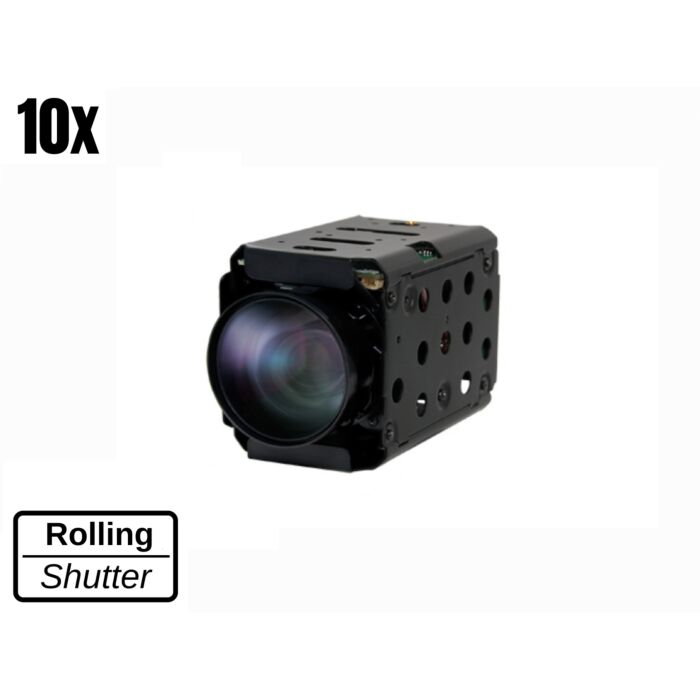

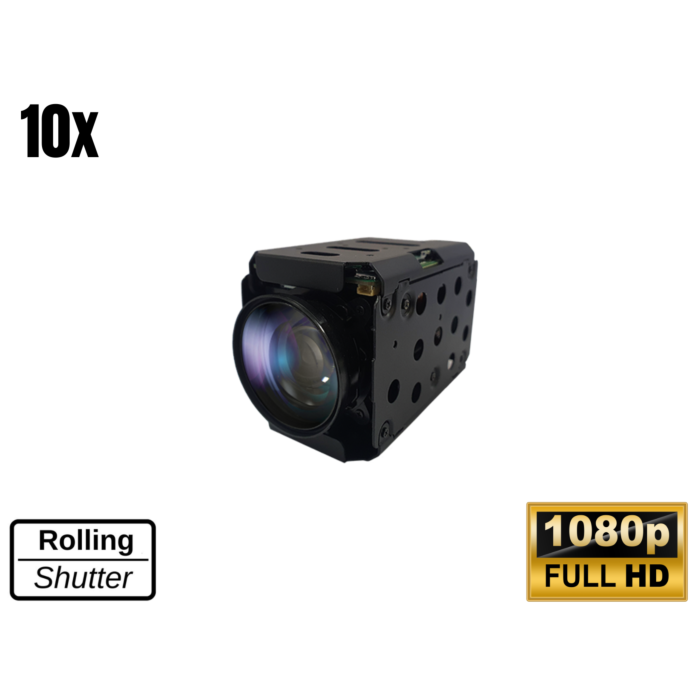

KT&C ATC-HZ7810C-TNB3 Small Inspection 10x Block Cameras

The ATC-HZ7810C-TNB3 is 1/2.8" SONY EXMOR R Progressive Scan CMOS 10X Optical camera that supports CVBS, HD-TVI & RS232. The ATC-HZ7810-TNB3 is part of the KT&C ATC-HZ7810 Full-HD Zoom Camera Series and ATCHZ7810CTNB3, ATC-HZ7810CTNB3

SKU
ATC-HZ7810C-TNB3

Introducing the KT&C ATC-HZ7810C-TNB3 Small Inspection 10x Block Cameras – a testament to precision and versatility in surveillance technology. These high-performance CCTV cameras redefine the boundaries of imaging excellence, making them essential tools in various applications, including CCTV, security, surveillance, and specialized areas like sewer and pipe inspection.

At the heart of the ATC-HZ7810 Product Series is a remarkable 1/2.8” 2.13M Exmor R CMOS Image Sensor. This sensor, combined with FULL HD (high definition) support, delivers high-quality images with exceptional clarity and detail. The newly developed image signal processor enhances dynamic range through progressive scan, ensuring clear images even in challenging lighting conditions, thanks to the Wide Dynamic Range function (WDR).

Experience the power of the bright zoom lens, offering 10x optical zoom and an F1.6 aperture. With optical zoom paired with digital zoom, the total zoom capability reaches an impressive 120x. This feature ensures that no detail goes unnoticed, making these cameras an excellent choice for precision surveillance.

Low-light environments are no challenge for the ATC-HZ7810CTNB3 cameras. The Noise Reduction function (3DNR/2DNR) produces low-noise images, guaranteeing clarity even in adverse conditions. Infrared (IR) Cut-Filter disengagement increases sensitivity in low light, with automatic ICR activation ensuring day/night effectiveness.

Customization is key with these cameras. The Privacy Zone Masking function (up to 16 blocks) ensures sensitive areas remain private. The Motion Detection function alerts you to any movement, enhancing surveillance efficiency. The option to display a title composed of up to 21 lines, with 30 characters per line, allows for clear and concise information overlay on the screen.

The ATC-HZ7810C-TNB3 cameras offer versatile digital output options depending on your needs: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 1080i/50, 1080i/60.

In conclusion, the KT&C ATC-HZ7810C-TNB3 Small Inspection 10x Block Cameras redefine precision and versatility. With their powerful features, advanced sensor technology, and comprehensive customization options, they stand as indispensable tools in surveillance and specialized applications. Elevate your surveillance capabilities with the ATC-HZ7810C-TNB3 cameras and experience an unmatched level of clarity and performance.


Features:

  • This camera uses a 1/2.8” 2.13M Exmor R CMOS
  • Image Sensor that supports FULL HD (high definition) to produce high-quality images.
  • Using progressive scan, images with a wide dynamic range can be obtained with the newly developed image signal processor (WideDynamic Range function, WDR)
  • The camera is equipped with a bright zoom lens with 10× optical zoom and F1.6 aperture (optical zoom + digital zoom = 120×)
  • Low-noise images can be obtained even in low- light environments using the Noise Reduction function(3DNR/2DNR)
  • Video signals can be output as digital only
  • Depending on register settings, you can select from a variety of digital output methods: 1080p/60,1080p/50,1080p/30, 1080p/25, 720p/60,720p/50,720p/30, 720p/25, 1080i/50, 1080i/60
  • An infrared (IR) Cut-Filter can be disengaged from the image path for increased sensitivity in low light environments. The ICR will automatically engage depending on the ambient light, allowing the camera to be effective in day/night environment
  • A Privacy Zone Masking function (max. 16 blocks) is available
  • A Motion Detection function is available
  • A title composed of up to 21 lines can be set for display on the screen. 30 characters can be used on one line (VISCA)


Applications:

  • CCTV
  • Security
  • Surveillance
  • Sewer and Pipe Inspection
Format / Models ATC-HZ7810LSC
ATC-HZ7810LC
ATC-HZ7810SC
ATC-HZ7810C-TNB3

Video System
Image Sensor
Effective Pixels

1/2.8”Exmor R CMOS image sensor (STARVIS)
2.13 million pixels (1945(H) x 1097(V))

Output Format

SDI/CVBS : 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50 TVI/CVBS

Sync System

Internal

CVBS scale

16:9 / 4:3 (CVBS 720H)

LVDS mode

Single / Dual N/A N/A

 Video Output (NOTE1)

EX-SDI(V1.0) / HD-SDI / CVBS CVBS
LVDS LVDS N/A N/A



Min. illumination
Day
Night (IR-cut filter on)
S/N ratio(AGC off , DSS off



0.5 Lux @ F1.6
0.1 Lux @ F1.6
More than 52 dB
Optical Lens
Zoom Magnification
Practical f-value
Practical Horizontal-Angle
Practical Vertical Angle
Practical Diagonal Angle
F-value
X10
5.1 to 51.0 mm
54.0°(W) ~ 4.9°(T)
31.0°(W) ~ 4.0°(T)
68.0°(W) ~ 6.7°(T)
F1.6(W ) ~ F1.8(T)
Zoom
Maximum Zoom Ratio
Optical Zoom Ratio
Digital Zoom Ratio
Digital Pan/Tilt
Speed (Focus Tracking On)
(Focus Tracking Off)
x1 ~ x120
x1 ~ x10
x1 ~ x12
-
2.5 ~ 30 sec
2.0 sec
Focus
Control Mode
Focal Range
IR correction
Auto / Manual / Interval / One Shot(=Zoom Trigger, One Push)/PRESET
Infinity~ 1.0m(T)~0.01m(W)
Standard/IR Light
Day & Night
D&N mode
Night Color
Auto / Day (Color) / Night (BW) / External-H / External-L
Off/On
White Balance Auto / ATW / Indoor / Outdoor / Push / Manual
Exposure
AE mode
Brightness (Exp.Comp)
AGC Limit
Manual Shutter
Manual AGC
Manual Iris
Sens-Up
ETC
Auto / Shutter Priority / Iris Priority/ Manual / Bright
0~ 14
-3dB ~ 58dB
X32~x2,1/25(30)/1/50(60) ~ 1/30000
-3dB ~ 58dB
F1.6 ~ F19, Close
Off ~ 32fields
Spot AE, Slow AE response
