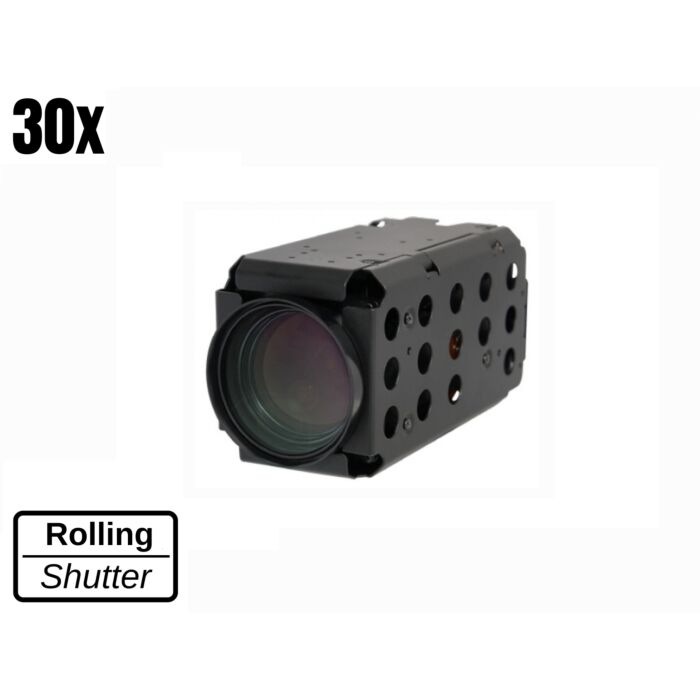

KT&C ATC-HZ5630T-LPX (ATCHZ5630TLPX) 2.13MP PTZ 1080P60 30x Optical Zoom Low-Light Sensitivity Camera
The KT&C ATC-HZ5630T-LPX is a high-performance PTZ camera that leverages a 1/2.8” SONY EXMOR R Progressive Scan CMOS sensor, delivering an effective resolution of 2.13MP (1945 x 1097 pixels). It supports multiple video output modes, including LVDS, Parallel, CVBS, TVI, and AVI, with a maximum resolution of 1080p at 60fps over LVDS/Parallel and 30fps over TVI/AVI.
This NDAA compliant camera excels in low-light conditions, achieving a minimum illumination of 0.05Lux in night mode. The 30x optical zoom (4.3mm to 129mm, F1.6 to F5.0) and 12x digital zoom enhance its versatility for capturing distant subjects. Advanced exposure features include auto, shutter priority, and AGC priority, while 2D-DNR and 3D-DNR reduce noise, ensuring clarity. The adjustable wide dynamic range (WDR) enhances performance in challenging lighting, and the camera includes 14 selectable privacy mask colors for customized surveillance solutions.
Operating within -10℃ to +50℃ temperatures and powered by 12VDC (max consumption of 6.4W), the KT&C ATC-HZ5630T-LPX is designed for reliability and performance across a variety of environments.
Features:
- 1/2.8” SONY EXMOR R Progressive Scan CMOS sensor
- Effective resolution: 2.13MP (1945 x 1097)
- 30x optical zoom / 12x digital zoom
- 1080p video up to 60fps (LVDS/Parallel), 30fps (TVI/AVI)
- Mechanical day/night with IR-cut filter
- True WDR, BLC, HLC, 3D-DNR, Defog
- ICT (Image Center Tracking) for dynamic monitoring
- RS232 TTL control, Pelco-D/P/C, VISCA, Hitachi compatible
- 256 position presets, 16 memory presets, custom preset support
- Low power consumption: max 6.4W
Applications:
- Perimeter Security
- Critical Infrastructure Surveillance
- Traffic Monitoring
- Urban Surveillance
- Public Space Monitoring
- Border Security
- Industrial Facility Security
| Image Sensor | 1/2.8” SONY EXMOR R Progressive Scan CMOS |
| Effective Pixels | 2.13MP 1945(H) x 1097(V) |
| Video Output Mode | LVDS/Parallel/CVBS(LP, LPX) TVI/AVI/CVBS(TA) |
| Max. Video Resolution | LVDS / Parallel : 1080p@60(50fps) TVI/AVI : 1080p@30(25fps) |
| Synchronization System | Internal/External Options |
| Min. Illumination | Day mode: 0.1Lux(F1.6) Night mode: 0.05Lux(F1.6/ IR-cut filter on) |
| S/N Rate | More than 55dB (AGC off, DSS off) |
| Lens | AF Optical zoom lens (DC Iris), IR Corrective f=4.3~129mm F1.6 (W) to 5.0 (T) Horizontal 53.9°(W)~1.93°(T), Vertical 39.8°(W)~1.41°(T) |
| Zoom Ratio | Optical 30x / Digital 12x |
| Focus Min. Working Distance | 0.1m(Wide)/1.5m(Tele)~Infinite |
| Focus Control | Auto/Interval/One Push/Manual/Preset |
| AE Mode | Auto/Shutter Priority/Iris Priority/AGC Priority/Manual |
| Brightness | 0-14 |
| Manual Shutter | 1/1, 1/2, 1/4(3), 1/8(6), 1/15(12), 1/30(25), 1/60(50) to 1/10000 |
| Manual Iris | F1.6 to F32, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/One Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V (180° Flip) |
| Privacy Mask Zone | 8 Zones/14 mask color selectable |
| Digital Image Stabilization | Disabled on this model |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/On, Adjustable (Level:0~29, Contrast:0~5, Bright:0~19) |
| BLC | Off/On, Area selectable |
| HLC | Off/On, Area selectable |
| AGC | Max.72dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | Off/Auto/Low/Middle/High |
| 2D-DNR | Off/Auto/Low/Middle/High |
| Defog | Off/On/Auto |
| Preset | 256 Position Presets(Zoom, Focus), 16 Memory Presets, Custom Preset |
| Language | English |
| UART | RS232 TTL +5.0V (+3.3V compatible) VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection 2400/4800/9600/19200/38400/57600/115200 bps |
| Supply Voltage | 12VDC (9V to 15VDC) |
| Power Consumption | Max.6.4W / Non-working zoom&focus 3.8W |
| Dimension (mm) | 50 X 58.8 X 90.5mm |
| Weight | Approx. 244g |
| Operating Temperature | -10℃~+50℃, Humidity(Less than 90%) |
| Storage Temperature | -20℃~+60℃, Humidity(Less than 90%) |
