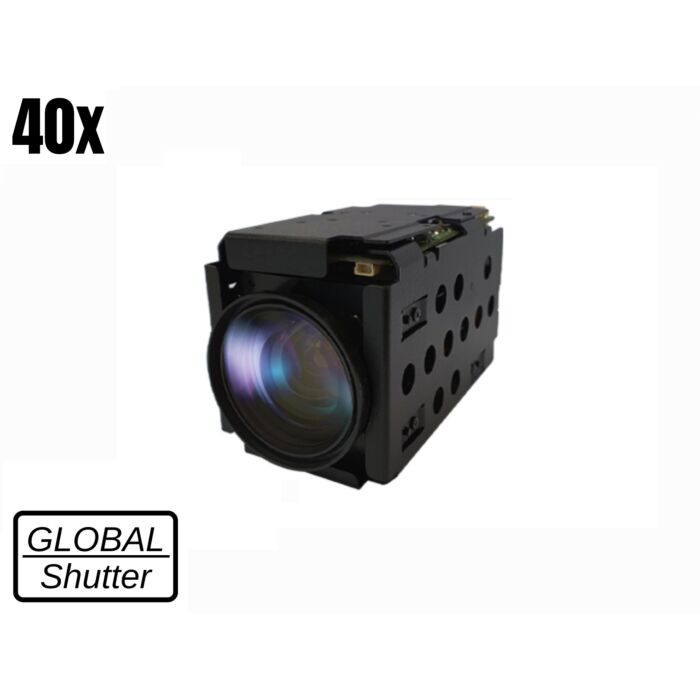

KT&C ATC-HZ5540T-LPN (ATCHZ5540TLPN) 1.58MP Global Shutter CMOS 720P60 Output 40X Optical Zoom Block Camera

The KT&C ATC-HZ5540T-LPN is a NDAA compliant, high-performance surveillance camera featuring a 1/2.9" Progressive Scan Global Shutter CMOS sensor, delivering a resolution of 1.58MP (1456x1088) and supporting a maximum video output of 720P60. Designed for versatility, it excels in low-light conditions with a minimum illumination of 0.01Lux in day mode and 0.007Lux in night mode. The camera is equipped with an AF optical zoom lens, offering a focal length range of 4.25mm to 170mm (F1.6 to F4.95) and a 40x optical zoom capability, allowing for detailed image capture across various distances.

In addition to its impressive optical performance, the ATC-HZ5540T-LPN incorporates advanced features such as digital image stabilization, adjustable Wide Dynamic Range (WDR), and programmable privacy masking zones. With support for multiple output modes (LVDS, Parallel, CVBS) and connectivity options including RS232 UART for VISCA and Pelco protocols, this camera is easily integrated into existing security systems. Operating on a 12VDC power supply and weighing approximately 244g, it is designed to function effectively in temperatures ranging from -10℃ to +50℃, making it a reliable choice for both indoor and outdoor surveillance applications.

Features:

• 1/2.9 Progressive Scan Global Shutter CMOS
• 480x AF Zoom(40x optical zoom, 12x digital zoom)
• 720p 60/50/30/25fps
• Mechanical Day&Night
• True WDR
• 3D DNR, Defog
• Global Shutter, Trigger In&Strobe Out
• UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

Applications:

• Military
• Unmanned Aerial Vehicle
• Remote Ocean Vehicle
• Security Monitoring
• Intelligent Traffic
• Remote Monitoring
• Inspection
• Video Conferencing
• Surgical Light Zoom Camera
• Medical Autofocus Camera
