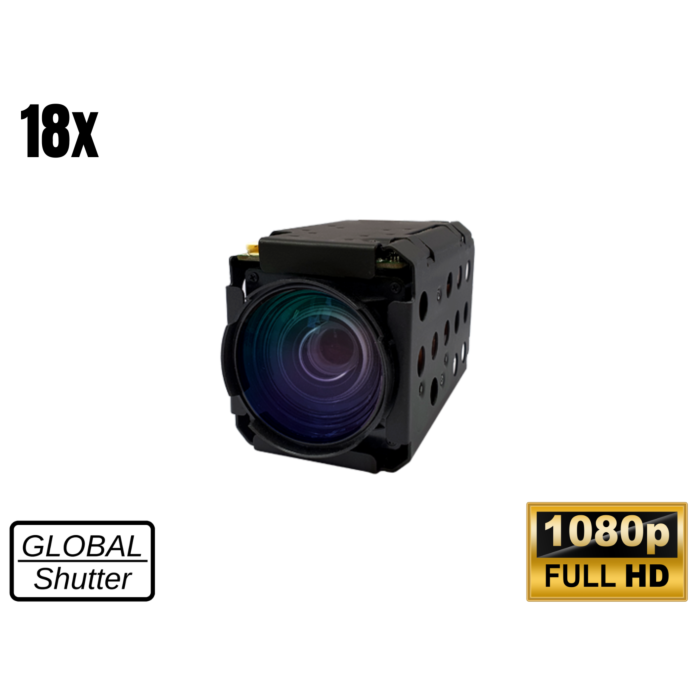

KT&C ATC-HZ5518W-U (ATCHZ5518WU) 1080P60 High-Performance PTZ Camera with 1/1.8” Global Shutter CMOS, 18x Optical Zoom

The KT&C ATC-HZ5518W-U is a high-performance PTZ camera featuring a 1/1.8" Progressive Scan Global Shutter CMOS sensor that delivers exceptional image quality with an effective resolution of 3.19MP (2064 x 1544 pixels). It supports video output up to 1080p at 60, 50, 30, and 25 fps, making it ideal for demanding surveillance applications. The camera boasts an 18x optical zoom and a 12x digital zoom, ensuring detailed image capture even at great distances.

Key features include mechanical Day & Night functionality, NDAA compliance, True Wide Dynamic Range (WDR), and advanced 3D Digital Noise Reduction (DNR) for clear imaging in low-light environments, with a minimum illumination of 0.1 Lux in day mode and 0.05 Lux at night. The compact design (51 x 59 x 97.6 mm) and lightweight build (approximately 277g) facilitate easy installation, while its operating temperature range of -10℃ to +50℃ ensures reliable performance in various conditions. With versatile connectivity options like UART RS232-TTL and comprehensive adjustable settings, the KT&C ATC-HZ5518W-U is engineered for superior surveillance effectiveness.

Features:

• 1/1.8 Progressive Scan Global Shutter CMOS
• 216x AF Zoom(18x optical zoom, 12x digital zoom)
• 1080p 60/50/30/25fps
• Mechanical Day&Night
• True WDR
• 3D DNR, Defog
• Global Shutter, Trigger In&Strobe Out
• UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)

Applications:

• Urban Surveillance
• Retail Security
• Traffic Management
• Factory Surveillance
• Campus Security
• Airport Security
• Public Event Monitoring
