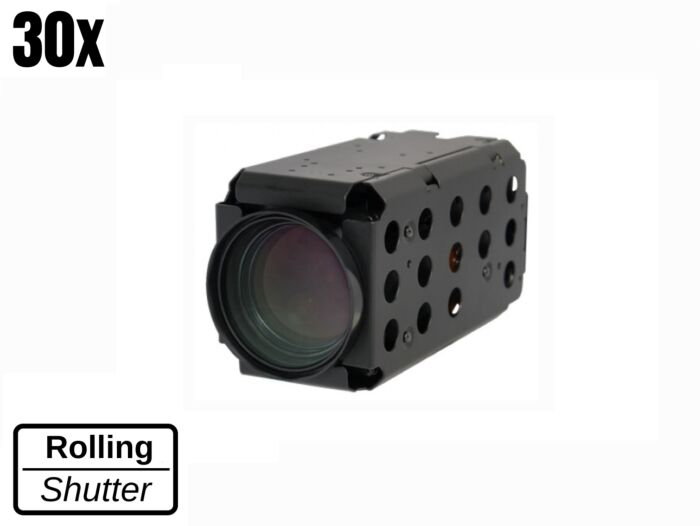

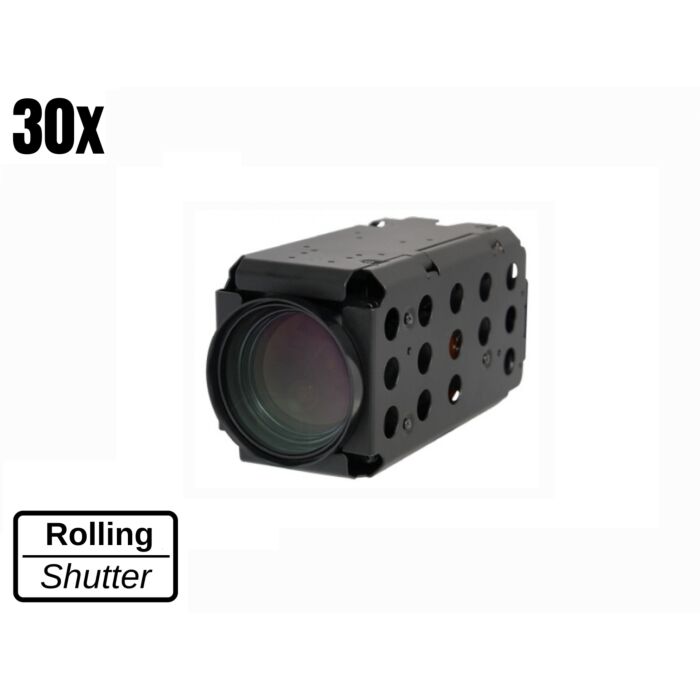

KT&C ATC-HZ5230Z-LCN (ATCHZ5230ZLCN) 2.13MP 30x Zoom CMOS Camera Module with 1080P60, LVDS/Parallel Output

The NDAA compliant KT&C ATC-HZ5230Z-LCN camera module is a high-performance imaging solution with a 1/2.8" progressive scan CMOS sensor, delivering 2.13MP resolution at 1080P60. Supporting LVDS, Parallel, and CVBS video outputs, this module is designed for applications needing both clarity and adaptability. Its 30x AF optical zoom lens (5.0–150mm) ensures exceptional focal range and sharpness, with IR correction for consistent performance in varied lighting.

For low-light environments, the ATC-HZ5230Z-LCN achieves a minimum illumination of 0.05 Lux (Day) and 0.03 Lux (Night) with Sens-Up and AGC up to 45dB. It includes WDR (adjustable up to level 29), 3D/2D-DNR noise reduction, and exposure options like Auto, Shutter Priority, and Manual control. Privacy Masking, Motion Detection (4 zones), and Digital Image Stabilization enhance its functionality, while RS232 TTL (VISCA, Pelco-D/P) support offers reliable communication and control across multiple protocols and baud rates. Compact and energy-efficient, this module operates from -10°C to +50°C with a maximum power consumption of 6.4W.

Features:

• 2.13MP CMOS sensor with 1080P60 resolution
• 30x IR-corrected optical zoom
• Low-light sensitivity down to 0.03 Lux (Night mode)
• Wide Dynamic Range (WDR) and 3D-DNR for enhanced image clarity
• Digital Image Stabilization for steady visuals
• Multi-format LVDS and Parallel video output
• RS232 TTL control with VISCA, Pelco-D/P protocol support
• Operates in temperatures from -10°C to +50°C

Applications:

• Security surveillance for high-resolution monitoring
• Traffic monitoring with high frame rate and stabilization
• Industrial inspection requiring detailed imaging
• Medical imaging in low-light environments
• Integration in robotics and UAVs for inspection and reconnaissance
