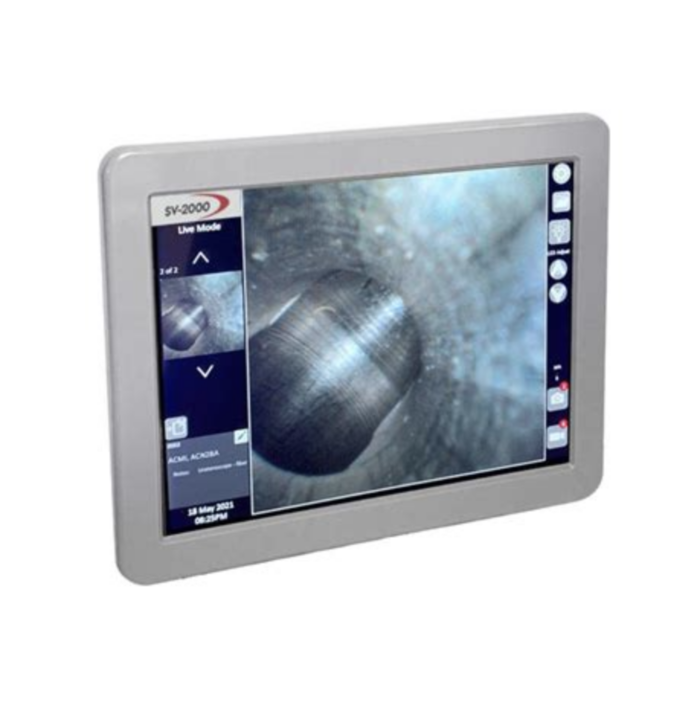

Canon Medical Components SV-2T01N Integrated 10" Touchscreen Tablet Display
SKU
SV-2T01N
Quick Overview
Tablet with integrated touchscreen display and on-board recording
The Canon Medical SV-2T01N (SV2T01N) Tablet & Camera Control Unit is an advanced device that effectively manages video output for the Canon SV-2000 Video Borescope System. This cutting-edge equipment boasts several features, including a high-resolution 10" touchscreen, HDMI and USB 3.0 video output at 30 fps, and the ability to capture .PNG stills and MPEG4 video with annotations.
Features:
- On-board image recording & playback
- Image annotation
- Image export to USB media
- Magic Light feature for brightness control
- HDMI® and USB 3.0 outputs
- USB 3.0 output for streaming connection to PC
- Manual and Auto brightness control
- White Balance and Calibration functions
- Firmware updates via USB
| TABLET CONFIGURATIONS | SV-2T01N Tablet |
| Display | Integrated, 10" class touchscreen |
| Touchscreen format | Capacitive |
| Output | Simultaneous HDMI, USB 3.0 (UVC) |
| Output frame rate | 30 fps |
| PC required for use | No |
| Recorded image formats | .PNG stills, MPEG4 clips |
| Image record | Image capture, review, annotation, export/import USB media |
| Key Functions | Auto/Manual brightness white balance, calibration |
| Water resistance rating | None |
| CCU dimensions W L H | 251 x 48 x 206 mm (9.9 x 1.9 x 8.1") |
| CCU weight | 1.25 kg (2.8 lbs) |
| Mounting | VESA 75, internal kickstand |
| Power input | 12V DC, 0.6A |
| Environmental | Operating temperature: 10 ° to 35 °C Humidity: up to 75% non-condensing Storage temperature: -20 ° to 70 °C |
| Included accessories | 12V DC power adapter 6’ HDMI cable 6’ USB 3.0 cable type A to type B USB media FAT32 16GB minimum |
