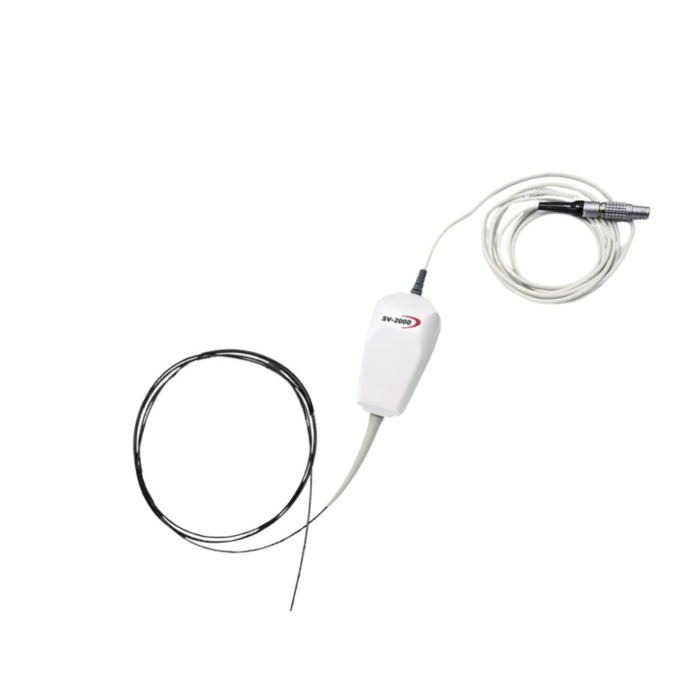

Canon Medical Components SV-2H03N 0.89 mm x 1.2 m Flexible Digital Video Borescope Probe for SV-2000 System

Name: Canon Medical Components SV-2H03N 0.89 mm x 1.2 m Flexible Digital Video Borescope Probe for SV-2000 System
SKU: SV-2H03N

SKU

SV-2H03N

Please call for pricing

Quick Overview

Compact 0.89 mm Canon borescope probe for the SV-2000 system with LED illumination, 400×400 resolution, and IPX7 waterproof rating—optimized for micro-inspection and medical device imaging.

Overview

Designed for precision inspections, the Canon SV-2H03N Borescope Probe delivers exceptional imaging performance when paired with the Canon SV-2000 video borescope system. It features an ultra-thin 0.89 mm diameter and 1.2 m flexible length, enabling clear visualization of confined or complex internal components. The CMOS progressive sensor captures high-resolution 400 × 400 pixel video and still images with a 120° field of view and up to 12x magnification, ensuring detailed, distortion-free inspection results.

Built for reliability in demanding technical and medical applications, the SV-2H03N integrates a LED-coupled glass fiber bundle for bright, uniform illumination. Its IPX7 water-resistant construction makes it well-suited for cleanroom, wet, or sterile environments. The probe connects seamlessly to Canon SV-2000 control units—either tablet-based or non-display models—offering flexible operation and rapid image capture for precision manufacturing and diagnostics.

Features:

0.89 mm ultra-small flexible probe
400 × 400 resolution CMOS progressive sensor
LED-coupled glass fiber illumination
120° wide field of view with up to 12x magnification
IPX7 water-resistant construction
Plug-and-play with SV-2000 CCU or tablet unit
1/4"-20 threaded handle mount

Applications:

Medical inspection
Precision tooling
Micro assembly
Catheter testing
Component analysis

Specifications

Model	SV-2H03N 0.89 x 1.2m
Scope Assembly Diameter	0.89 mm
Scope sheath length tip-to-handle mount	1.2m
Cable length handle mount to CCU	2.0m
Total cable and sheath length, tip to CCU	3.2m
LED location	Handle mount
Illumination	LED coupled glass fiber bundle
Sensor
Type	CMOS Progressive
Size (optical format)	0.65 x 0.65 (1/31")
Pixel matrix	400 x 400
Electronc shutter	Rolling
Optics
FOV - field of view	120°
Depth of focus	3 to 30 mm
Magnification - depends on viewing distance	up to 12x
F number	f 2.8
Focal length	0.175 mm
Water resistance rating	IPX7
Camera head / handle mounting	1/4 - 20 threaded socket
Handle dimensions	85 x 44 x 39 mm (3.3 x 1.7 x 1.5")
