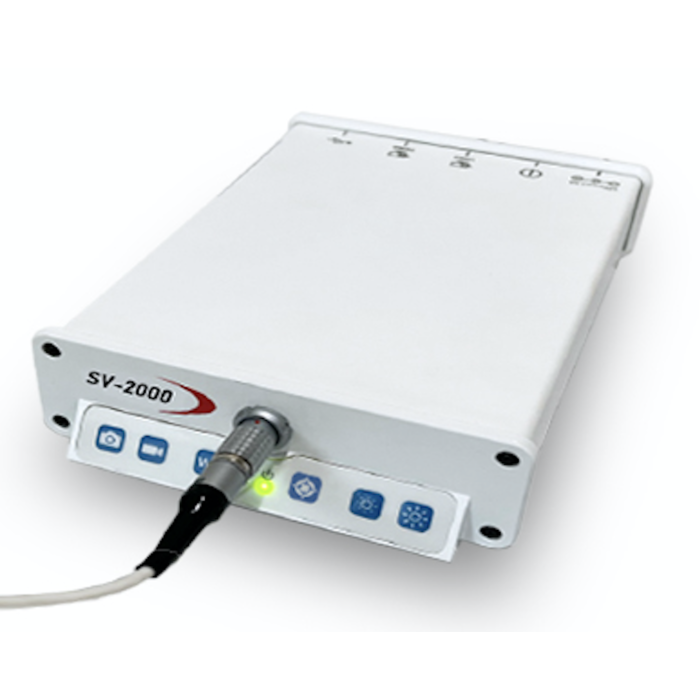

Canon SV-2D01N Non-display Camera Control Unit
The Canon Medical SV-2D01N Camera Control Unit is an essential component of the Canon SV-2000 Video Borescope System, providing precise control and processing of video output. With simultaneous HDMI and USB 3.0 video output at 30 fps, advanced capturing features such as .PNG stills and MPEG4 video to USB media, and adjustable auto/manual brightness and white balance controls, this Camera Control Unit delivers exceptional image quality and performance. The SV-2000 Video Borescope System is a leading inspection tool for finely-machined medical components, including delicate catheters, medical tubing, and pacemaker components. Its innovative design and features make it an ideal choice for precise and efficient medical device inspection.
Features:
- HDMI® and USB 3.0 outputs
- USB 3.0 output for streaming connection to PC
- Manual and Auto brightness control
- White Balance and Calibration functions
- Firmware updates via USB
| CCU CONFIGURATIONS | SV-2D01N Non-display CCU |
| Display | External (not included) |
| Touchscreen format | N/A |
| Output | Simultaneous HDMI, USB 3.0 (UVC) |
| Output frame rate | 30 fps |
| PC required for use | No |
| Recorded image formats | .PNG stills, MPEG4 clips |
| Image record | Image capture to USB media |
| Key Functions | Auto/Manual brightness white balance, calibration |
| Water resistance rating | None |
| CCU dimensions W L H | 140 x 200 x 43 mm (5.5 x 7.9 x 1.7") |
| CCU weight | 0.95 kg (2.1 lbs) |
| Mounting | N/A |
| Power input | 12V DC, 0.6A |
| Environmental | Operating temperature: 10 ° to 35 °C Humidity: up to 75% non-condensing Storage temperature: -20 ° to 70 °C |
| Included accessories | 12V DC power adapter 6’ HDMI cable 6’ USB 3.0 cable type A to type B USB media FAT32 16GB minimum |
