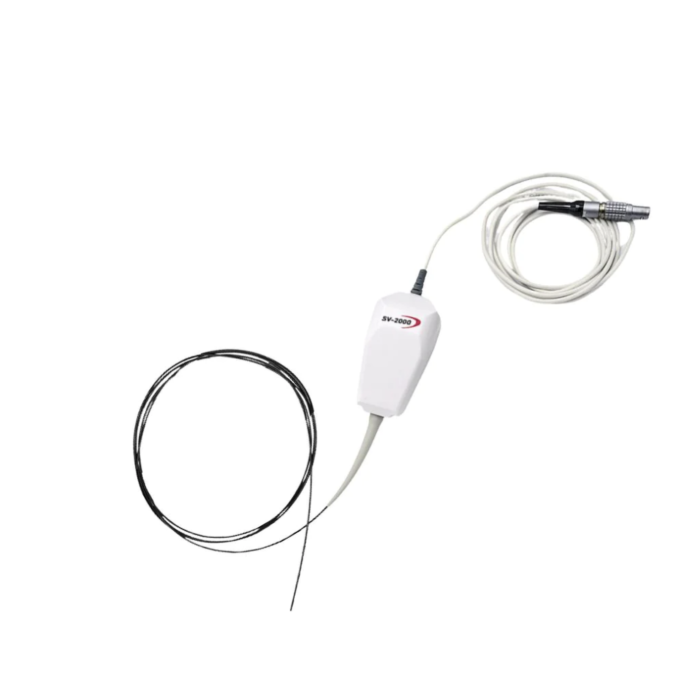

Canon Medical Components SV-2H01N 1.6 mm x 1.9 m Flexible Digital Video Borescope Probe With Illumination
SKU
SV-2H01N
Quick Overview
1.6 mm x 1.9m, 120° FOV, 400 x 400 resolution
The Canon Medical SV-2H01N (SV2H01N) 0.89 mm x 1.2 m Video Probe is an ideal inspection tool for medical device manufacturers, featuring some of the smallest diameter CMOS video borescopes available on the market. With a remarkable 0.89 mm diameter, advanced image processing, fiber optic lighting, and a 120-degree field-of-view image, this video probe is a top-performing solution for inspecting finely-machined medical components, including delicate catheters, medical tubing, and pacemaker components. Its exceptional design and performance make it a leading choice for precise and efficient medical device inspection.
Features:
- All scopes water resistant IPX7
- All scopes are plug and play with CCU or tablet
- Scope handle 1/4 x 20 thread mount
| Model | SV-2H01N 1.6 mm x 1.9m |
| Scope Assembly Diameter | 1.6 mm |
| Scope sheath length tip-to-handle mount | 1.9m |
| Cable length handle mount to CCU | 2.0m |
| Total cable and sheath length, tip to CCU | 3.9m |
| LED location | Handle mount |
| Illumination | LED coupled glass fiber bundle |
| Sensor | |
| Type | CMOS Progressive |
| Size (optical format) | 1.1 x 1.1 (1/18") |
| Pixel matrix | 400 x 400 |
| Electronc shutter | Rolling |
| Optics | |
| FOV - field of view | 120° |
| Depth of focus | 5 to 50 mm |
| Magnification - depends on viewing distance | up to 12x |
| F number | f 5.0 |
| Focal length | 0.418 mm |
| Water resistance rating | IPX7 |
| Camera head / handle mounting | 1/4 - 20 threaded socket |
| Handle dimensions | 85 x 44 x 39 mm (3.3 x 1.7 x 1.5") |
