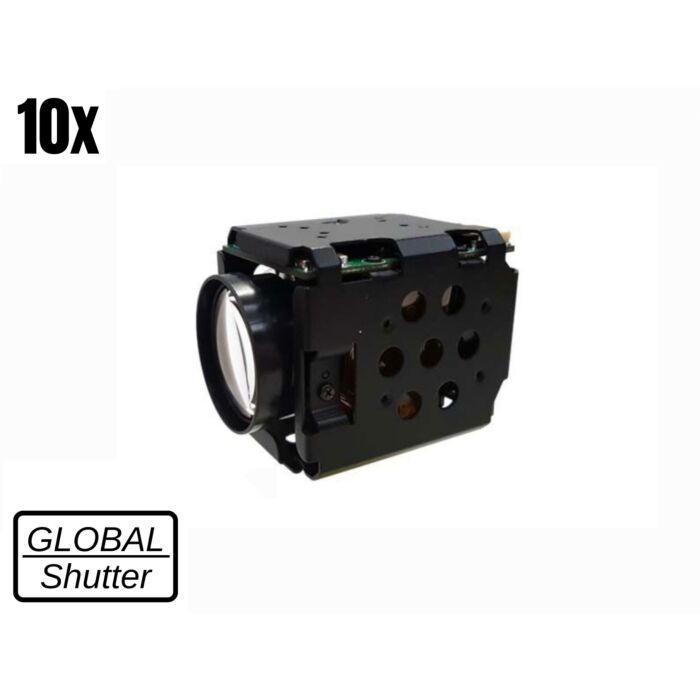

KT&C ATC-HZ5510C-LCN (ATCHZ5510CLCN) 1.58MP CMOS PTZ Camera with 10x Optical Zoom 720p LVDS Video Output
The KT&C ATC-HZ5510C-LCN is a high-performance 1.58MP PTZ (Pan-Tilt-Zoom) camera equipped with a 1/2.9" CMOS image sensor, delivering a resolution of 1456(H) x 1088(V) and supporting video output via LVDS or CVBS modes. With a maximum video resolution of 720p at 60(50)fps, it ensures clear and detailed images.
This NDAA compliant camera excels in varying lighting conditions, featuring a minimum illumination of 0.05Lux in day mode and 0.03Lux in night mode with the IR-cut filter activated. The integrated optical zoom lens (DC Iris) offers a focal length of 5.1mm to 51mm, an F-value range of F1.6(W) to F1.8(T), and a wide horizontal angle of view at 54.0° (W), making it suitable for diverse surveillance applications.
Additionally, the camera supports Auto/Manual/Interval focus control, multiple AE modes, digital image stabilization, and customizable privacy mask zones. Operating within a temperature range of -10℃ to +50℃, the KT&C ATC-HZ5510C-LCN is designed for reliability in various environments.
Features:
- Global Shutter
- Wide Dynamic Range
- Asynchronous Reset
- 3D Privacy Masking Zone
- Digital Image Stabilization
- Motion Detection
- Noise Reduction
- Image Rotation(E-Flip) and Freeze
Applications:
- Traffic
- Surveillance
- Military Applications
- Law Enforcement
- Border Patrol
- Monitoring
- Video Conferencing
- Low Vision Application
| Image Sensor | 1/2.9" CMOS |
| Effective Pixels | 1.58MP 1456(H) x 1088(V) |
| Video Output Mode | LVDS/CVBS |
| Max. Video Resolution | LVDS : 720p@60(50fps) |
| Synchronization System | Internal / External Option |
| Min.Illumination | Day mode: 0.05Lux(F1.6) Night mode: 0.03Lux(F1.6/ IR-cut filter on) DSS OFF, AGC28dB |
| S/N Rate | More than 52dB(AGC off, DSS off) |
| Lens | Type: AF Optical zoom lens(DC Iris), IR Corrective |
| Focal Length: f=5.1mm~51mm | |
| F-value: F1.6(W)~1.8(T) | |
| Angle of View: Horizontal 54.0°(W)~4.9°(T), Vertical 31.0°(W)~4.0°(T) | |
| Zoom Ratio | Optical 10x / Digital 12x |
| Focus Min.Working Distance | 0.01m(Wide) / 1.0m(Tele)~∞ |
| Focus Control | Auto/Manual/Interval/One Shot/Preset |
| AE mode | Auto/Shutter Priority/Iris Priority/Manual/Bright |
| Brightness | 0~14 |
| Manual Shutter | x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000 |
| Manual Iris | F1.6~F19, Close |
| Sense-up | Off~32fields |
| ETC | Spot AE, Slow AE |
| D&N Mode | Auto/Day(Color)/Night(BW)/External-H or L |
| White Balance | AUTO/ATW/Indoor/Outdoor/Push/Manual |
| Image Freeze | Off/On |
| Image Flip | Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Mask Zone | 16 Zones/14 mask color selectable, semi-transparency |
| Digital Image Stabilization | Yes |
| Motion Detection | 4 Zones |
| D-WDR | Off/Low/Middle/High |
| WDR | Off/Low/Middle/High |
| BLC | Off/On, Area selectable |
| HLC | Off/0~20, Color selectable |
| AGC | Max.58dB |
| Sharpness | Adjustable(0~15) |
| 3D-DNR | On/Off(1~5) |
| 2D-DNR | Auto/Manual |
| Defog | Off/Low/Middle/High |
| Preset Position | 256 position Presets(Zoom,Focus), 16Memory Presets, Custom Preset |
| Language | English,Janpanese,Russian,Spanish,German,France,Portuguese,Chinese |
| UART | Remote: RS232 TTL +5.0V(+3.3V compatible) |
| Protocol: VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection | |
| Baud rate: 2400/48009600/19200/38400/57600/115200bps | |
| UTC | - |
| Supply Voltage | 12VDC(7V to 15VDC) |
| Power Consumption | Max.5.2W / Non-working zoom&focus 3.2W |
| Dimension(mm) | 41.6X45X61.6mm |
| Weight | Approx.124g |
| Operating Temperature | -10℃~+50℃, Humidity(20~80%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~95%) |
