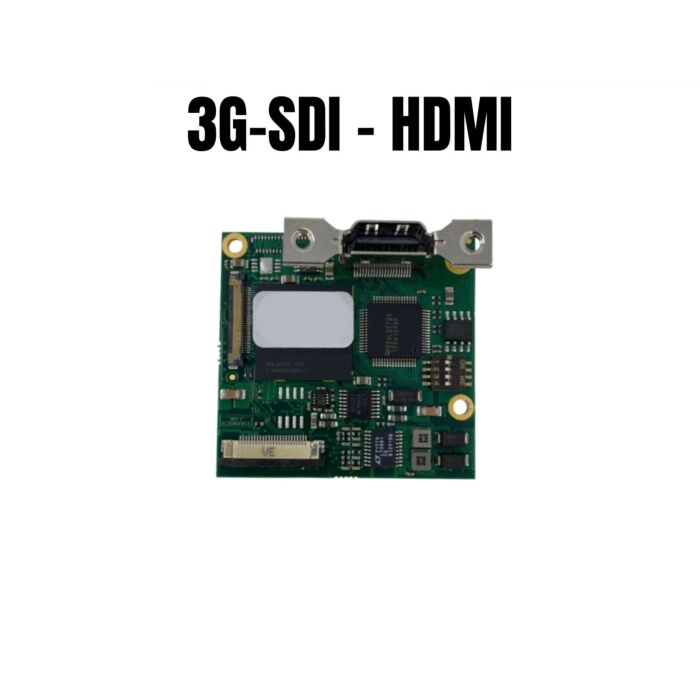

TL7050 Dual HD-SDI & HDMI Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7050 connects to the block camera’s digital 4/8 channel LVDS video input, supporting a variety of progressive and interlaced HDTV formats, including 1080p (60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, 25Hz), 1080i (60Hz, 59.94Hz, 50Hz), and 720p at multiple frame rates. The module automatically detects the video input standard for seamless operation.
This interface includes dual 3G/HD-SDI outputs compliant with SMPTE 424M / SMPTE 292M, ensuring high-quality video transmission. Additionally, it features DVI output via an HDMI connector, offering compatibility with a range of devices.
The system incorporates native digital signal processing for enhanced image quality. It also provides an analog video breakout with YPbPr and CVBS video outputs.
For flexible control, it supports RS232 and TTL level serial control interfaces, as well as a robust RS485 differential serial control interface. The device operates on a stable 12V DC regulated supply voltage. Integrated temperature monitoring with an alert function ensures optimal operating conditions.
Compatible with Sony FCB-EV9520L, FCB-EV9500L & MP3010M-EV Block Cameras, these interfaces are ideal for high-quality video output in broadcast, surveillance, and professional AV applications.
Features:
- Dual SDI & HDMI Outputs
- 4/8 Channel LVDS Input
- Automatic Video Detection
- 1080p/1080i, 720p Outputs
- Native Digital Signal Processing
- Analog YPbPr & CVBS Breakout
- RS232/TTL Serial Control
- RS485 Differential Control
- 12V DC Power Supply
- Temperature Monitoring & Alerts
Applications:
- Block Cameras
- Broadcast Video Systems
- Security Camera Systems
- Pro AV Equipment
- Camera Control Interfaces
- Surveillance & Monitoring
- Medical Imaging
| INPUTS | |
| Data | 8/4 CH. LVDS digital video (from camera) |
| Clock | LVDS (from camera) |
| Control Rx | 3.3V TTL serial control interface |
| Analog | YPbPr and CVBS video 1Vpp into 75ohms |
| OUTPUTS | |
| Control Tx | 3.3V TTL serial control interface |
| Reset | 3.3V TTL, active low |
| Power Input | 7V to 12V DC regulated (13V DC absolute maximum) for other camera blocks Power consumption (FCB-EV7500 + SDI-HDMI-EV-GM) 6W (cam motors inactive) Power consumption (FCB-EV7100 + SDI-HDMI-EV-GM) 6.2 W (cam motors inactive) Power consumption (FCB-EV5500 + SDI-HDMI-EV-GM) 5.4 W (cam motors inactive) Power consumption TL7050: 260mA @ 12V DC (typ.) Power consumption value conditions: Power 12V DC, video mode 1080p59.94 (720p59.94 for FCB-EV5500) Ambient temperature +25°C/77°F Humidity 30% |
| Operating Conditions | Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F Humidity: 20%-80% |
| Storage Conditions | Temperature (min/max): -20°C/+60°C = -4°F/140°F Humidity: 20%-80% |
