Z3 Technology FV2K-15A Lightweight Dual Camera Encoder for Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV HD Block Cameras & Boson IR Cameras
The Z3 Technology FV2K-15A is an advanced dual-channel H.265/H.264 video encoder proudly Made in the USA and NDAA compliant, engineered for seamless integration with Sony FCB-EV9520L, FCB-EV9500L, Tamron MP3010M-EV, and Boson IR block cameras. This versatile encoder is ideal for UAV, inspection, surveillance, and industrial imaging applications, delivering reliable, high-quality video processing in demanding environments.

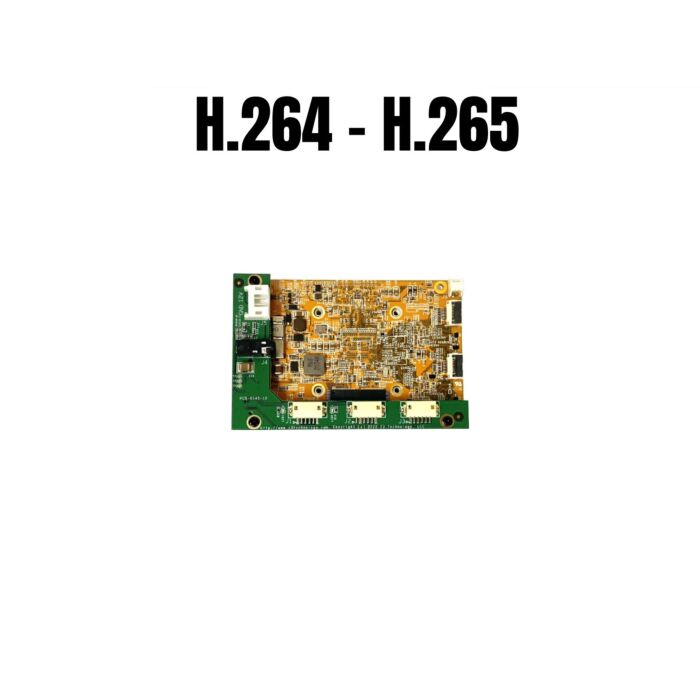

The flexible two-board hardware design (Input, Encoder, and Connector PCB) supports both visible and thermal/IR cameras, enabling simultaneous streaming and recording from multiple video sources. Designed for efficiency, the FV2K-15A consumes just 4.5 watts while streaming from two cameras—making it a perfect fit for compact and low-power edge video systems.
The Input Board offers highly adaptable digital and analog input options, supporting various camera types and signal interfaces. The built-in encoder can stream over IP networks and record directly to a microSD card, ensuring flexibility for edge or networked applications.
Preloaded with feature-rich software, the FV2K-15A offers plug-and-play functionality out of the box, simplifying system integration and reducing development time.
Features:
- Interfaces with LVDS and Composite cameras
- Dual LVDS Camera Input or LVDS and a Composite Input
- High Quality Low Latency Encoding
- Transport Camera Control Commands over IP
- ONVIF Profile S & T Compliant
- Lightweight for UAV & other weight constrained Applications
Applications:
- UAV and Drones
- Inspection
- Safety and Surveillance
- Industrial
- Customized Applications
| Visible Camera Formats | Sony FCB-EV9520, FCB-EV9500L, LVDS |
| HD and SD IR Formats | LDVS |
| Recording | To Micro SD |
| Additional Interfaces | 100 Mbps Ethernet, Micro-HDMI Passthrough, Composite Output, LVTTL UART x 2 , GPIO x 2, Micro-SD card |
| Video Codecs | H.265, H.264, MJPEG |
| Encoding Resolutions | 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA |
| Output Formats | RTP, RTSP, MPEG-2 TS, RTMP, TS-RTP, MP4, and TS-file |
| Features | • Lightweight, Low Latency, Low Power • Ability to Resize HD Camera Input to Lower Resolutions Keeping Full Field of View •SRT Modes Supported: Caller, Sender, Rendezvous & SRT Encryption • Pass Visca Camera Control Commands over IP • Easy-to-Use HTTP-Based Control Interface • ONVIF® Profile S & T* • Compatible with ZEUS® DMD-4K Video Decoder |
| Encoder Board Size | 75 x 50 x 33mm (2.95 x 1.97 x 1.30 in) |
| Encoder Board Weight | 61g (aluminum heat pipe is additional 42g) |
| Power Consumption | 12V Power, Typical power consumption is 4.5w while encoding 2 cameras with H.265 video at 1080p30 |
