Videology SCAiLX-SOM-AI SCAiLX SoM Board for Edge Vision AI

The Videology SCAiLX-SOM-AI is a NDAA compliant, compact 42x42 mm System-on-Module at the core of the SCAiLX Modular Edge AI Vision Platform, combining an NXP i.MX8M Plus quad-core processor with a 2.3 TOPS NPU for high-performance edge vision and AI workloads. It offers dual MIPI-CSI inputs, hardware H.264/H.265 encoding/decoding, rich I/O, and broad LVDS/MIPI camera compatibility, and made in the USA, making it an ideal choice for industrial vision, robotics, and smart surveillance applications requiring modular scalability and long-term reliability. Proudly designed and manufactured in the USA, the SCAiLX-SOM-AI delivers trusted performance for critical edge AI applications.

The SCAiLX-SOM-AI is engineered to interface seamlessly with SCAiLX add-on boards such as SCAILX-LVDS-2-MIPI for LVDS block cameras, SCAILX-ETH-POE and SCAILX-ETH-DC for Ethernet and power options, SCAILX-USB for USB 3.0 and UVC devices, and SCAILX-ACC26 for Hailo-8 acceleration up to 26 TOPS. This modular ecosystem approach lets engineers rapidly configure tailored edge AI vision solutions by mixing and matching camera, I/O, networking, and AI accelerator boards without redesigning the core compute module.

Features:

• NXP i.MX8M Plus 1.6 GHz Quad Cortex-A53 CPU with integrated 2.3 TOPS Neural Processing Unit for on-device AI inference
• 2 GB LPDDR4 RAM and 8 GB eMMC flash, plus microSD expansion up to 1 TB for data logging and AI model storage
• Dual MIPI-CSI sensor ports supporting up to 2x 1080p@60fps or 1x 12 MP@30fps, with hardwired H.264/H.265 encoder and decoder for efficient video streaming
• Extensive connectivity including GPIO, UART, I²C, SPI, USB 2.0/3.0, RGMII Ethernet (10/100/1000 Mbps), DSI display, and PCIe 1-lane

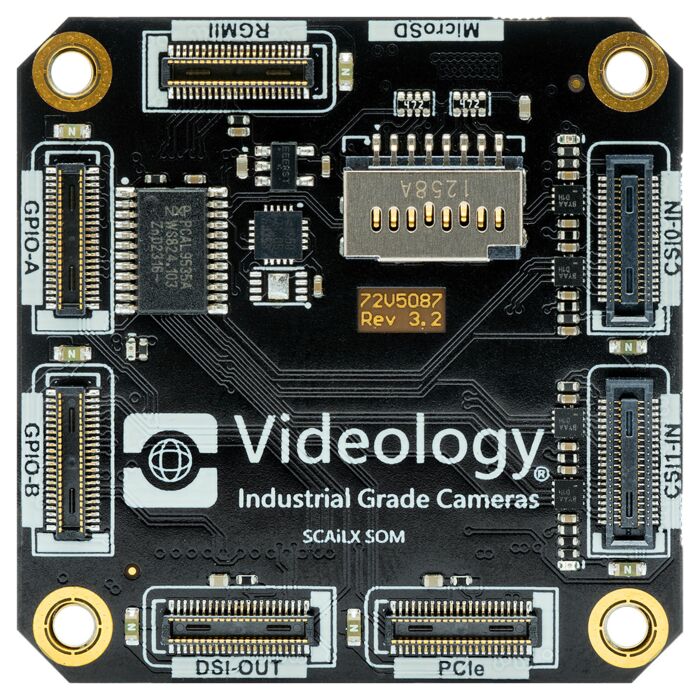

• 42x42 mm universal SoM form factor with 3 mm spacers and board-to-board connectors for stacking SCAiLX interface and camera boards
• Supports LVDS block cameras from Videology, Sony®, Tamron, and Leonardo DRS, as well as MIPI cameras including Videology board-level cameras, FLIR Boson®, and Onsemi ISP-based designs
• Embedded Linux with Yocto SDK, Docker application support, remote software update capability, and bundled AI demo applications to accelerate development
• Real Time Clock with battery backup and microSD card holder for robust field deployments and reliable time-stamped recording



Applications:

• Industrial vision systems
• Smart surveillance and security
• Robotics and autonomous platforms
• Edge analytics gateways
• AI prototyping and PoC builds
