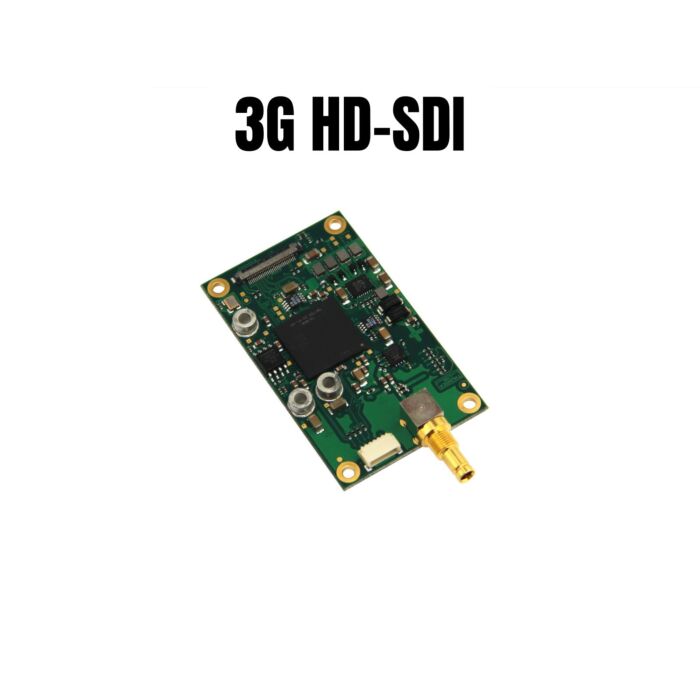

TL8651 3G/HD-SDI Output Video Transceiver with LVDS Input and RS232/TTL Control for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

The TL8651 is a sophisticated digital video processor designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV Block Cameras. It supports a 4-channel LVDS digital video input, which ensures high-quality video transfer from the camera to the processor. This module provides multiple output options including 1080p, 720p, and 1080i at a variety of refresh rates, including 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz, making it highly versatile for a range of video display applications. The TL8651 is equipped with full automatic video input standard detection, simplifying setup and ensuring compatibility with various video sources.

To ensure top-tier performance, the TL8651 integrates a native digital signal processing chain that maximizes image quality. It features 3G/HD-SDI output, fully compliant with SMPTE ST424M Level A and ST292M standards, providing a robust output option for professional broadcast and production environments. For the MP1110M-VC camera, the module also includes a CVBS loop-out connector. The processor supports both RS232 and TTL-level serial control interfaces for flexible integration into existing systems. It operates on a regulated 12V DC input, with typical power consumption of just 1.5W, and is designed to work reliably across a wide operating temperature range of -5°C to +60°C, ensuring durability even in demanding conditions. With its compact board-side mount design, the TL8651 is ideal for applications where space is limited but high-quality video processing is essential.

Features:
