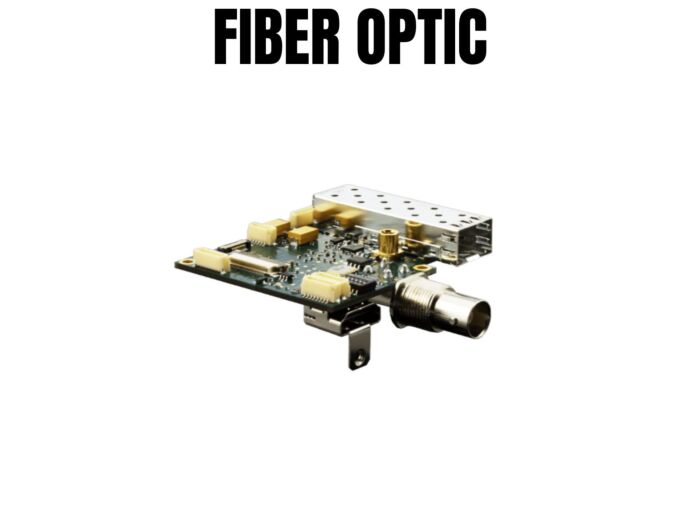

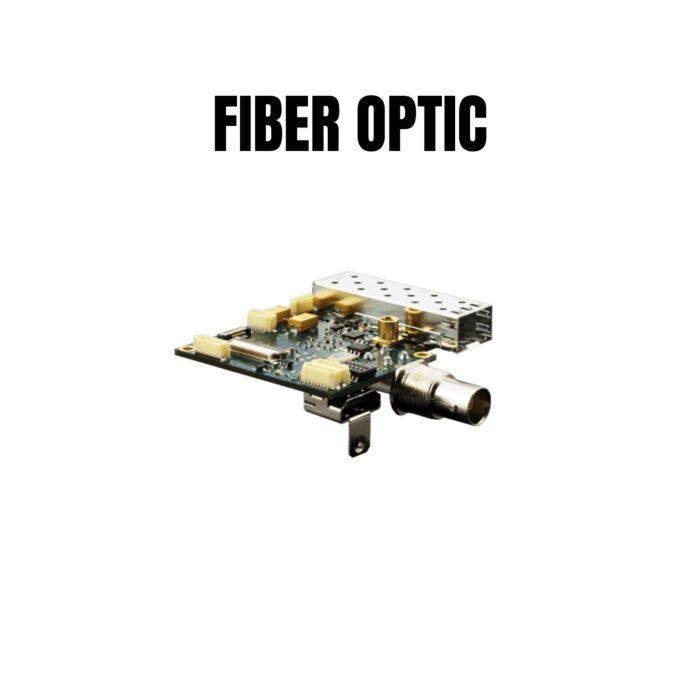

TL7076 3G/HD-SDI Fiber Optic Receiver 3Gbit/s Link Solution Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7076 Optical Receiver is a high-performance solution for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras, making it ideal for professional broadcast and AV applications. Compliant with the SMPTE 297M-2006 serial optical video standard, this unit supports both copper-based outputs and bidirectional fiber communication, allowing 3G/HD-SDI and HDMI video signals to be transmitted via a single optical fiber cable. The TL7076 features automatic video standard detection, ensuring compatibility with various video formats while maintaining seamless signal integrity. Additionally, it incorporates input signal jitter removal, which minimizes video distortion and enhances overall video quality, ensuring a stable and clear signal, even over long distances.
The TL7076 utilizes a 1550nm SFP transceiver for optical transmission, providing a reliable connection via single-mode fiber (SMF) with an LC connector and supporting transmission ranges up to 10 km. With dual serial control interfaces (RS232 or 3.3V TTL), the unit allows for full-duplex communication between the camera and the camera control unit (CCU), enabling camera remote control via the same optical fiber cable used for video transmission. This bidirectional communication ensures real-time, reliable control over cameras in live broadcast environments. The TL7076 also supports SMPTE-compliant SDI signal standards (425M, 424M, 292M, 274M, 296M), ensuring full compatibility with professional video equipment. The unit operates with a 7V to 12V DC regulated input, providing flexible power options for various setups, and is designed to perform in a wide range of environmental conditions, from -5°C to +60°C in operation.
Features:
- Optical receiver compliant to SMPTE297M-2006 serial optical 3G/HD video standard
- Automatic video standard detection
- Input signal jitter removal
- SFP transceiver λTX=1550nm, SMF/LC included
- Reclocked 3G/HD-SDI BNC + MCX coax outputs, format conversion for DVI(HDMI) RGB output
- Dual serial control interface (RS232 or 3.3V TTL)
- Supply voltage: 7V to 12V DC regulated (6V DC maximum with FCB-SE600)
- All encoded SDI signals are compliant to SMPTE425M/424M/292M/274M/296M standards
Applications:
- Long-distance video transmission
- Broadcast & live production
- Camera remote control
- Studio & field video setups
- AV system integration
- SMPTE-compliant video solutions
- Optical fiber video communication
- HD/SD-SDI signal conversion
- Professional camera systems
- High-quality video distribution
Also Available With The Following Connector Options:
- OH_BIDI_1550 TL7076 | SFP bidirectional SMF Module (Tx) 1550nm LC
Specification Camera Interface
INPUTS:
DATA LVDS digital video (from camera)
CLOCK LVDS (from camera)
CONTROL Rx 3.3V TTL serial control interface
OUTPUTS:
CONTROL Tx 3.3V TTL serial control interface
RESET 3.3V TTL, active low
OnePush AF 3.3V TTL, active low (FCB-SE600 only)
Note: Camera serial IF speed MUST be set to 9600 Baud (Sony factory default).
Power, Environment and optical Output
POWER:
Input voltage: 7V TO 12V DC regulated,
5V to 6V DC regulated must be used for FCB-SE600.
TL7075:
Power consumption when operated with FCB-EV7500
Camera in 1080p59.94 operation mode (cam motors inactive)
- All local video outputs active, fiber, BNC and HDMI cables connected: PD = 7.5W total (TL7075 PD = 4.6W)
- MCX, BNC and HDMI outputs disabled, cables disconnected: PD = 6.4W total (TL7075 PD = 3.5W)
TL7076:
- TL7076 in 3G operation mode, video standard 1080p59.94
- BNC and HDMI cables connected PD = 4.3W
Power consumption value conditions:
Power input 12V DC
Ambient temperature +25°C/77°F
Humidity 30%
OPERATING CONDITIONS:
Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
OPTICAL OUTPUT (SFP bidirectional modules) on TL7075:
For single mode fibre (9/125), LC connector, range = 10km
Optical output power -5dBm typical
On TL7075: Transmit wavelength = 1310nm
On TL7076: Transmit wavelength = 1550nm
