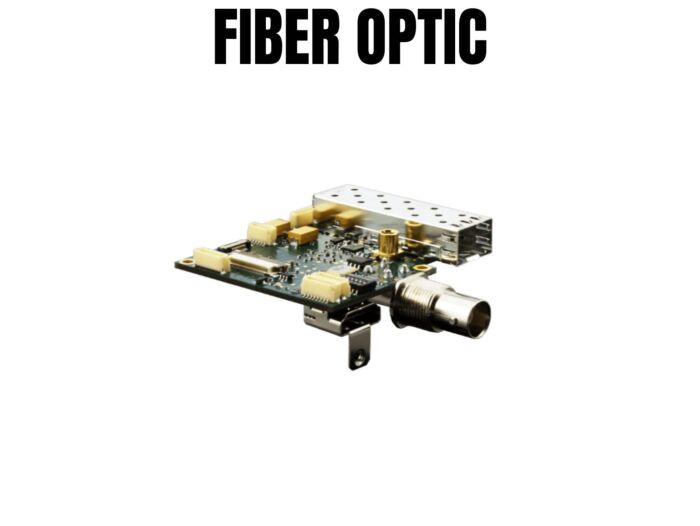

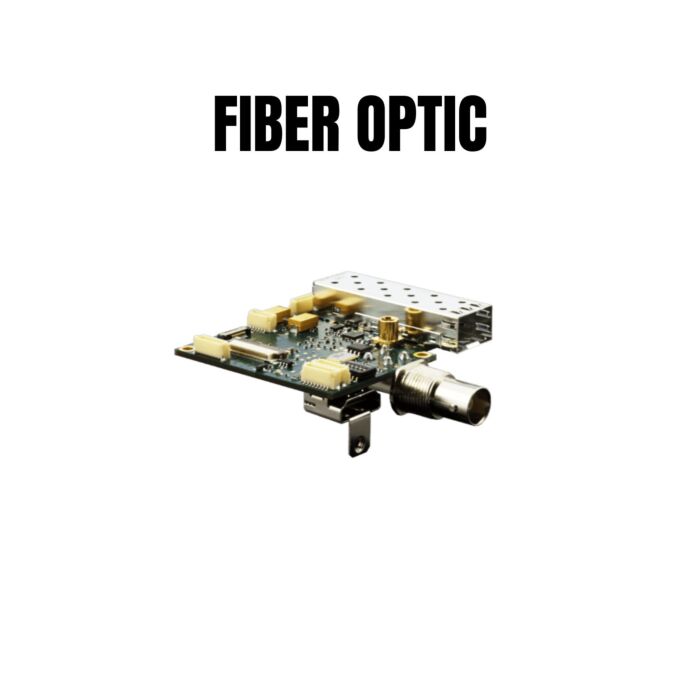

TL7075 3G/HD-SDI Fiber Optic Transmitter 3Gbit/s Link Solution Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7075 is a high-performance 3G/HD-SDI optical fiber transmission module, specifically designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras. It accepts digital LVDS video input directly from the camera and converts it into a 3G/HD-SDI optical signal, compliant with SMPTE297M-2006 standards. The TL7075 includes an SFP transceiver (λTX=1310nm, SMF/LC included), enabling long-distance, interference-free transmission over single-mode fiber (SMF). This makes it ideal for applications requiring high-quality video transport with minimal signal degradation. Additionally, the module features local 3G/HD-SDI outputs, available via BNC coax, MCX coax, and a DVI (HDMI connector), ensuring broad compatibility with a wide range of professional video equipment.
Designed for reliability and efficiency, the TL7075 operates within a regulated 7V to 12V DC power range, providing flexible power integration options. It supports high-bandwidth, low-latency video transmission, making it suitable for broadcast, surveillance, industrial inspection, and UAV applications. Its compact form factor allows for easy installation in space-constrained environments, while its optical fiber transmission capability eliminates issues related to electromagnetic interference (EMI), ensuring consistent, high-fidelity video output. Whether for real-time monitoring, remote video processing, or high-definition video distribution, the TL7075 delivers a robust and efficient solution tailored for professional-grade video transmission.
Features:
Also Available With The Following Connector Options:
- OH_BIDI_1310 TL7075 | SFP bidirectional SMF Module (Tx) 1310nm LC
Specification Camera Interface
INPUTS:
DATA LVDS digital video (from camera)
CLOCK LVDS (from camera)
CONTROL Rx 3.3V TTL serial control interface
OUTPUTS:
CONTROL Tx 3.3V TTL serial control interface
RESET 3.3V TTL, active low
OnePush AF 3.3V TTL, active low (FCB-SE600 only)
Note: Camera serial IF speed MUST be set to 9600 Baud (Sony factory default).
Power, Environment and optical Output
POWER:
Input voltage: 7V TO 12V DC regulated,
5V to 6V DC regulated must be used for FCB-SE600.
TL7075:
Power consumption when operated with FCB-EV7500
Camera in 1080p59.94 operation mode (cam motors inactive)
- All local video outputs active, fiber, BNC and HDMI cables connected: PD = 7.5W total (TL7075 PD = 4.6W)
- MCX, BNC and HDMI outputs disabled, cables disconnected: PD = 6.4W total (TL7075 PD = 3.5W)
TL7076:
- TL7076 in 3G operation mode, video standard 1080p59.94
- BNC and HDMI cables connected PD = 4.3W
Power consumption value conditions:
Power input 12V DC
Ambient temperature +25°C/77°F
Humidity 30%
OPERATING CONDITIONS:
Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
OPTICAL OUTPUT (SFP bidirectional modules) on TL7075:
For single mode fibre (9/125), LC connector, range = 10km
Optical output power -5dBm typical
On TL7075: Transmit wavelength = 1310nm
On TL7076: Transmit wavelength = 1550nm
