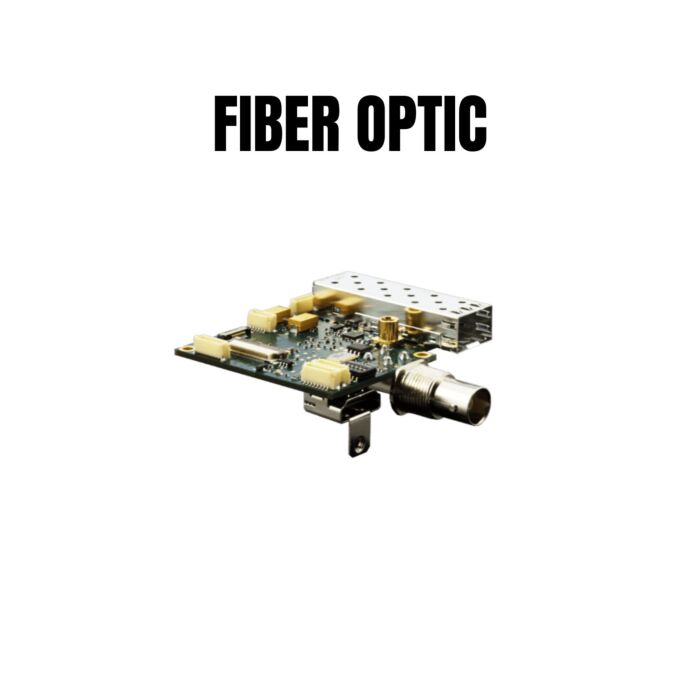

TL7071 3G/HD-SDI Fiber Optic Receiver Interface Board plus Dual Reclocked Coax for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7071 is a high-performance optical 3G/HD-SDI to DVI (HDMI) converter designed for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras . It features an SFP-compatible optical receiver that operates within the 1260nm-1620nm wavelength range and supports single-mode fiber (SMF) transmission up to 10km, ensuring reliable long-distance signal transport. The input complies with SMPTE297M-2006 serial optical 3G/HD video standards and includes automatic video standard detection, making it adaptable to various broadcast environments. Integrated input signal jitter removal ensures a stable and high-quality signal, reducing timing errors and improving performance. The TL7071 also provides format conversion for DVI (HDMI) RGB output, allowing seamless integration with standard display systems.
In addition to optical input, the TL7071 offers reclocked 3G/HD-SDI outputs via BNC and MCX connectors, fully compliant with SMPTE425M, 424M, 292M, 274M, and 296M standards, ensuring compatibility with a wide range of video equipment. It supports SMPTE425M Level A, Mapping Structure 1, providing high-fidelity signal transmission. A selectable serial control interface (RS232 or 3.3V TTL) allows flexible system integration, catering to various control system requirements. The unit operates on a 5V to 12V DC regulated power supply, making it adaptable to different power setups in professional environments. Whether for live broadcasting, video production, or signal conversion applications, the TL7071 delivers robust performance with precision signal processing.
Features:
- Optical 3G/HD-SDI input based on SFP-compatible receiver
- Optical SFP receiver 1260nm-1620nm / 10km / LC for SMF included
- Input compliant with SMPTE297M-2006 serial optical 3G/HD video standards
- Automatic video standard detection
- Input signal jitter removal
- Format conversion for DVI (HDMI) RGB output
- Reclocked 3G/HD-SDI BNC + MCX coax outputs
- 3G/HD-SDI outputs compliant with SMPTE425M/424M/292M/274M/296M
- SMPTE425M Level A, Mapping Structure 1
- Selectable serial control interface (RS232 or 3.3V TTL)
- Supply voltage: 5V to 12V DC regulated
Applications:
- Broadcast & Live Production
- Video Walls & Displays
- Medical Imaging
- Surveillance Systems
- AV Integration
- Industrial Inspection
Also Available With The Following Connector Options:
- OH-RX-1-Lce TL7071 | 3G single optical reiceiver(RX) SFP
Power, Environment and optical Input Specification
POWER:
Input operating voltage (DC IN): 5V TO 12V DC regulated
Power dissipation:
-TL7071 in 3G operation mode, video standard 1080p59.94
-BNC and HDMI cables connected
-PD = 4W
Power dissipation value conditions:
-Input operating voltage 12V DC
-Ambient temperature +25°C/77°F
-Humidity 30%
OPERATING CONDITIONS:
Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
OPTICAL INPUT (SFP module Viita RM3-S1-4103K-R or equivalent):
For single mode fibre (9/125), LC connector, wavelength = 1260nm up to 1620nm
Optical receiver sensitivity @2.97Gb/s: -18dBm minimum
