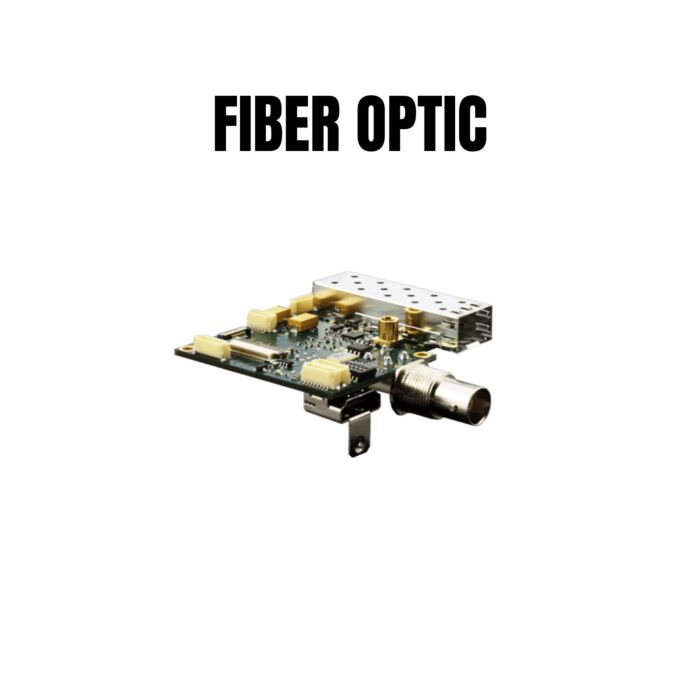

TL7070 3G/HD-SDI Fiber Optic Transmitter Interface Board plus Coax for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7070 is a high-performance 3G/HD-SDI fiber transmitter designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras, enabling long-distance video transmission with unmatched quality and reliability. Equipped with an SFP-compatible optical transmitter, the FIBER-EV-GM supports video signal transmission over single-mode fiber (SMF) up to 10 kilometers. Its native digital signal processing ensures superior image fidelity, making it ideal for professional video applications.
Key technical features include LVDS digital video input, automatic video standard detection, and compatibility with SMPTE425M/424M/292M/274M/296M standards. The unit offers a variety of outputs, including optical 3G/HD-SDI, BNC, MCX, DVI (HDMI), and analog HDTV YPbPr/CVBS. Dual serial control interfaces (RS232 or 3.3V TTL) ensure robust camera control, with full support for Sony Visca protocol.
The FIBER-EV-GM supports HDTV video standards including 1080p and 720p at multiple frame rates (60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz). With its compact design and regulated 7V to 12V DC power supply, this transmitter is engineered to excel in professional AV and broadcast environments.
Features:
- LVDS Input: Digital video from Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
- Optical Output: 3G/HD-SDI via SMF, 10km + range
- Multiple Outputs: BNC, MCX, DVI (HDMI), YPbPr, CVBS
- HDTV Standards: 1080p/720p, multiple frame rates
- Digital Processing: Native, no scaling for top image quality.
- Dual Control: RS232 or 3.3V TTL with Visca protocol
- SMPTE Compliant: SMPTE425M/424M/292M/274M/296M standards
Applications:
- Broadcasting
- Surveillance
- Medical Imaging
- Industrial
- Event Production
Also Available With The Following Connector Options:
- TL7070-Pure model without converter and receiver
- OH-TX-1-LC TL7070 | 3GSDI Optical Fiber Converter (TX) SFP
| INPUTS | |
| Data | LVDS digital video (from camera) |
| Clock | LVDS (from camera) |
| Control Rx | 3.3V TTL serial control interface |
| Analog | YPbPr and CVBS video 1Vpp into 75ohms |
| OUTPUTS | |
| Control Tx | 3.3V TTL serial control interface |
| Reset | 3.3V TTL, active low |
| OnePushAF | 3.3V TTL, active low (FCB-SE600 only) |
| Power | Power consumption value conditions: Power input 12V DC Ambient temperature +25°C/77°F Humidity 30% |
| Operating Conditions | Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F Humidity: 20%-80% |
| Storage Conditions | Temperature (min/max): -20°C/+60°C = -4°F/140°F Humidity: 20%-80% |
| Optical Output (SFP module Viita RM3-S1-4103K-T or equivalent): | For single mode fibre (9/125), LC connector, wavelength = 1310nm, range = 10km Optical output power -5dBm typical |
