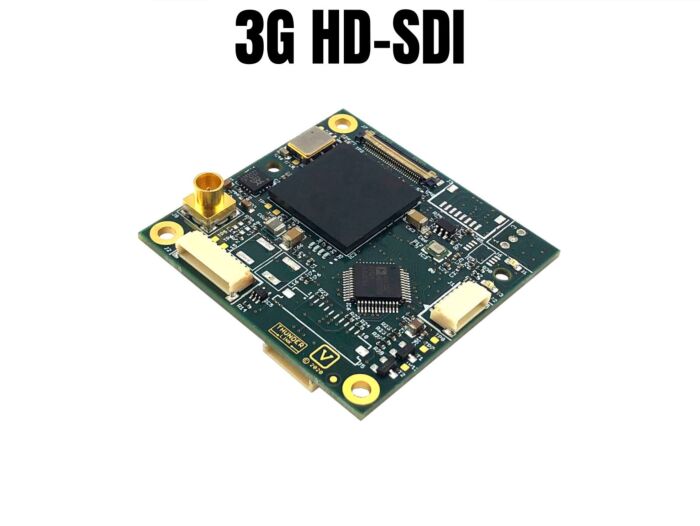

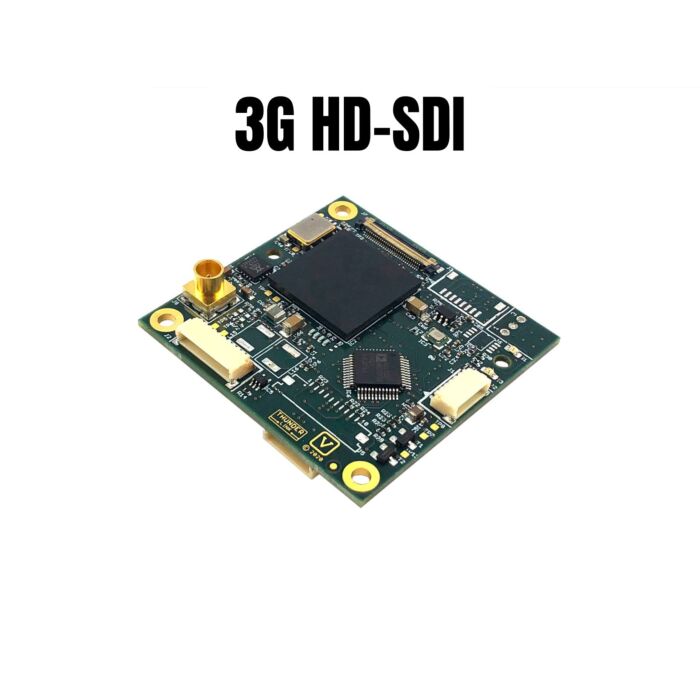

TL7055 3G-SDI + Analog YPbPr Output Video Transmitter with LVDS Input and RS232 Control for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

The TL7055 is a high-performance, compact video transmitter designed to provide both 3G-SDI and analog YPbPr outputs from an LVDS input, ideal for a variety of professional applications such as industrial, medical, security, and law enforcement. This transmitter supports full HD video output from up to 1920x1080p at 60fps, ensuring superior video quality for demanding environments. It is fully SMPTE-compliant with tri-level sync on Y, offering support for video formats including 1080p60/59.94/50, 720p60/59.94/50, as well as 1080i60/59.94/50 and 720p30/29.97/25 in SDI mode. This broad compatibility ensures seamless integration with a variety of cameras and video systems. The TL7055 also features an RS232-level serial interface for camera control, allowing transparent, full-duplex communication, making it an ideal solution for remote control of cameras in real-time applications.

The device is designed with versatility and ease of integration in mind, featuring a small form factor and operating in a wide temperature range from -10°C to +60°C. The TL7055 operates with a 9V to 12V DC regulated power supply and consumes just 5.6W when connected to camera, ensuring efficient power usage. It is fully RoHS and UL/UR compliant, meeting global safety and environmental standards. Additionally, the TL7055 comes with the TLCK-B6 cable kit, which includes everything needed for easy integration: a 30-wire micro-coaxial cable for LVDS input, a 10-wire cable for power supply and serial control, and an 8-wire cable for analog YPbPr video output. This makes the TL7055 an excellent choice for those requiring reliable video transmission and camera control in mission-critical environments.

Features:

• Native video output up to 1920x1080p @ 60fps
• Supports Sony FCB-EV9520L/FCB-EV9500L/Tamron MP3010M-EV
• SMPTE-compliant tri-level sync on Y
• Video format support:
  • 1080p60 / 59.94 / 50 / 30 / 29.97 / 25 Hz
  • 720p60 / 59.94 / 50
  • SDI only: 1080i60 / 59.94 / 50
  • 720p30 / 29.97 / 25
• RS232-level serial camera control interface
• VISCA-controlled Embedded Test Pattern Generator
• Supply voltage: 9V to 12V DC regulated
• RoHS and UL/UR compliant
• TLCK-B6 Cable Kit included

Applications:

• Industrial applications
• Medical systems
• Security systems
• Law enforcement
