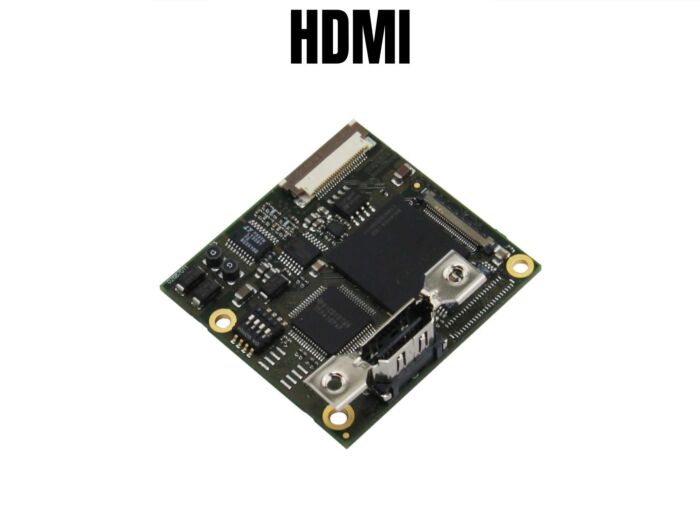

TL7052 3G/HD DVI (HDMI) Output Video Transceiver with LVDS Input for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7052 is a high-performance 3G/HD DVI (HDMI) Output Video Transceiver, designed specifically to support Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV Block Cameras. This versatile transceiver supports 4 or 8-channel LVDS digital video input, allowing seamless integration with these cameras for high-quality video transmission. The TL7052 outputs video at multiple resolutions, including 1080p and 720p at frame rates of 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz, and 1080i at 60Hz, 59.94Hz, and 50Hz, ensuring compatibility with a wide range of video standards and ensuring excellent video clarity. The device features full automatic video input standard detection, which adjusts for optimal video output without manual configuration, providing a reliable, plug-and-play solution.
Designed for superior image quality, the TL7052 utilizes a native digital signal processing chain, ensuring the best possible video output. The transceiver also provides analog breakout for YPbPr and CVBS video signals from the camera, expanding its versatility in integrating into existing systems. Video is output through a 3G/HD DVI interface via an HDMI connector, providing robust signal transmission for professional and industrial-grade video systems. The unit also supports RS232 and TTL serial control interfaces, allowing for straightforward integration with external control systems and offering full control over the connected camera. Additionally, the TL7052 includes temperature monitoring with an alert function to prevent overheating and maintain optimal operating conditions, making it suitable for a wide temperature range (-5°C to 60°C) and varying environmental conditions. With flexible power input options (5V or 12V DC regulated), the TL7052 ensures efficient energy consumption, with power usage varying from 3.96W to 4.56W, depending on the camera model used, while maintaining reliable operation even in demanding applications.
Features:
- Supports Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV Block Cameras
- Digital 4Ch./8Ch. LVDS video input from camera
- 1080p and 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz
- 1080i output at 60Hz, 59.94Hz, and 50Hz
- Full automatic video input standard detection
- 3G/HD DVI video output over HDMI connector
- Native digital signal processing chain for best image quality
- Breakout of camera analog HDTV YPbPr and CVBS video
- RS232 and TTL level serial control interface
- Supply voltage 5V or 12V DC regulated
- NEW: Temperature monitoring with alert function
Applications:
- Video Surveillance Systems
- Broadcasting
- Industrial Camera Systems
- Medical Imaging
- Broadcasting and Streaming
- Camera Control Systems
- Surveillance Monitoring Stations
Specification Camera Interface
INPUTS:
DATA 8/4 CH. LVDS digital video (from camera)
CLOCK LVDS (from camera)
CONTROL Rx 3.3V TTL serial control interface
ANALOG YPbPr and CVBS video 1Vpp into 75 ohms
OUTPUTS:
CONTROL Tx3.3V TTL serial control interface
RESET3.3V TTL, active low
Power and Environment
POWER INPUT:
5V DC regulated (5.8V DC absolute maximum) when using FCB-SE600
7V to 12V DC regulated (13V DC absolute maximum) for other camera blocks
Power consumption (FCB-EV7500 + TL7052) 4.2W (cam motors inactive)
Power consumption (FCB-EV7100 + TL7052) 4.56 W (cam motors inactive)
Power consumption (FCB-EV5500 + TL7052) 3.96 W (cam motors inactive)
Power consumption value conditions:
Power 12V DC, video mode 1080p59.94 (720p59.94 for FCB-EV5500)
Ambient temperature +25°C/77°F
Humidity 30%
OPERATING CONDITIONS:
Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
