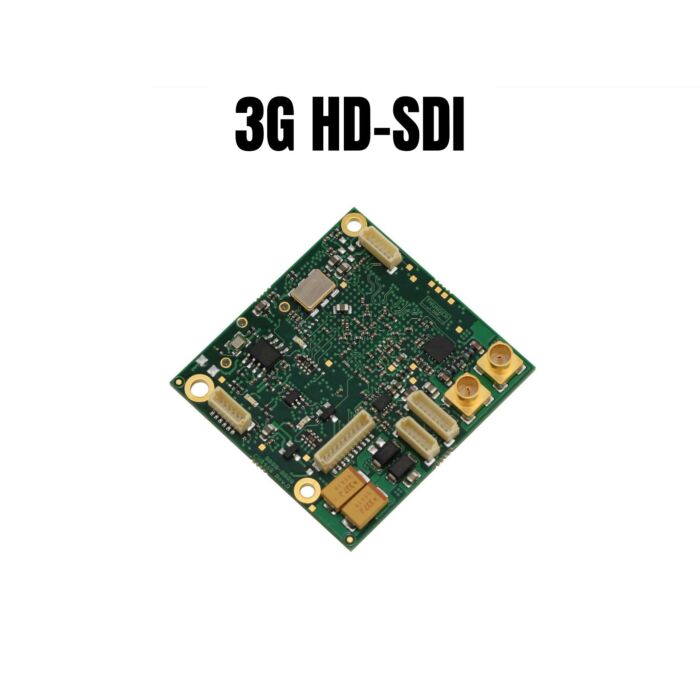

TL7051 Dual 3G/HD-SDI Interface Board for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras
The TL7051 is a high-performance digital video interface designed for seamless integration with Sony FCB-EV9520L, FCB-EV9500L and Tamron MP3010M-EV block cameras. Featuring dual 3G/HD-SDI outputs compliant with SMPTE424M and SMPTE292M, it ensures high-definition transmission with industry-standard compatibility. The TL7051 supports digital 4-channel and 8-channel LVDS video inputs, enabling direct digital signal processing for superior image quality.
With full automatic video input standard detection, the TL7051 delivers 1080p resolution at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz, and 25Hz, as well as 720p and 1080i outputs at multiple frame rates for flexible broadcasting and imaging applications. It also supports breakout of analog HDTV YPbPr and CVBS video, providing additional versatility.
The device is equipped with RS232 and TTL serial control interfaces, alongside a robust RS485 differential serial control for reliable, long-distance communication. Designed for industrial and professional applications, the TL7051 operates on a regulated 8V to 12V DC power supply and features temperature monitoring with an alert function for enhanced operational safety.
Features:
- Dual 3G/HD-SDI outputs compliant to SMPTE424M / SMPTE292M
- Supports Sony FCB-EV9520L/FCB-EV9500L/Tamron MP3010M-EV
- Digital 4Ch./8Ch. LVDS video input from camera
- 1080p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz and 25Hz
- 720p output at 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz and 25Hz
- 1080i output at 60Hz, 59.94Hz and 50Hz
- Full automatic video input standard detection
- Native digital signal processing chain for best image quality
- Breakout of camera analog HDTV YPbPr and CVBS video*
- RS232 and TTL level serial control interface
- Robust RS485 differential serial control interface
- Supply voltage 8V to 12V DC regulated
- Temperature monitoring with alert function
Applications:
- Surveillance & Security
- Industrial & Inspection Systems
- Medical Imaging
- Unmanned & Remote-Controlled Systems
- Military & Defense Scientific & Research Applications
Specification Camera Interface
NPUTS:
DATA 8/4 CH. LVDS digital video (from camera)
CLOCK LVDS (from camera)
CONTROL Rx 3.3V TTL serial control interface
ANALOG YPbPr and CVBS video 1Vpp into 75 ohms
OUTPUTS:
CONTROL Tx3.3V TTL serial control interface
RESET3.3V TTL, active low
Power and Environment
POWER INPUT:
8V to 12V DC regulated (13V DC absolute maximum)
Power consumption (FCB-EV7520 + TL7051) 4.56W (cam motors inactive)
Power consumption value conditions:
Power 12V DC, video mode 1080p59.94
Ambient temperature +25°C/77°F
Humidity 30%
OPERATING CONDITIONS:
Ambient temperature (min/max): -5°C/+60°C = 23°F/140°F
Humidity: 20%-80%
STORAGE CONDITIONS:
Temperature (min/max): -20°C/+60°C = -4°F/140°F
Humidity: 20%-80%
