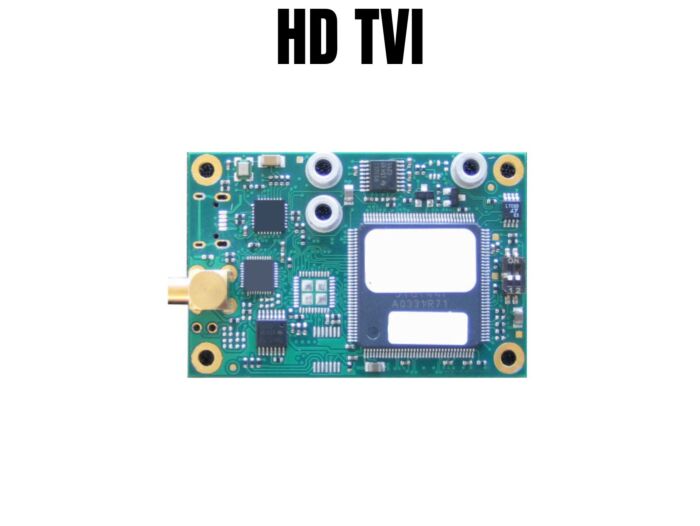

SL4651 Analog HD Video Transmitter with LVDS Interface with Right Angle MCX for Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras

The SL4651 is a compact and high-performance analog HD video transmitter, designed for seamless integration with HD-TVI and AHD cameras, particularly Sony FCB-EV9520L, FCB-EV9500L & Tamron MP3010M-EV HD Block Cameras. It supports high-definition resolutions up to 1080p at 30fps, ensuring superior video quality. The device utilizes an MCX 75 Ohm coaxial connector for reliable video transmission and features a seamless LVDS interface for camera integration.

For camera control, the SL4651 offers flexible options with RS232, 3.3V CMOS (LVTTL compatible), or an optional RS485 interface. The transmitter operates with a regulated power supply of 9V to 12V DC, making it versatile for various installations. Compliant with RoHS and UL/UR standards, it is ideal for use in demanding environments such as industrial, medical, security, and law enforcement applications.

The product includes Cable Kit, simplifying installation and connectivity.

Features:

• HD-TVI/AHD output up to 1080p30
• LVDS interface for Zoom Cameras
• MCX 75 Ohm coaxial connectors
• RS232/3.3V CMOS/RS485 camera control
• CVBS loop-out (camera dependent)
• 9V-12V DC regulated power
• RoHS and UL/UR compliant
• TLCK-B-0200 Cable Kit included
• Coaxial Connector Options:
  SL4561-D-ST, Straight DIN7A (MOQ)
  SL4561-D-RA, Right angle DIN7A (MOQ)
  SL4561-M-ST, Straight MCX (MOQ)
  SL4561-M-RA, Right angle MCX (standard version)

Applications:

• HD video transmission
• Industrial systems
• Medical imaging
• Security and surveillance
• Law enforcement
