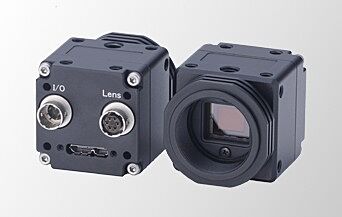

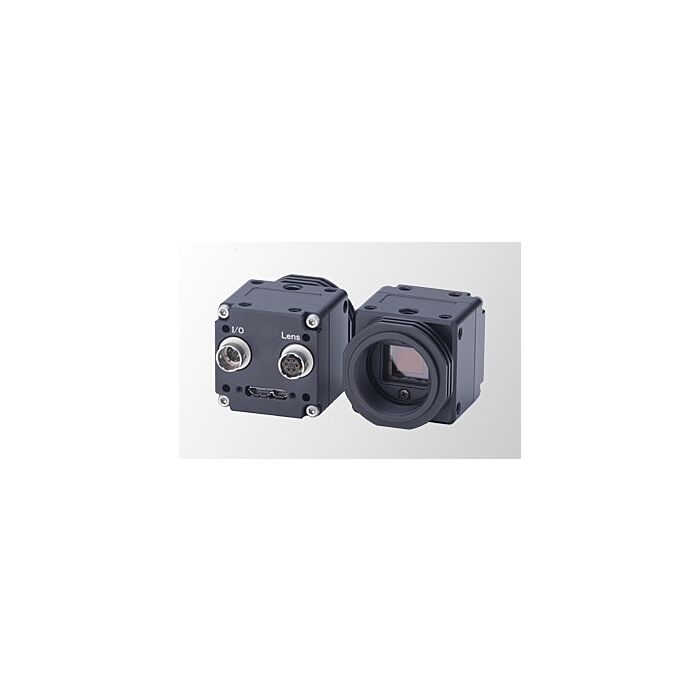

Omron STC-SCS500U3V-LCNT – 5MP Sony IMX264 Color Global Shutter USB3 Vision Camera (LensConnect Compatible)
The Omron STC-SCS500U3V-LCNT is a high-performance 5MP color area scan camera built around the Sony IMX264 global shutter CMOS sensor. Delivering up to 35.8 fps via USB3 Vision, this model is ideal for machine vision applications requiring accurate color reproduction and distortion-free imaging.
This variant includes compatibility with CBC’s LensConnect system, enabling simplified lens connectivity and improved reliability in industrial environments.
With a compact 35 mm form factor and C-mount interface, the STCSCS500U3VLCNT integrates easily into factory automation, inspection, and embedded vision systems.
Key Features:
- 5MP resolution (2448 × 2048)
- Sony IMX264 color global shutter CMOS sensor
- 35.8 fps high-speed imaging
- USB3 Vision 1.0.1 interface
- Compatible with CBC LensConnect lenses
- BayerRG color output formats
- ROI and full-frame scanning
- IR cut filter for accurate color imaging
- Wide exposure range (27.2 µs to 56 sec)
- Compact industrial housing (35 mm)
Industrial Applications:
- Machine Vision
- Factory Inspection
- Robotics
- Color Sorting
- Metrology
- Automation Systems
Why Engineers Choose This Model
The STC-SCS500U3V-LCNT combines high-resolution color imaging with the proven performance of Sony’s IMX264 global shutter sensor, ensuring accurate capture of moving objects without distortion.
LensConnect compatibility provides a reliable and simplified optical interface, reducing integration complexity in industrial systems. USB3 Vision support ensures seamless deployment with modern industrial PCs and embedded platforms.
This makes it an excellent choice for applications requiring both color accuracy and high-speed capture.
FAQ
What sensor does STC-SCS500U3V-LCNT use?
Sony IMX264 global shutter CMOS sensor.
Is this a color camera?
Yes, it outputs BayerRG color formats for accurate color imaging.
Does it support LensConnect lenses?
Yes, it is compatible with CBC’s LensConnect system.
What interface does this camera use?
USB3 Vision 1.0.1.
What applications is it best for?
Color inspection, sorting, robotics, and automation systems.
| Product Model | STC-SCS500U3V-LCNT |
|---|---|
| Camera Type | Area Camera |
| Resolutions | 5MP |
| Color / Monochrome | Color |
| Effective Pixels | 2,448 (H) x 2,048 (V) |
| Frame Rate | 35.8 fps |
| Interface | USB3.0 |
| Protocol | USB3 Vision 1.0.1 |
| Power Supply | External power (+8.0 to +24 Vdc) |
| Power Consumptions | Less than 7.1 W (with LensConnect lens) |
| Operational Temperature | Lower limit: 0°C (Environmental temperature) / Upper limit: +71°C (Temperature sensor on camera) |
| Storage Temperature | Lower limit: -30°C (Environmental temperature) / Upper limit: +70°C (Environmental temperature) |
| Image Sensor | |
| Image Sensor | SONY IMX264 |
| Shutter Type | Global Shutter |
| Optical Size | 2/3" |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Mechanical | |
| Dimensions | 35 (W) x 35 (H) x 41.5 (D) mm |
| Weight | 35 (W) x 35 (H) x 41.5 (D) mm |
| Lens Mount | C Mount |
| Optical Filter | IR cut filter on it |
| Interface | |
| Connector | USB3.0 micro B x 1 |
| Power / Signal Connector | Power/IO: HR10A-7R-6PB (Hirose) or equivalent x 1 |
| Lens | HR10A-7R-6S (Hirose) or equivalent x 1 |
| Functions | |
| Scanning Mode | Full scanning / ROI |
| Operational Mode | Edge preset trigger / Pulse width trigger / Start stop trigger / Free-run |
| Image Pixel Format | BayerRG8 / BayerRG10 / BayerRG12 / BayerRG10Packed / BayerRG12Packed |
| Exposure Time | 27.2 µseconds to 56 seconds |
| Analog Gain | 0 to 19.2 dB |
| Digital Gain | x1 to x2 |
| Gamma | 0.1 to 4.0 |
| Binning | N/A |
| Decimation | x2 horizontal and vertical individually / Off |
| Image Flip | Vertical flip / Horizontal flip / Vertical and horizontal flip / Off |
| Defective Pixel Correction | Up to 1,080 pixels |
| Save User Settings | Support (Eight settings) |
| White Balance | Auto exposure / Auto gain |
| FFC (Flat Filed Correction) Function | N/A |
| Auto Control Function | Auto / Manual / Push to set white balance |
| Chunk Function | Support |
| Event Function | Support |
| PTP Function (IEEE1588) | N/A |
